This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.95 inches by 37.8 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

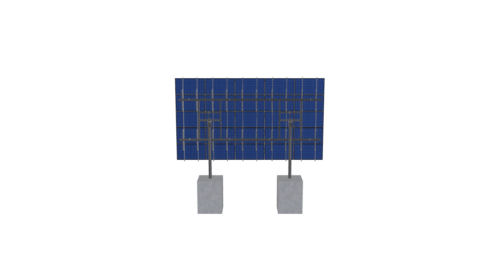

See 3D Model Here
Hardtke – Lavina – RevA – Jb
$8,058.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.95 inches by 37.8 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

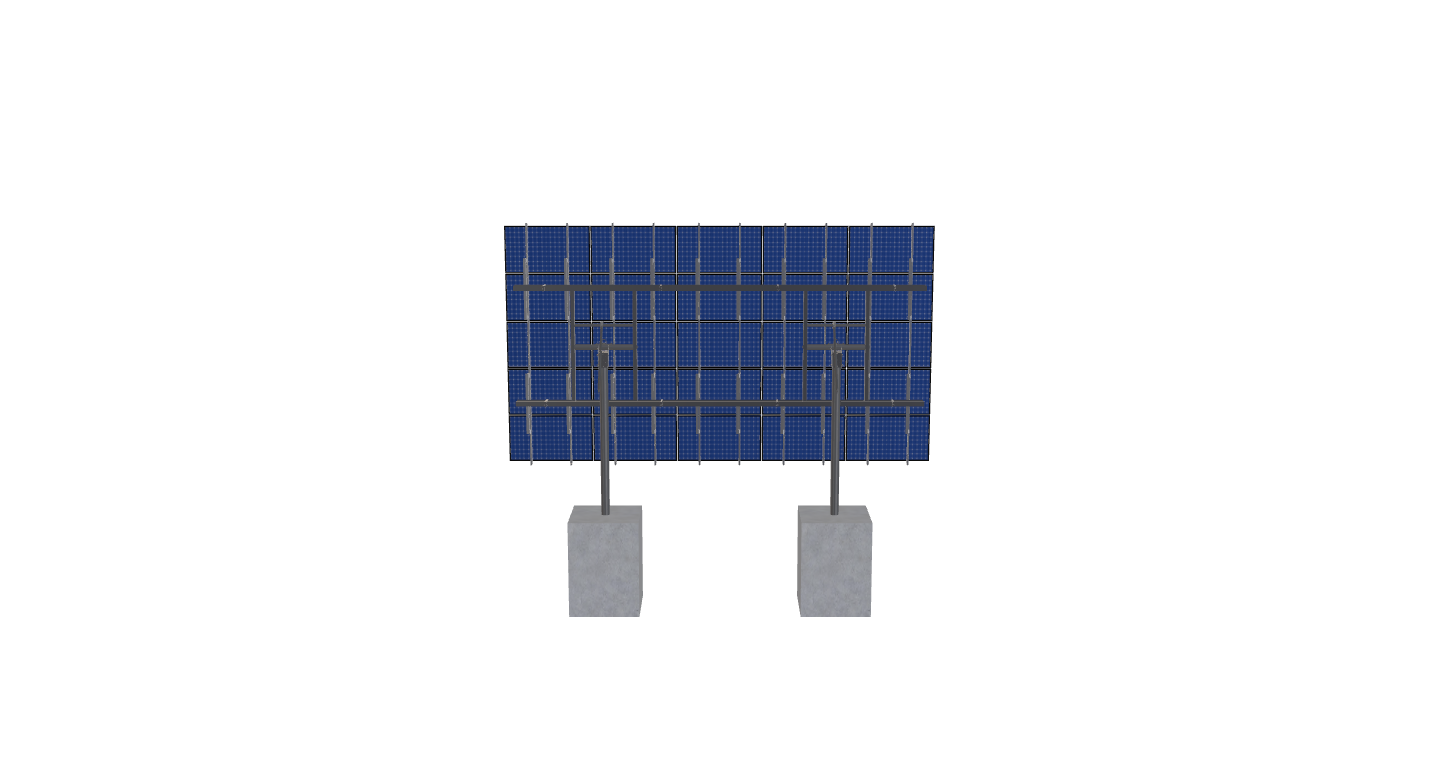

See 3D Model Here
Additional information
| Weight | 1549.7 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-24-L-5HX5W-22F2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.98 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 90.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 445.17 |
| ARRAY WIDTH | 27.90 |
| ARRAY HEIGHT | 15.96 |
| RAIL LENGTH | 191.50 |
| MODULE LENGTH | 65.95 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 18.85 |
| PROJECTED PANEL HEIGHT | 15.75 |
| PROJECT ID | HARDTKE, -, LAVINA, -, REVA, -, JB |
| SITE ADDRESS | 408, HOMESTEAD, RD, LAVINA, MT, 59046, USA |
| MODULE WIDTH | 37.80 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8058.48 |
| TOTAL WEIGHT | 1549.70 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/4cd05b3b-c445-4841-ae99-20552a4f4cab.pdf |
|
| ID | 6416.00 |
| 3D Solar link |
