HD Stanchion 20240530 4×6

$9,586.45

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.9 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

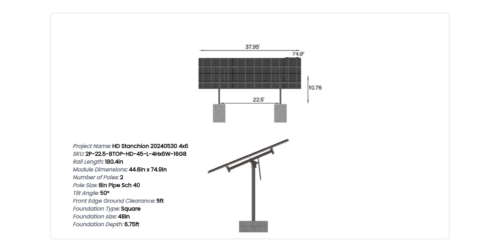

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-8TOP-HD-45-L-4Hx6W-16G8 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.9 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

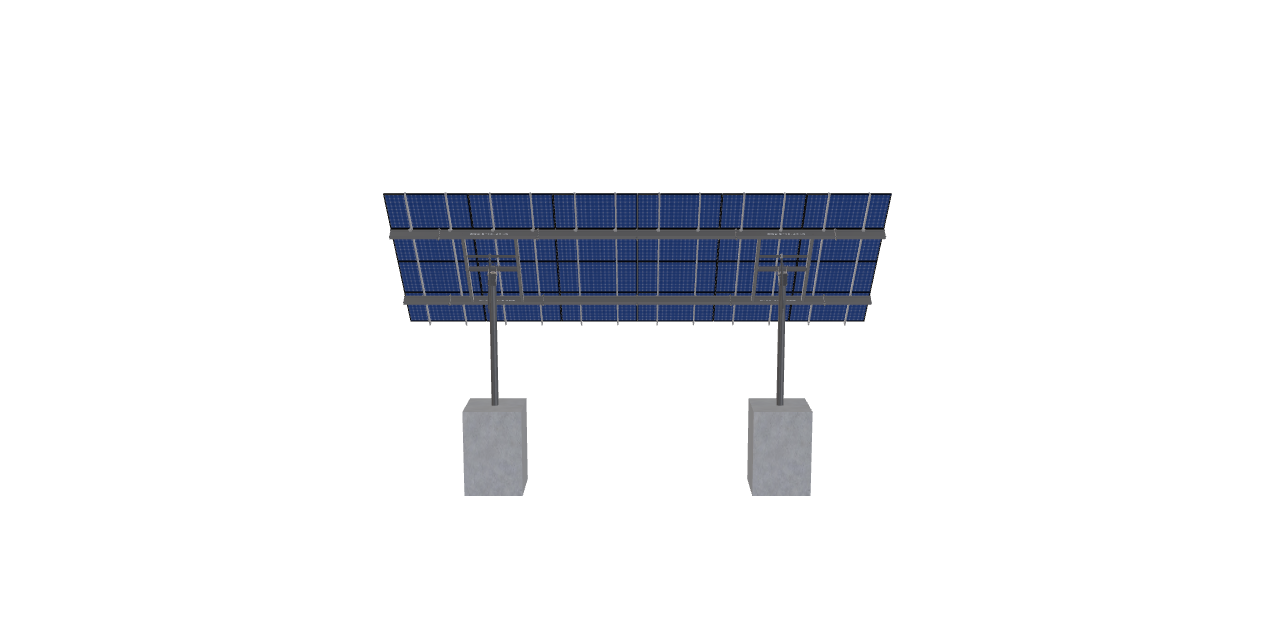

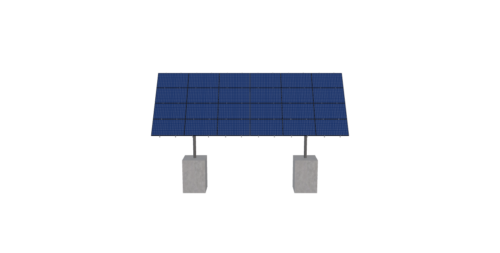

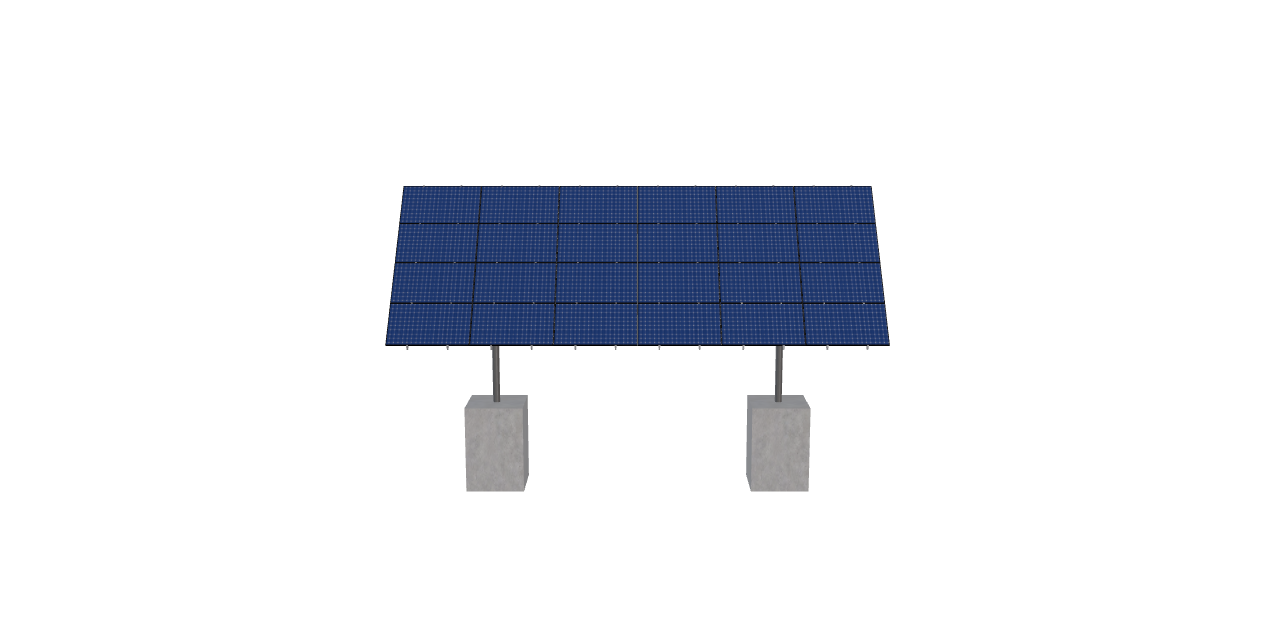

See 3D Model Here

Additional information

Weight 1767.5 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-45-L-4HX6W-16G8

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

10.76

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

50.00

CANTILEVER

450.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

570.51

ARRAY WIDTH

37.95

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

74.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

37.50

GROUND TO TOP

16.45

PROJECTED PANEL HEIGHT

11.39

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

63.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

HD, STANCHION, 20240530, 4X6

SITE ADDRESS

CCX4+VF, LUPFER, MT, 59937, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

9586.45

TOTAL WEIGHT

1767.50

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/552ed16b-ee15-458d-b2ff-3e4a847c6682.pdf

ID

6859.00
