Hills Haulin

$7,778.59

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 44.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

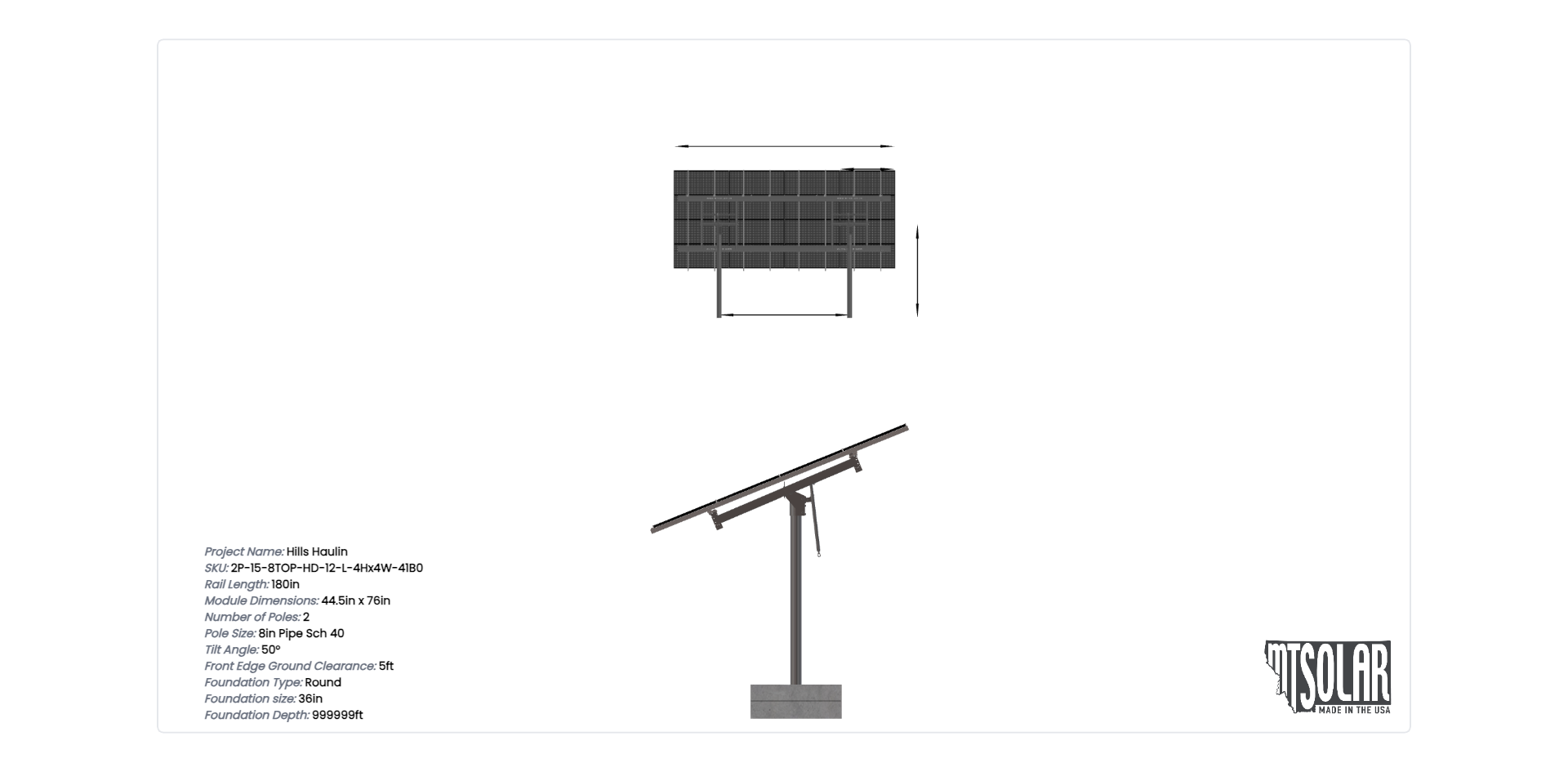

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-8TOP-HD-12-L-4Hx4W-41B0 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 44.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1406.02 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-8TOP-HD-12-L-4HX4W-41B0

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

10.75

WING SPAN

12.00

MAX FOUNDATION DEPTH

999999.00

TILT ANGLE

50.00

CANTILEVER

294.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

385.00

ARRAY WIDTH

25.67

ARRAY HEIGHT

15.00

RAIL LENGTH

180.00

MODULE LENGTH

76.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

24.50

GROUND TO TOP

16.43

PROJECTED PANEL HEIGHT

11.36

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

HILLS, HAULIN

SITE ADDRESS

53702, OIL, WELL, RD, PUNTA, GORDA, FL, 33955, USA

MODULE WIDTH

44.50

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

7778.59

TOTAL WEIGHT

1406.02

TOTAL PALLETS

2.00
