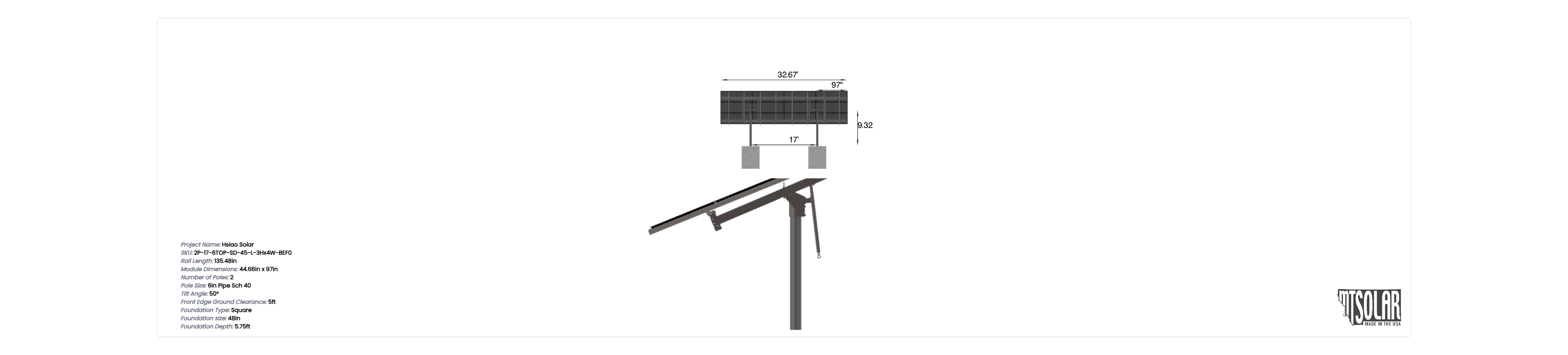

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97 inches by 44.66 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

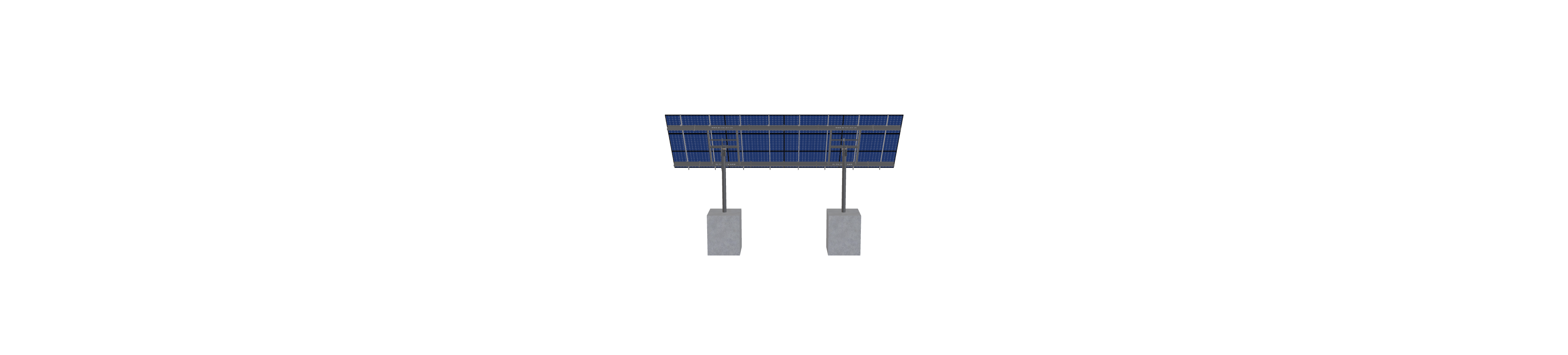

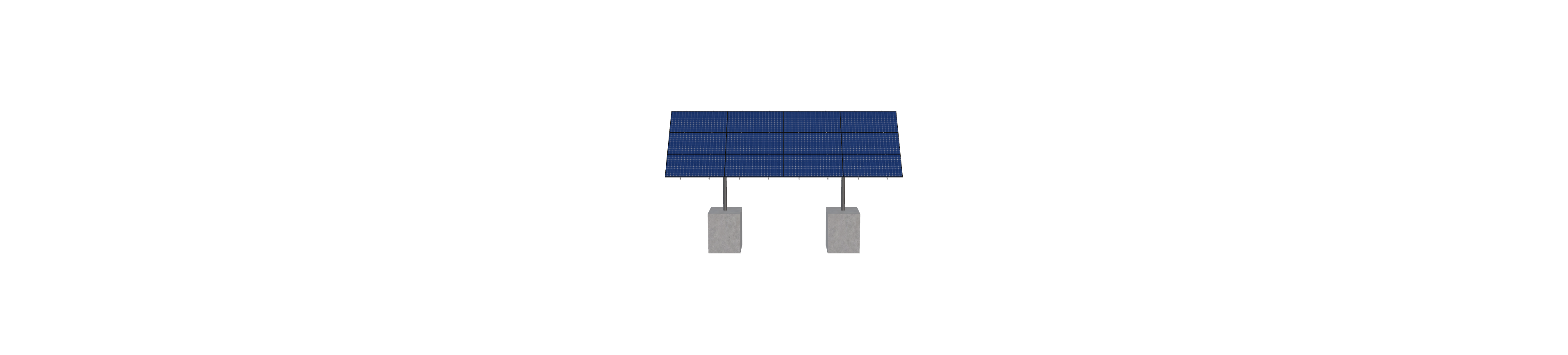

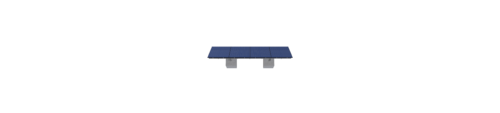

See 3D Model Here
Hsiao Solar
$7,493.25
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97 inches by 44.66 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1283.68 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-45-L-3HX4W-BEF0 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.32 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 368.81 |
| ARRAY WIDTH | 32.67 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.48 |
| MODULE LENGTH | 97.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 13.65 |
| PROJECTED PANEL HEIGHT | 8.65 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | WEBER, HSIAO |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | HSIAO, SOLAR |
| SITE ADDRESS | 146, DOW, RD, HOLLIS, NH, 03049, USA |
| MODULE WIDTH | 44.66 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7136.43 |
| TOTAL WEIGHT | 1283.68 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/16dec295-65aa-42ac-b526-4718dfbe3db2.pdf |
|
| ID | 10647.00 |
| 3D Solar link |
