This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

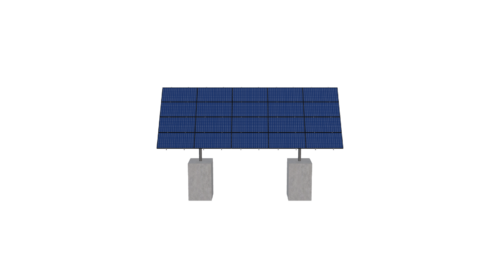

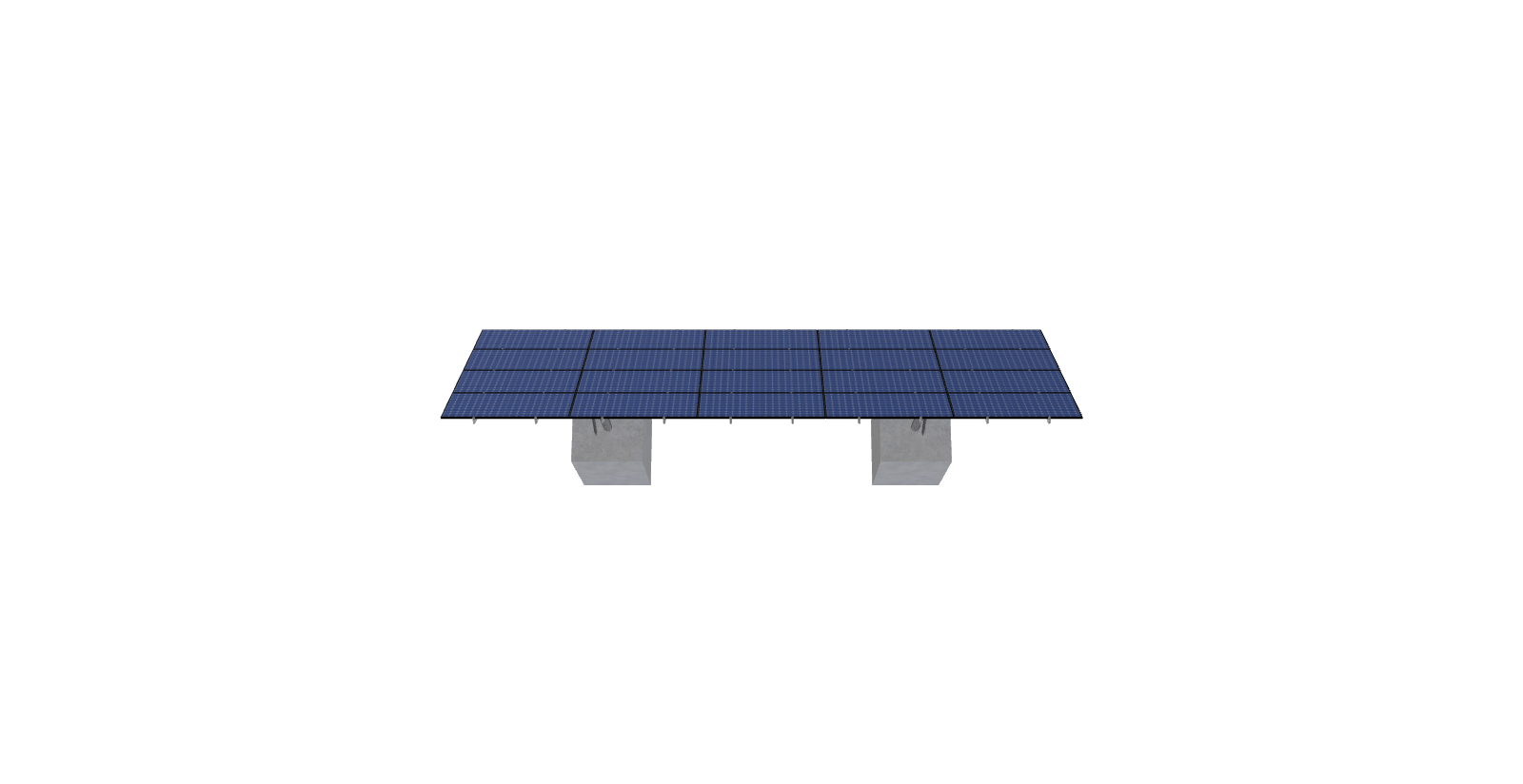

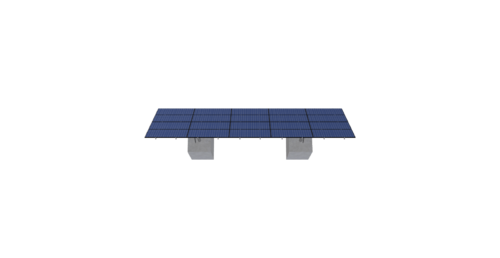

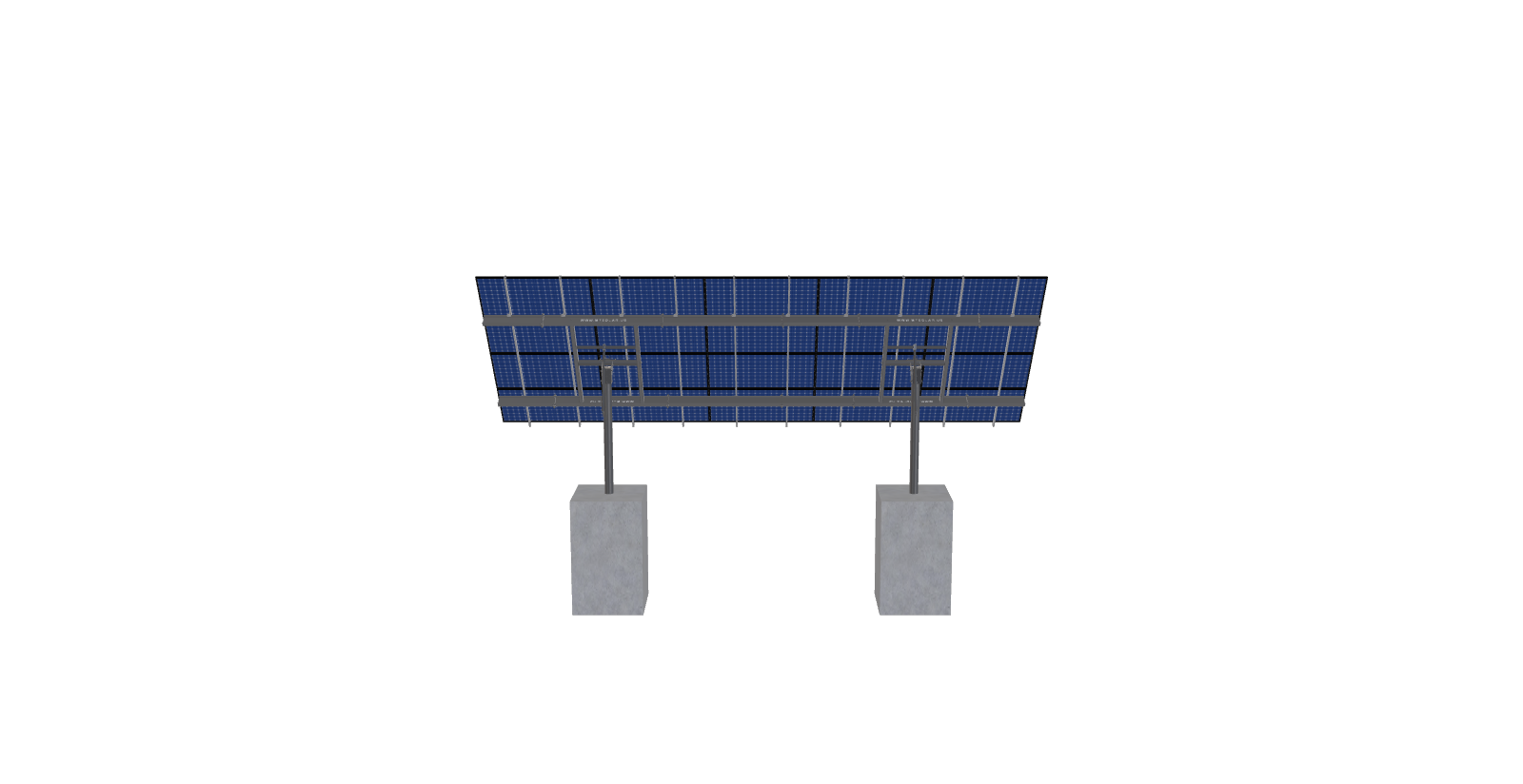

See 3D Model Here
Huck 4×5 CU 2
$9,511.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1675.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-4HX5W-115H |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.48 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 52.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 492.48 |
| ARRAY WIDTH | 35.39 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.00 |
| MODULE LENGTH | 83.93 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 13.90 |
| PROJECTED PANEL HEIGHT | 10.84 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 64.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HUCK, 4X5, CU, 2 |
| SITE ADDRESS | HP9R+3C, PALMDALE, CA, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9058.43 |
| TOTAL WEIGHT | 1675.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/1f8c5c94-4108-4f87-9c2e-07900cfb404f.pdf |
|
| ID | 2468.00 |
| 3D Solar link |
