This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

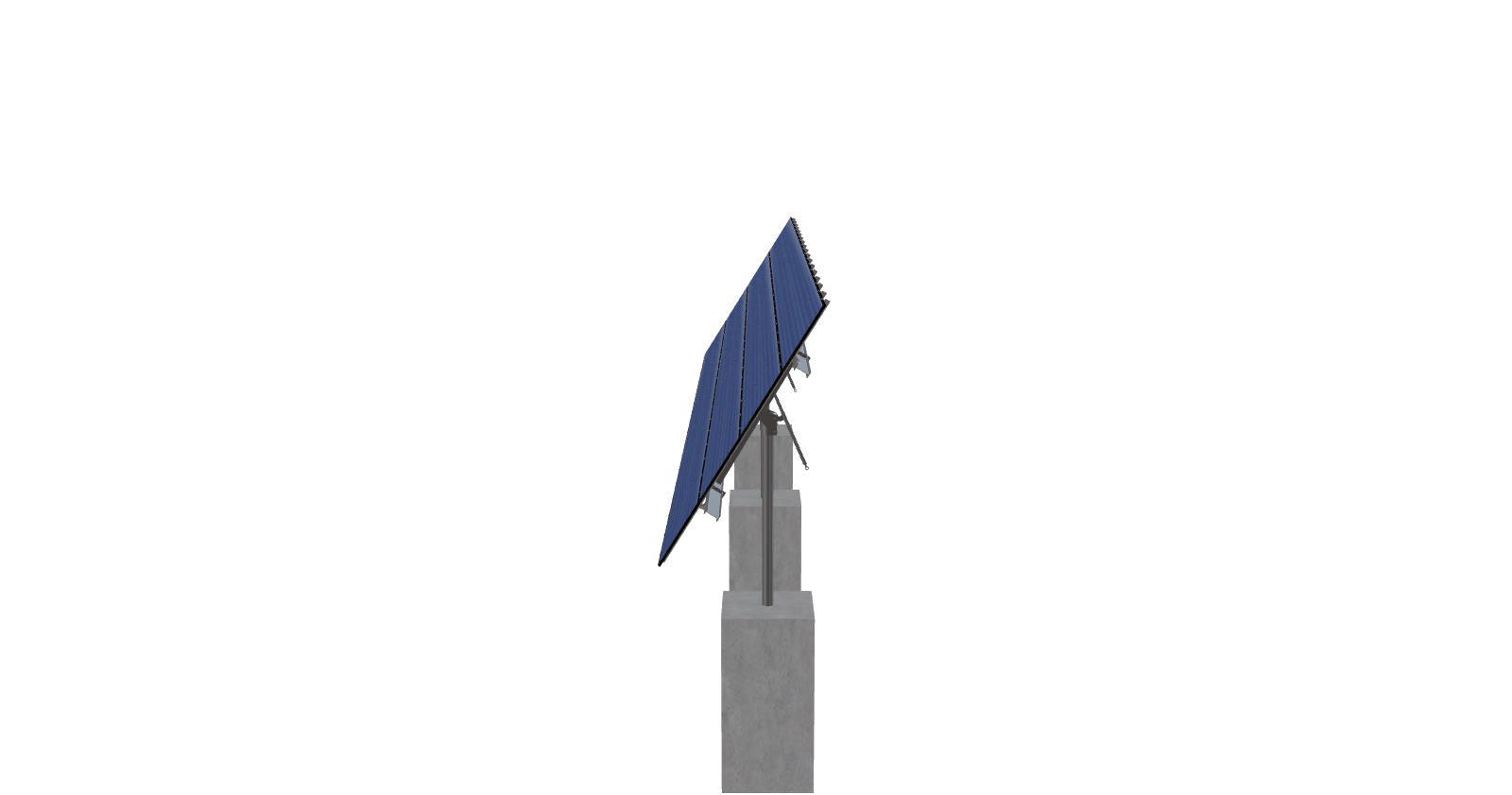

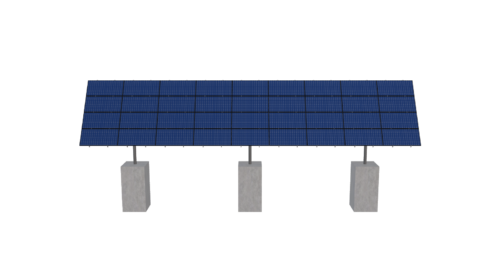

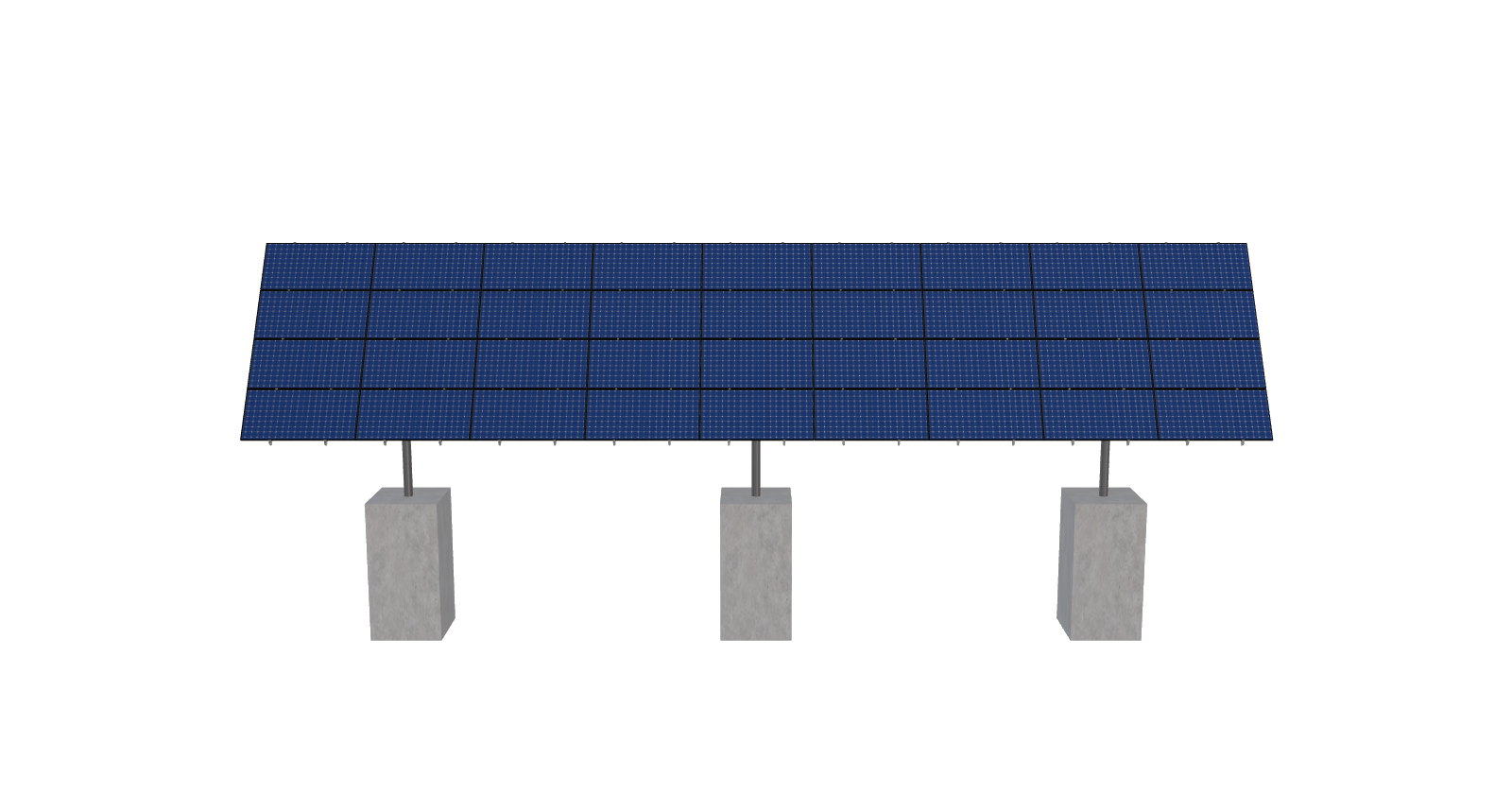

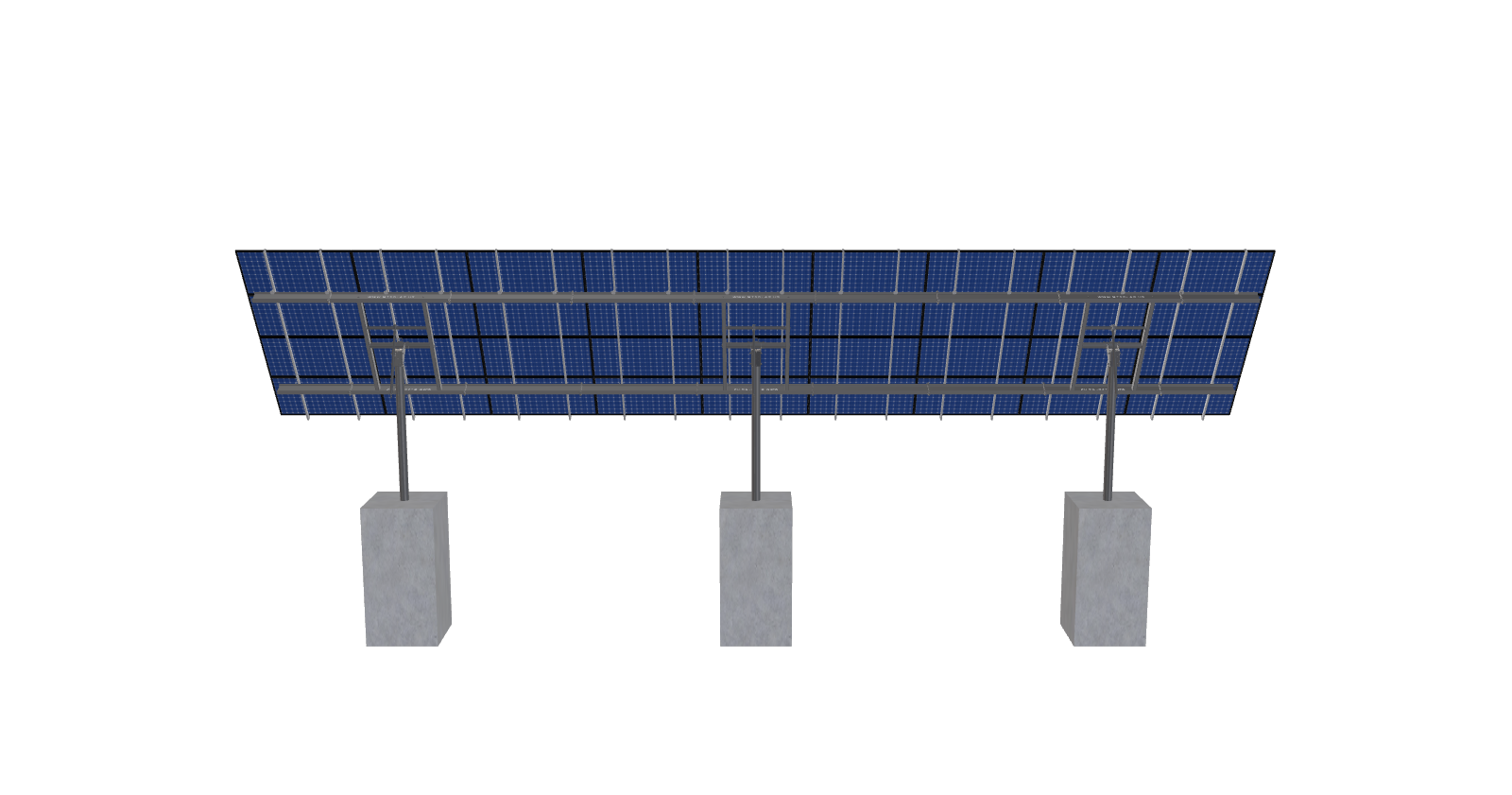

See 3D Model Here
Huck 4×9 CU 2
$15,644.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.93 inches by 41.25 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2780.63 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-57-L-4HX9W-EL2F |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.90 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 58.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 886.46 |
| ARRAY WIDTH | 63.70 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.00 |
| MODULE LENGTH | 83.93 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 15.73 |
| PROJECTED PANEL HEIGHT | 11.66 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 64.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HUCK, 4X9, CU, 2 |
| SITE ADDRESS | HP9R+3C, PALMDALE, CA, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 14899.26 |
| TOTAL WEIGHT | 2780.63 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/a7c344be-2423-496c-b590-e5852124a0be.pdf |
|
| ID | 2467.00 |
| 3D Solar link |
