JA-physical Sciences-V2

$5,121.06

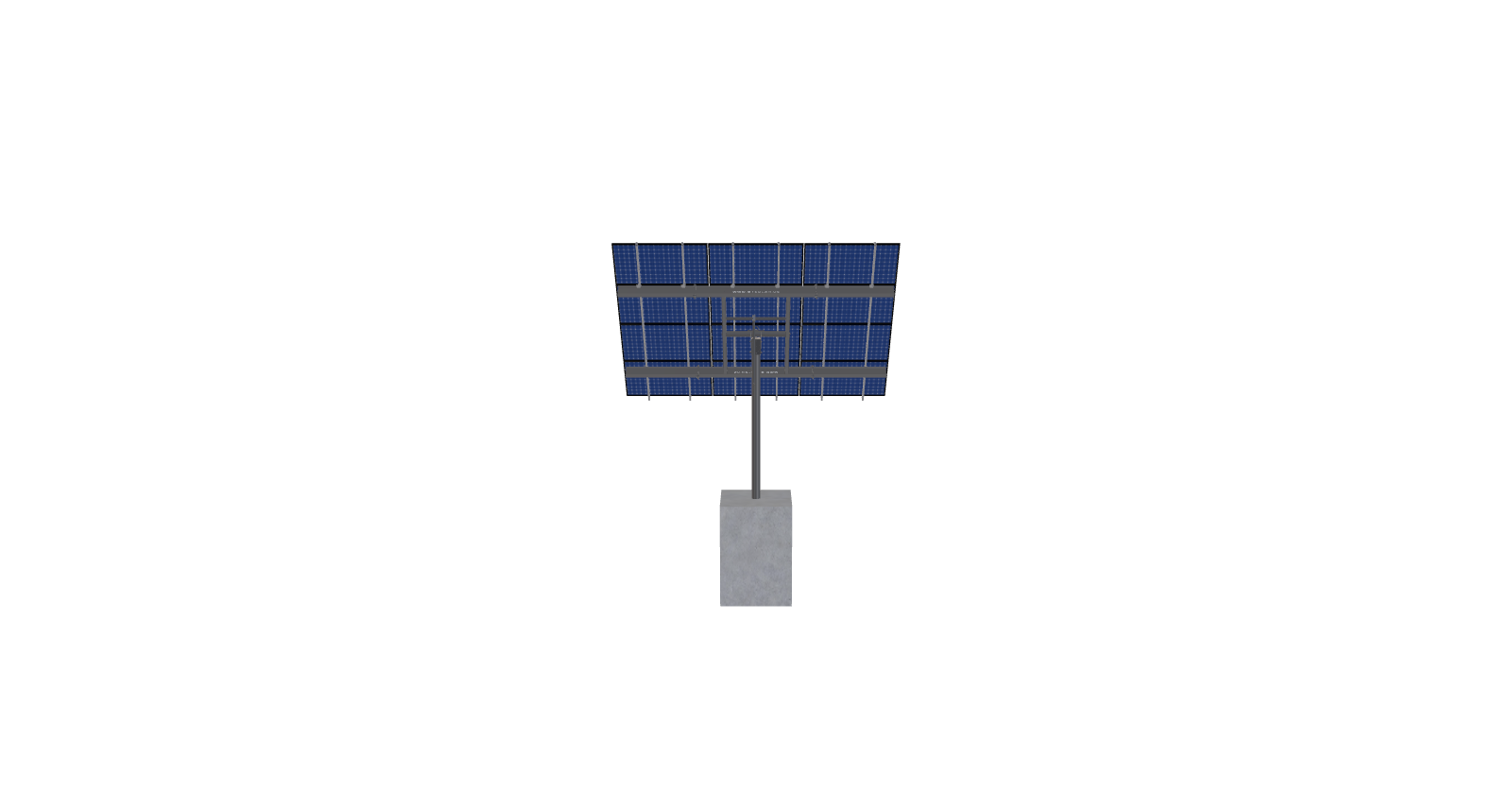

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-XD-57-L-4Hx3W-1G0L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 941.21 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-XD-57-L-4HX3W-1G0L

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.57

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

254.84

ARRAY WIDTH

17.52

ARRAY HEIGHT

14.55

RAIL LENGTH

174.60

MODULE LENGTH

69.06

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

16.08

PROJECTED PANEL HEIGHT

11.02

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

69.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

JA-PHYSICAL, SCIENCES-V2

SITE ADDRESS

108, RAVINE, PKWY, ONEONTA, NY, 13820, USA

MODULE WIDTH

43.15

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

5121.06

TOTAL WEIGHT

941.21

TOTAL PALLETS

1.00
