This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 42 inches by 84 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

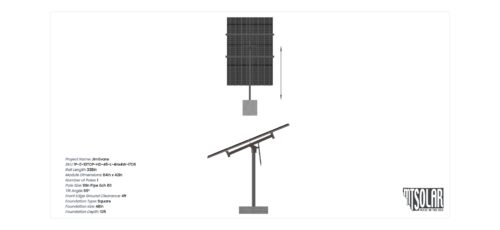

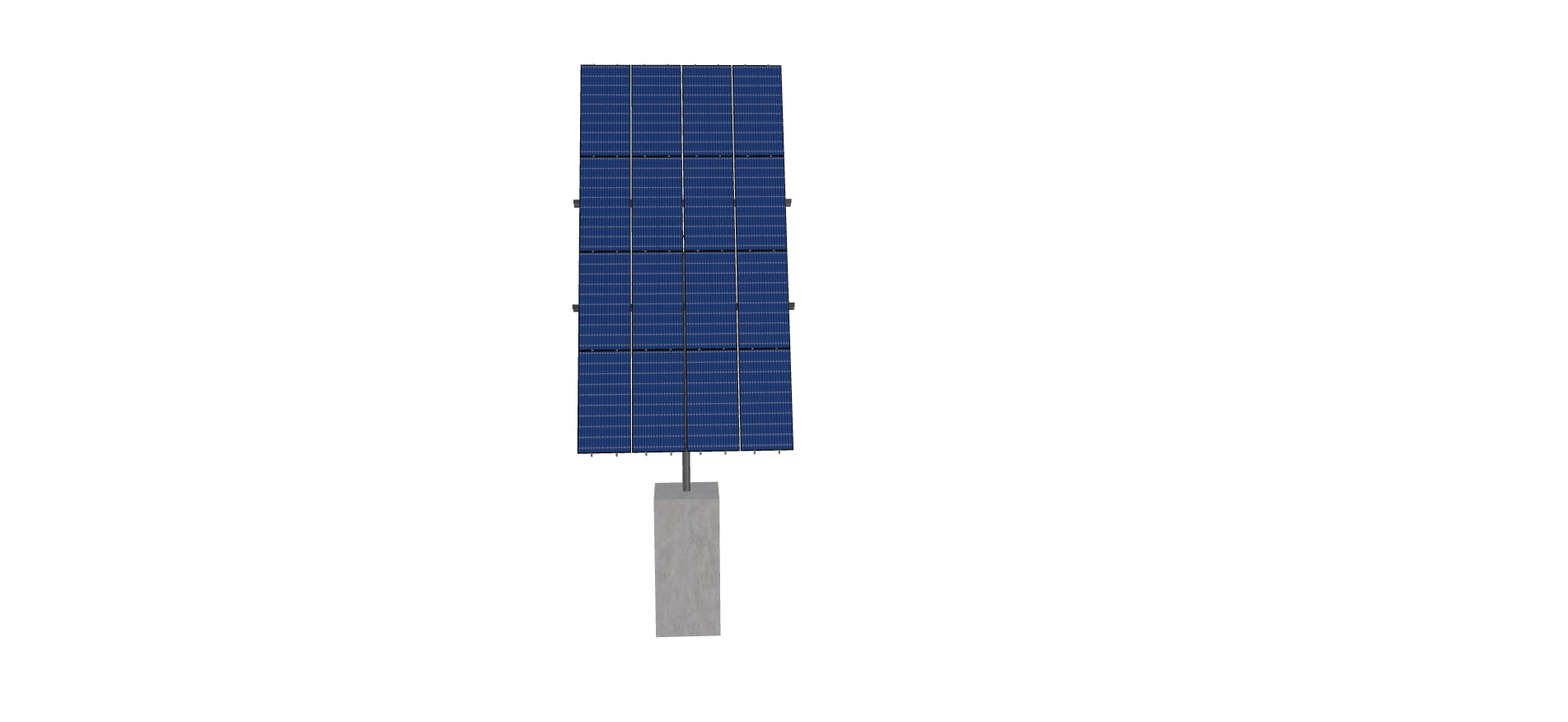

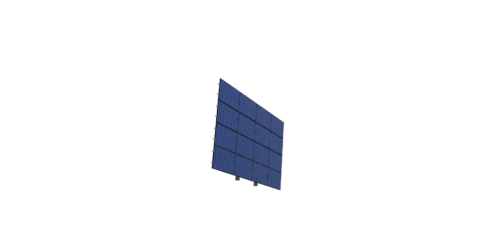

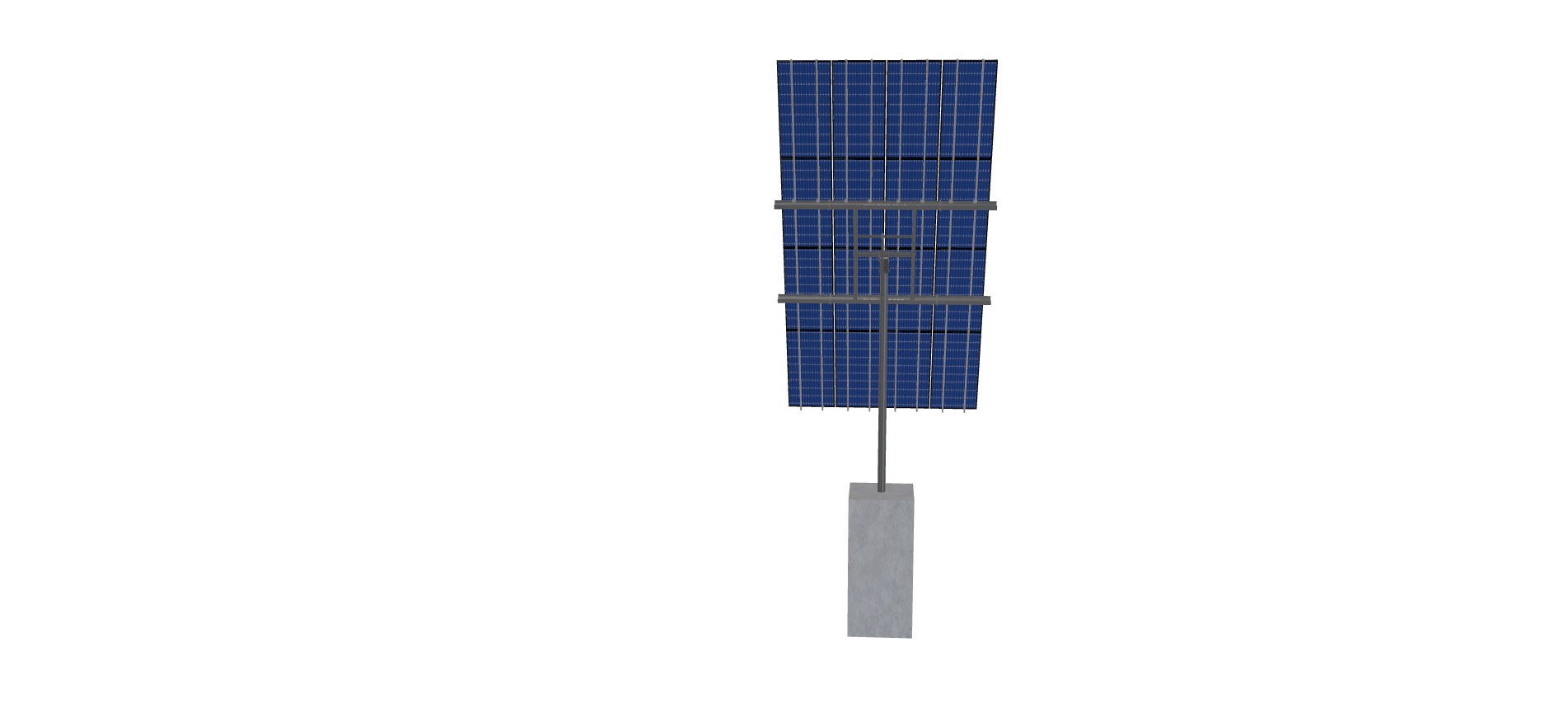

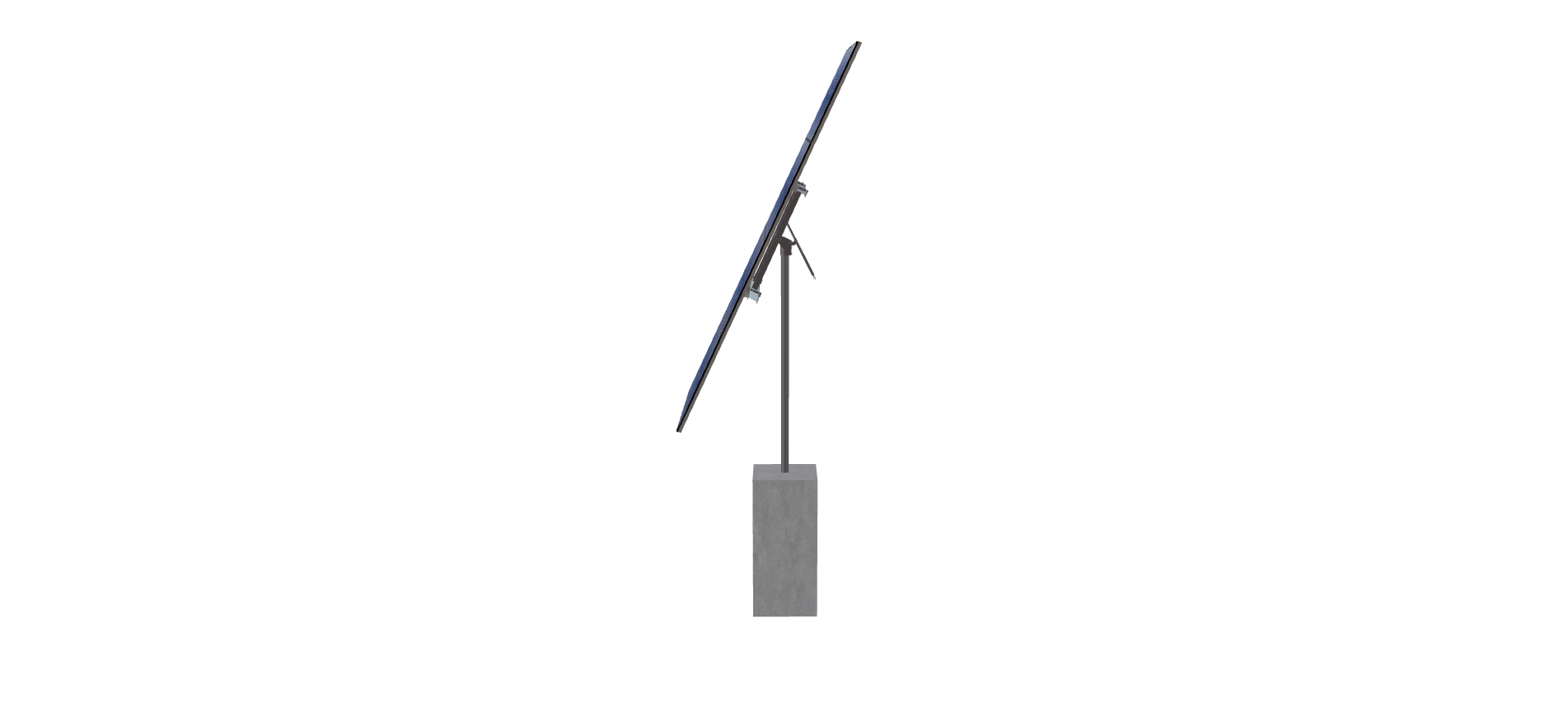

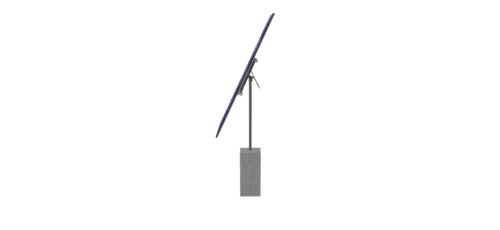

See 3D Model Here
JimEvans
$5,054.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 42 inches by 84 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 846.5899999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-45-L-4HX4W-I7D6 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 16.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 10.00 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 403.72 |
| ARRAY WIDTH | 14.33 |
| ARRAY HEIGHT | 28.17 |
| RAIL LENGTH | 338.00 |
| MODULE LENGTH | 42.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 29.45 |
| PROJECTED PANEL HEIGHT | 25.38 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | JIMEVANS |
| SITE ADDRESS | 1698, AIRPORT, WAY, FAIRBANKS, AK, 99701, USA |
| MODULE WIDTH | 84.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4813.76 |
| TOTAL WEIGHT | 846.59 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/712485cb-0e84-4cc6-84e6-51cacc7bc643.pdf |
|
| ID | 2432.00 |
| 3D Solar link |
