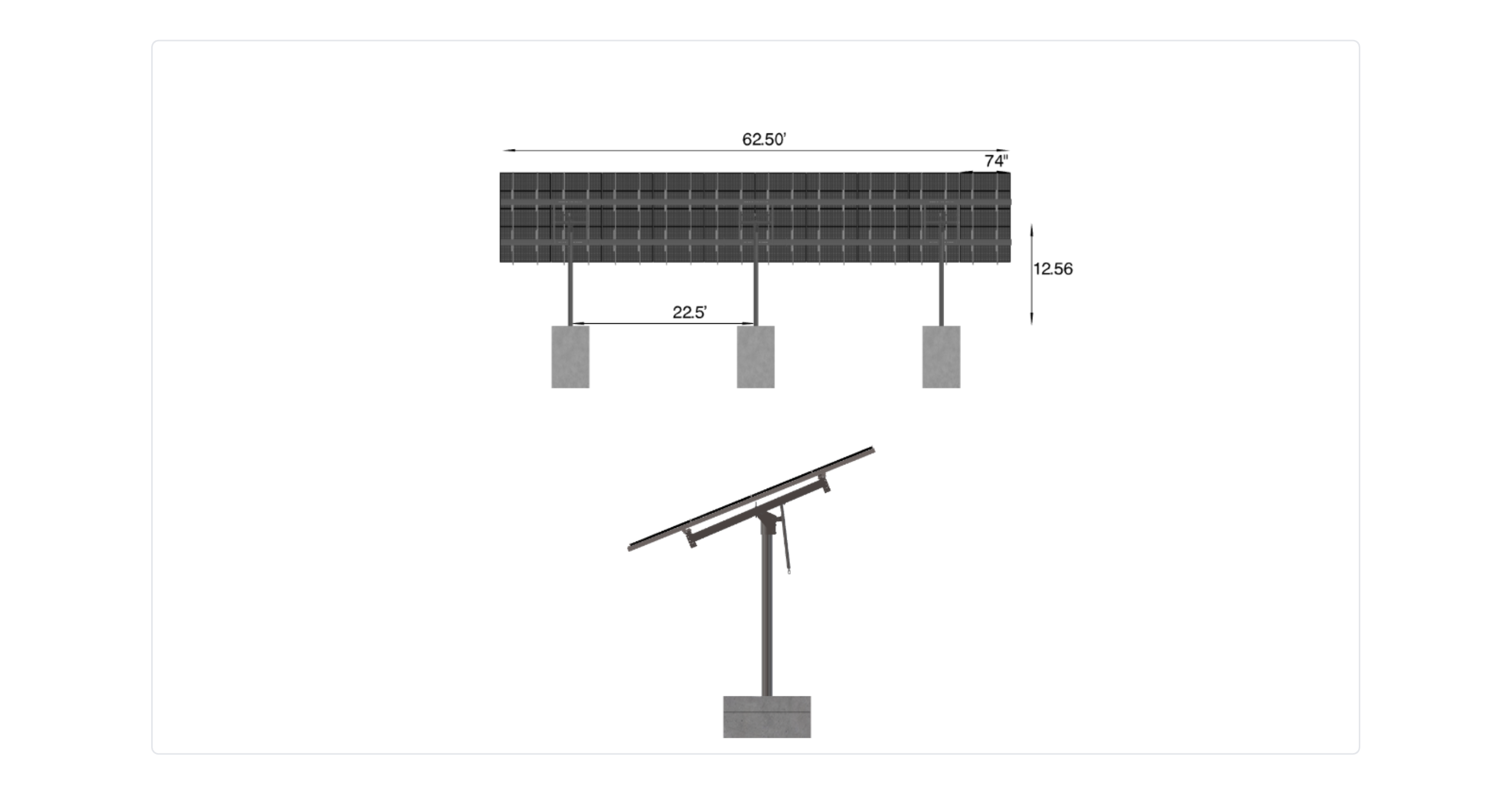

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JJ 2
$17,039.36
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3460.05 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-22.5-8TOP-HD-57-L-5HX10W-23BJ |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 12.56 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 7.50 |
TILT ANGLE | 40.00 |
CANTILEVER | 744.00 |
GROUND CLEARANCE | 7.00 |
NO POLES | 3.00 |
MODULE AREA | 1080.73 |
ARRAY WIDTH | 62.50 |
ARRAY HEIGHT | 17.29 |
RAIL LENGTH | 207.50 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 62.00 |
GROUND TO TOP | 18.05 |
PROJECTED PANEL HEIGHT | 10.98 |
WIND SPEED OVERRIDE | 90.00 |
SNOW LOAD OVERRIDE | 30.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | JJ, 2 |
SITE ADDRESS | MONTROSE, CO, 81401, USA |
MODULE WIDTH | 41.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
ISOLATED FOUNDATION THICKNESS | 18.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 17039.36 |
TOTAL WEIGHT | 3460.05 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/98970183-addf-430b-a130-0a7efdcf0751.pdf |
|
ID | 2236.00 |
3D Solar link |
