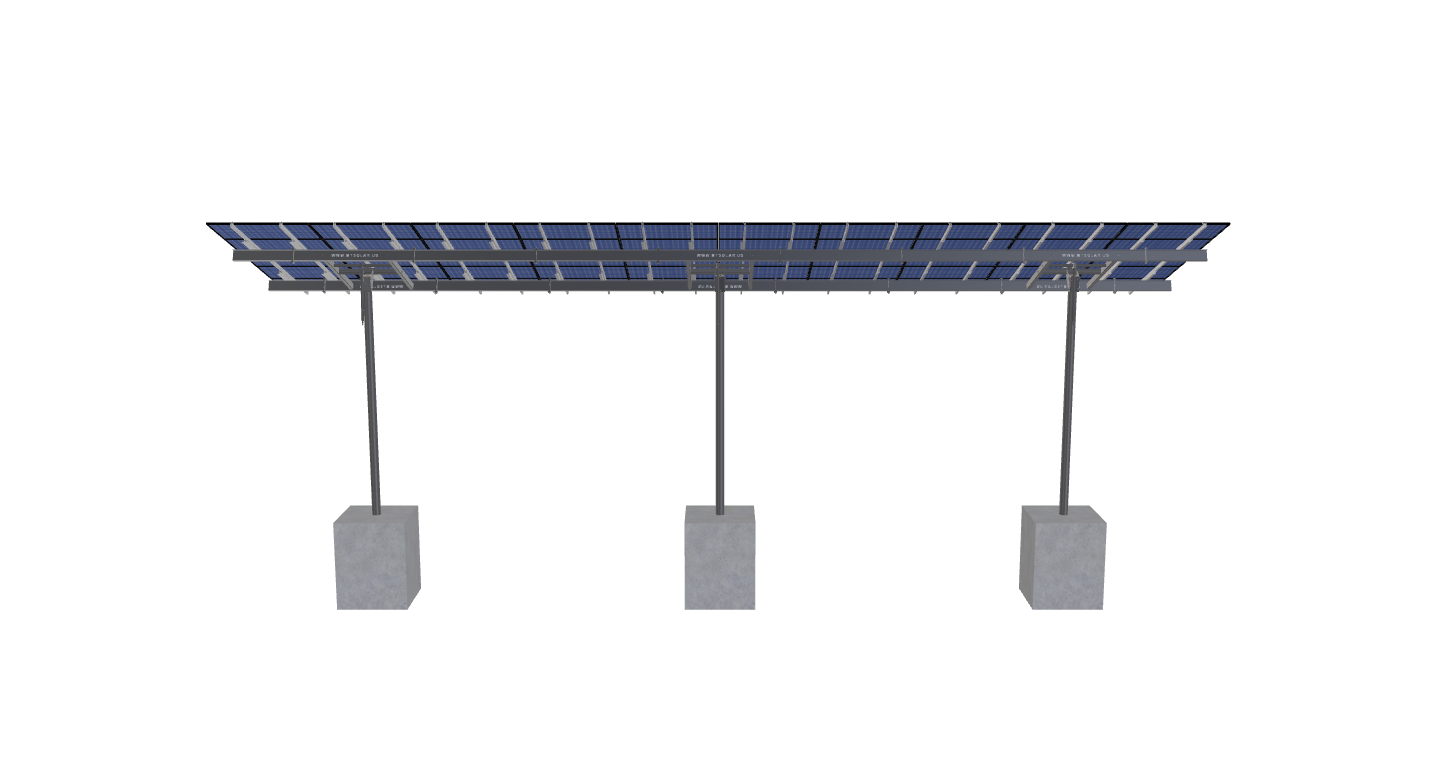

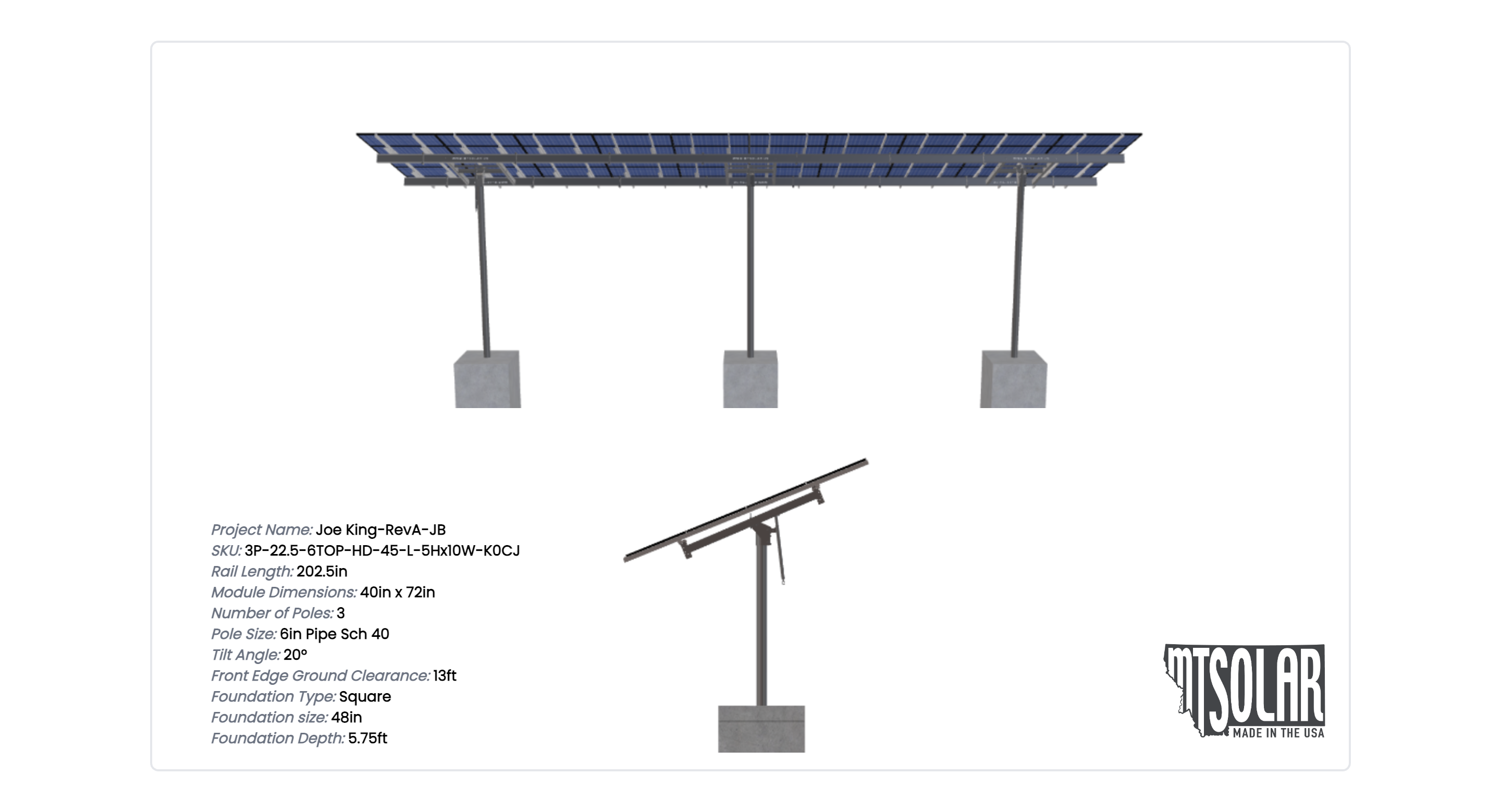

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Joe King-RevA-JB
$17,498.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3375.05 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-45-L-5HX10W-K0CJ |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 15.89 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 13.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1026.56 |
| ARRAY WIDTH | 60.83 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 72.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 18.74 |
| PROJECTED PANEL HEIGHT | 5.70 |
| PROJECT ID | JOE, KING-REVA-JB |
| SITE ADDRESS | 22450, BOGIE, ST, TEHACHAPI, CA, 93561, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 89.00 |
| SNOW LOAD OVERRIDE | 26.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 16664.78 |
| TOTAL WEIGHT | 3375.05 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c9936e08-0f06-4a25-8e3c-af1db2a774e5.pdf |
|
| ID | 4259.00 |
| 3D Solar link |
