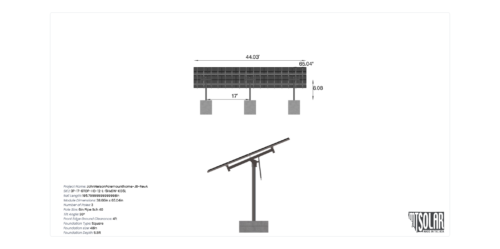

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.04 inches by 38.66 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JohnNelsonPolemounthome-JB-RevA
$14,379.72
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.04 inches by 38.66 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2842.29 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-HD-12-L-5HX8W-KG5L |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.08 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 718.37 |
| ARRAY WIDTH | 44.03 |
| ARRAY HEIGHT | 16.32 |
| RAIL LENGTH | 195.80 |
| MODULE LENGTH | 65.04 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 12.11 |
| PROJECTED PANEL HEIGHT | 8.05 |
| PROJECT ID | JOHNNELSONPOLEMOUNTHOME-JB-REVA |
| SITE ADDRESS | 865, N, LOOP, RD, HUNTINGTON, UT, 84528, USA |
| MODULE WIDTH | 38.66 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 33.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 14379.72 |
| TOTAL WEIGHT | 2842.29 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c700f939-eaea-4285-8971-30a5290fae57.pdf |
|
| ID | 2176.00 |
| 3D Solar link |
