This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

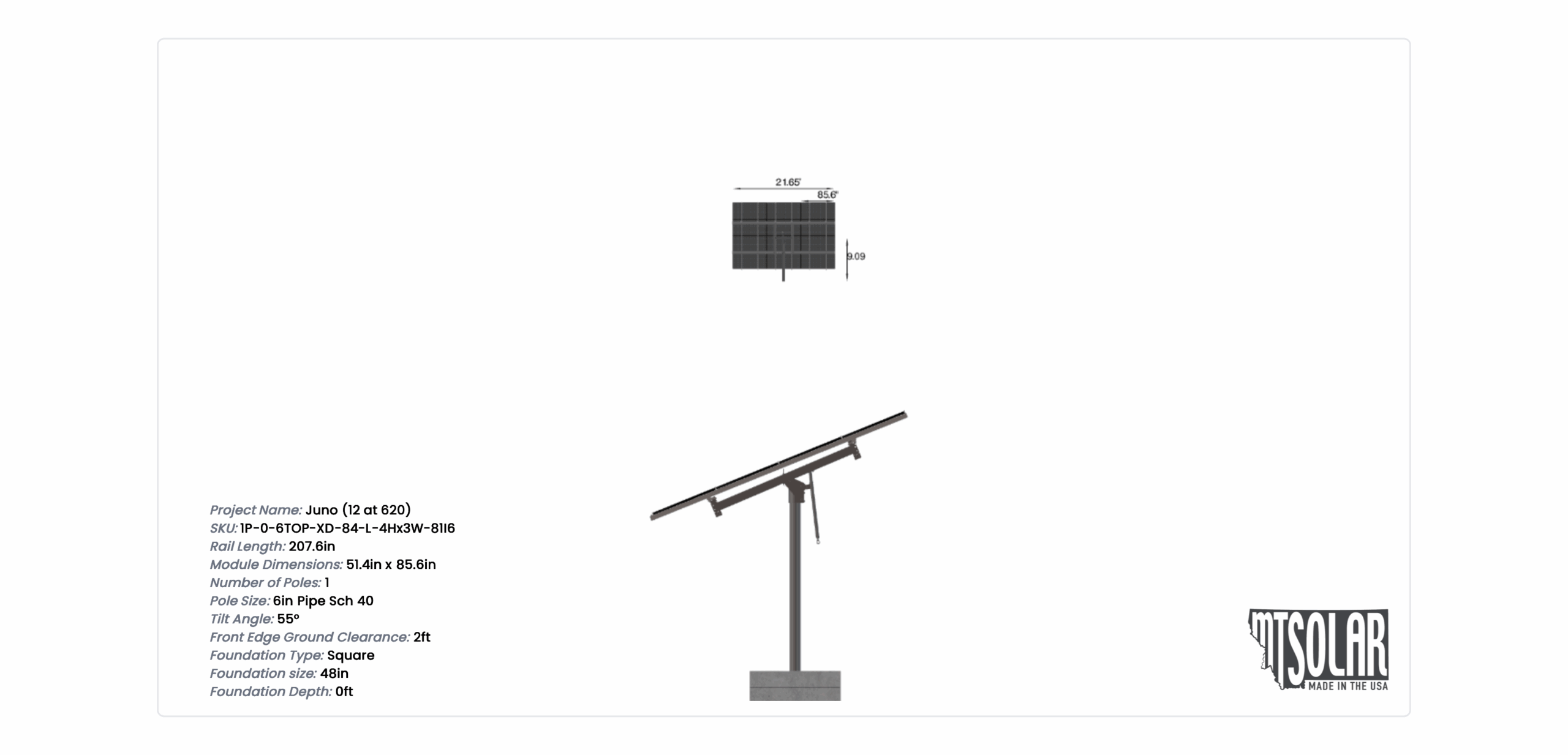

See 3D Model Here
Juno (12 at 620)
$5,907.05
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1057.5900000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-XD-84-L-4HX3W-81I6 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.09 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 1.00 |
| MODULE AREA | 374.54 |
| ARRAY WIDTH | 21.65 |
| ARRAY HEIGHT | 17.30 |
| RAIL LENGTH | 207.60 |
| MODULE LENGTH | 85.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 16.17 |
| PROJECTED PANEL HEIGHT | 14.17 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | JUNO, (12, AT, 620) |
| SITE ADDRESS | WHITEFISH, MT, 59937, USA |
| MODULE INFO | |
| MODULE WIDTH | 51.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 75.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 5907.05 |
| TOTAL WEIGHT | 1057.59 |
| TOTAL PALLETS | 1.00 |
