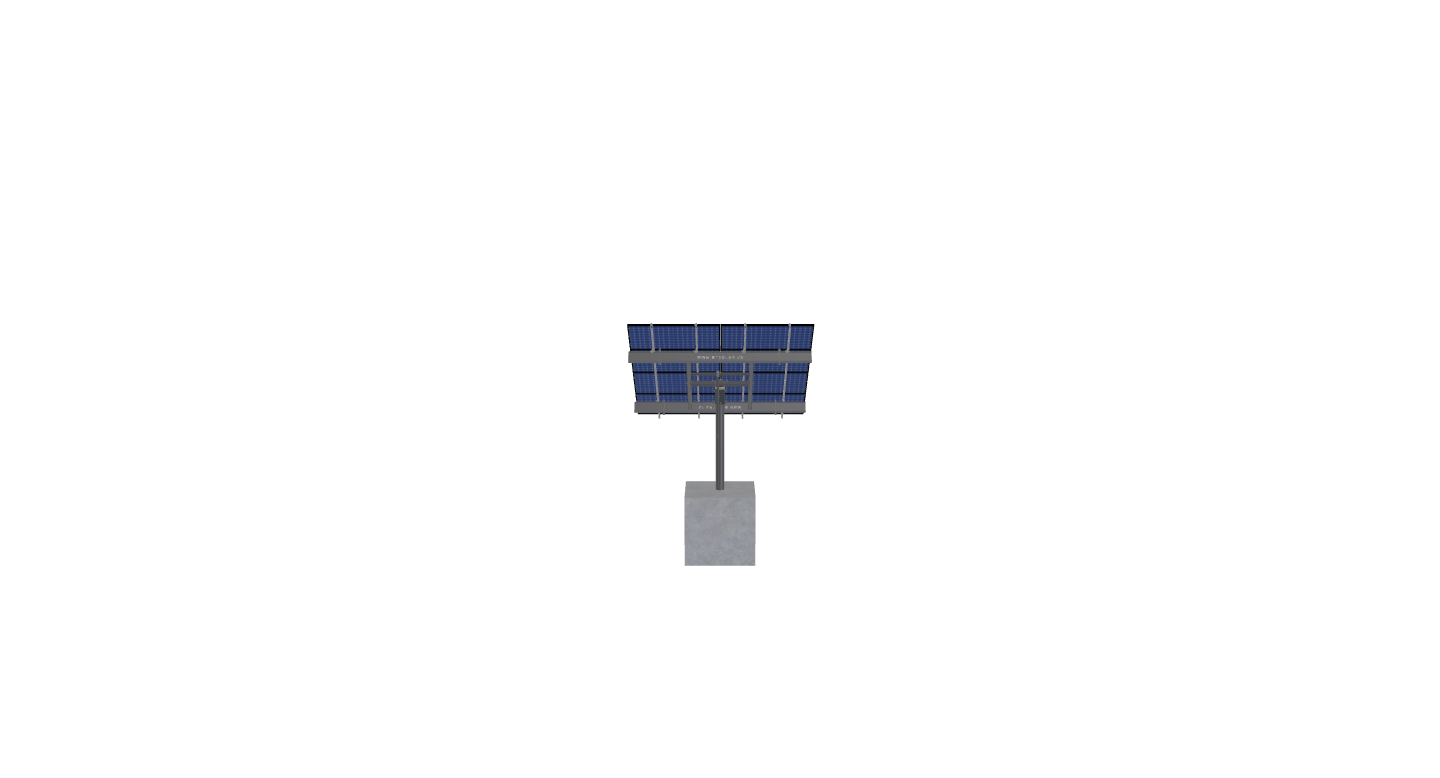

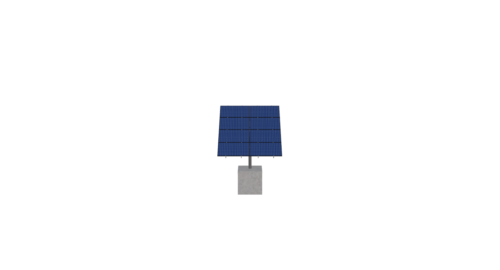

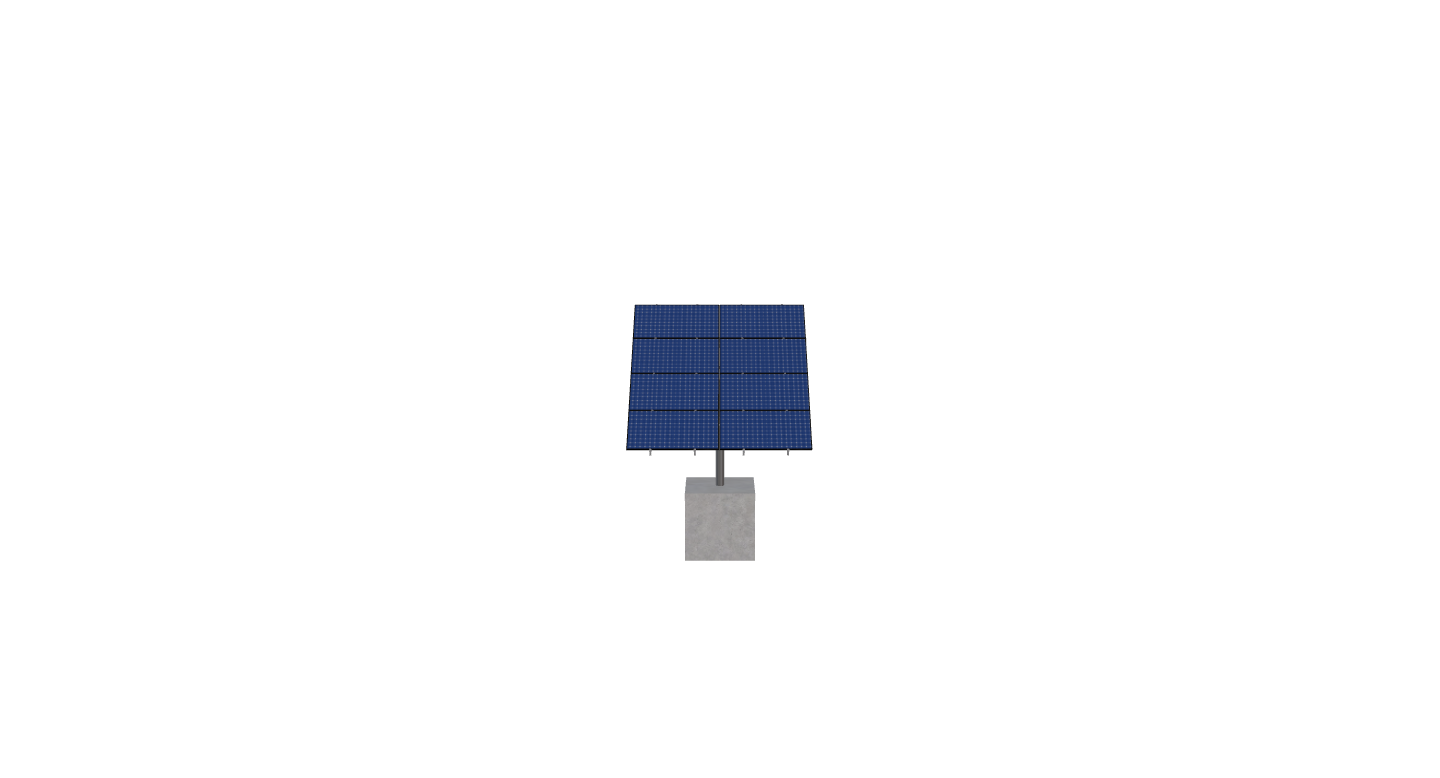

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.5 inches by 40.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Kass 35deg 3ft – V1Jb
$3,935.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.5 inches by 40.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 684.51 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-24-L-4HX2W-9C63 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.93 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 158.69 |
| ARRAY WIDTH | 11.58 |
| ARRAY HEIGHT | 13.70 |
| RAIL LENGTH | 164.40 |
| MODULE LENGTH | 68.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 10.86 |
| PROJECTED PANEL HEIGHT | 7.86 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | KASS, 35DEG, 3FT, -, V1JB |
| SITE ADDRESS | 1071, W, JAMAICA, RD, JAMAICA, VT, 05343, USA |
| MODULE INFO | |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 102.00 |
| SNOW LOAD OVERRIDE | 140.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3935.38 |
| TOTAL WEIGHT | 684.51 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d1136959-bc46-471e-aa5b-c897fac25a3b.pdf |
|
| ID | 11001.00 |
| 3D Solar link |
