This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

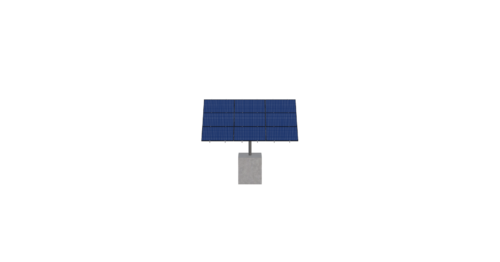

See 3D Model Here
KellyCabin-v3-cu
$3,891.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 664.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-57-L-3HX3W-03D2 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.58 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 184.02 |
| ARRAY WIDTH | 18.18 |
| ARRAY HEIGHT | 10.13 |
| RAIL LENGTH | 121.50 |
| MODULE LENGTH | 71.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 10.12 |
| PROJECTED PANEL HEIGHT | 7.07 |
| PROJECT ID | KELLYCABIN-V3-CU |
| SITE ADDRESS | H4Q2+WH2, PONY, MT, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 106.00 |
| SNOW LOAD OVERRIDE | 81.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3706.01 |
| TOTAL WEIGHT | 664.38 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/154c05fc-240d-418d-9e3c-a89e30e68ae0.pdf |
|
| ID | 6159.00 |
| 3D Solar link |
