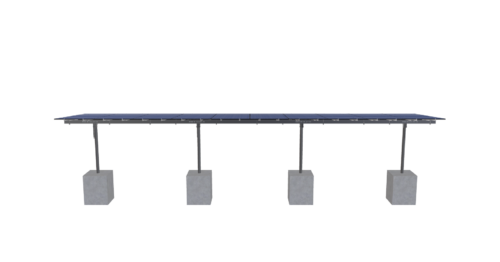

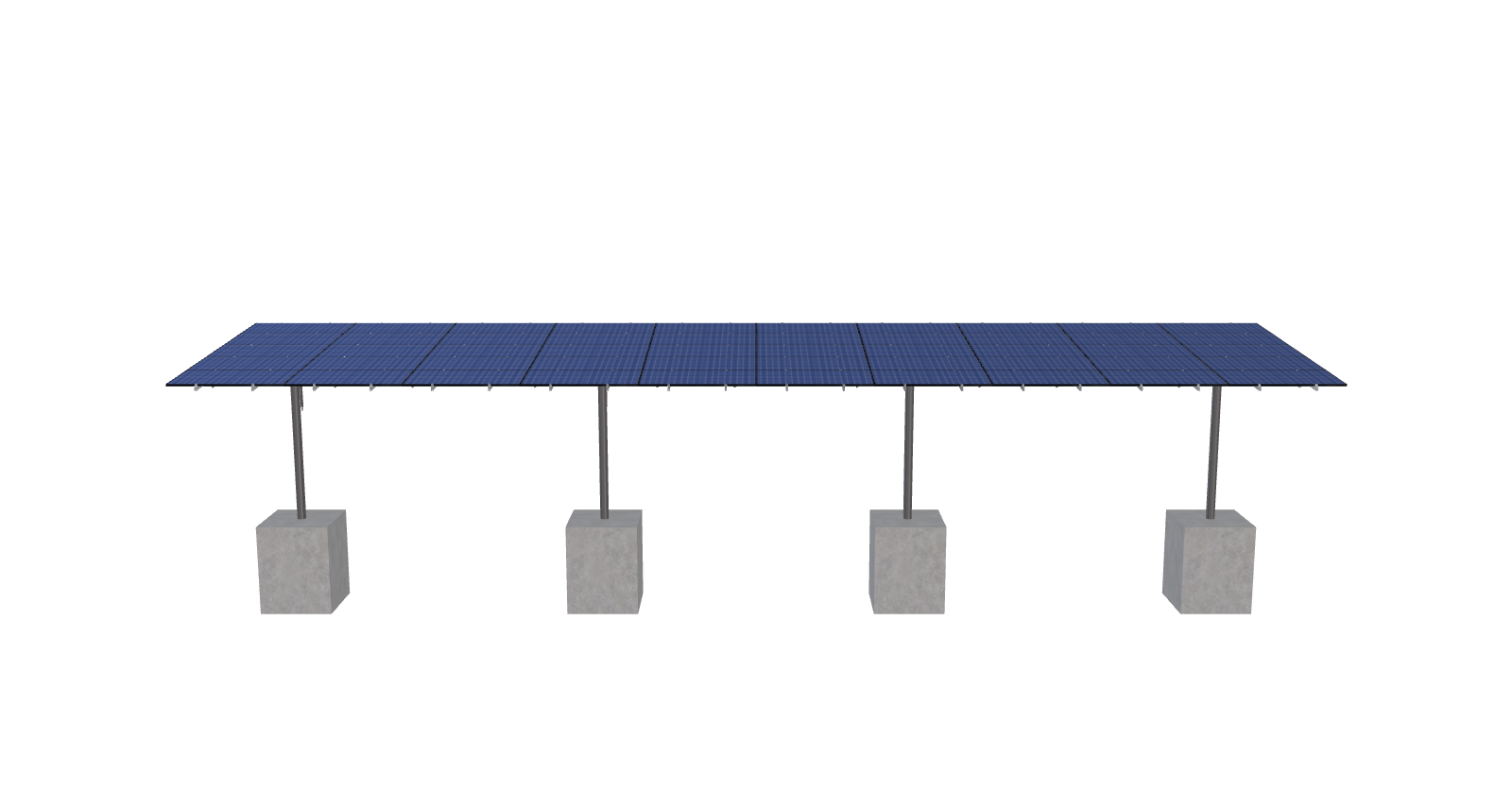

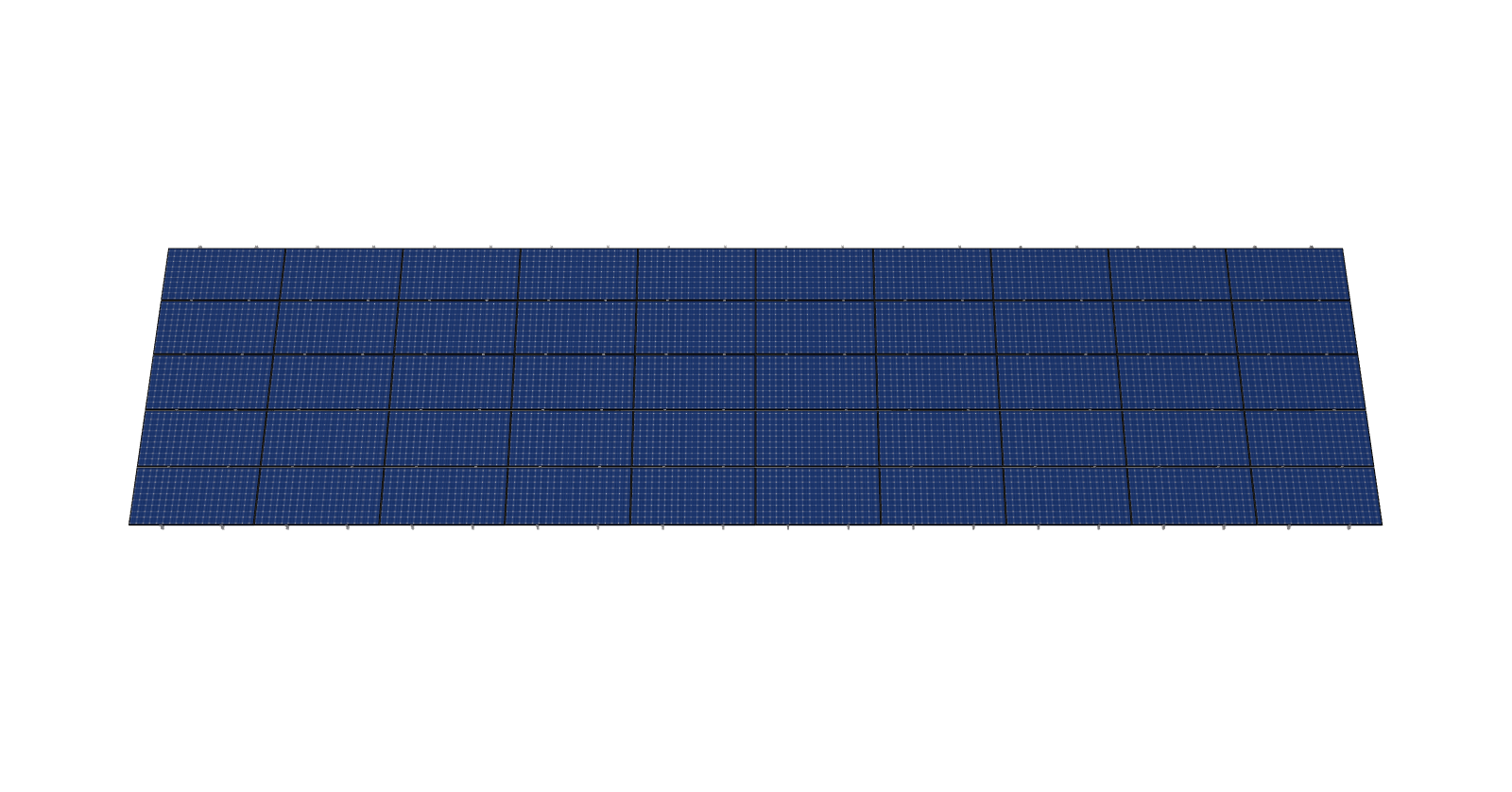

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.89 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Leidos PV Canopy v3
$21,875.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.89 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 4391.4 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-6TOP-XD-12-L-5HX10W-AIDB |
DUTY SIZE | XD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 10.25 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 5.00 |
CANTILEVER | 825.00 |
GROUND CLEARANCE | 9.50 |
NO POLES | 4.00 |
MODULE AREA | 1199.16 |
ARRAY WIDTH | 69.53 |
ARRAY HEIGHT | 17.25 |
RAIL LENGTH | 206.95 |
MODULE LENGTH | 82.44 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 68.75 |
GROUND TO TOP | 10.99 |
PROJECTED PANEL HEIGHT | 1.48 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | LEIDOS, PV, CANOPY, V3 |
SITE ADDRESS | BLACKSTONE, VA, 23824, USA |
MODULE WIDTH | 40.89 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | IV |
EXPOSURE CATEGORY | D |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 21875.89 |
TOTAL WEIGHT | 4391.40 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/c0ba01d5-3c77-47d2-997c-cb6a4aac982c.pdf |
|
ID | 5845.00 |
3D Solar link |
