This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

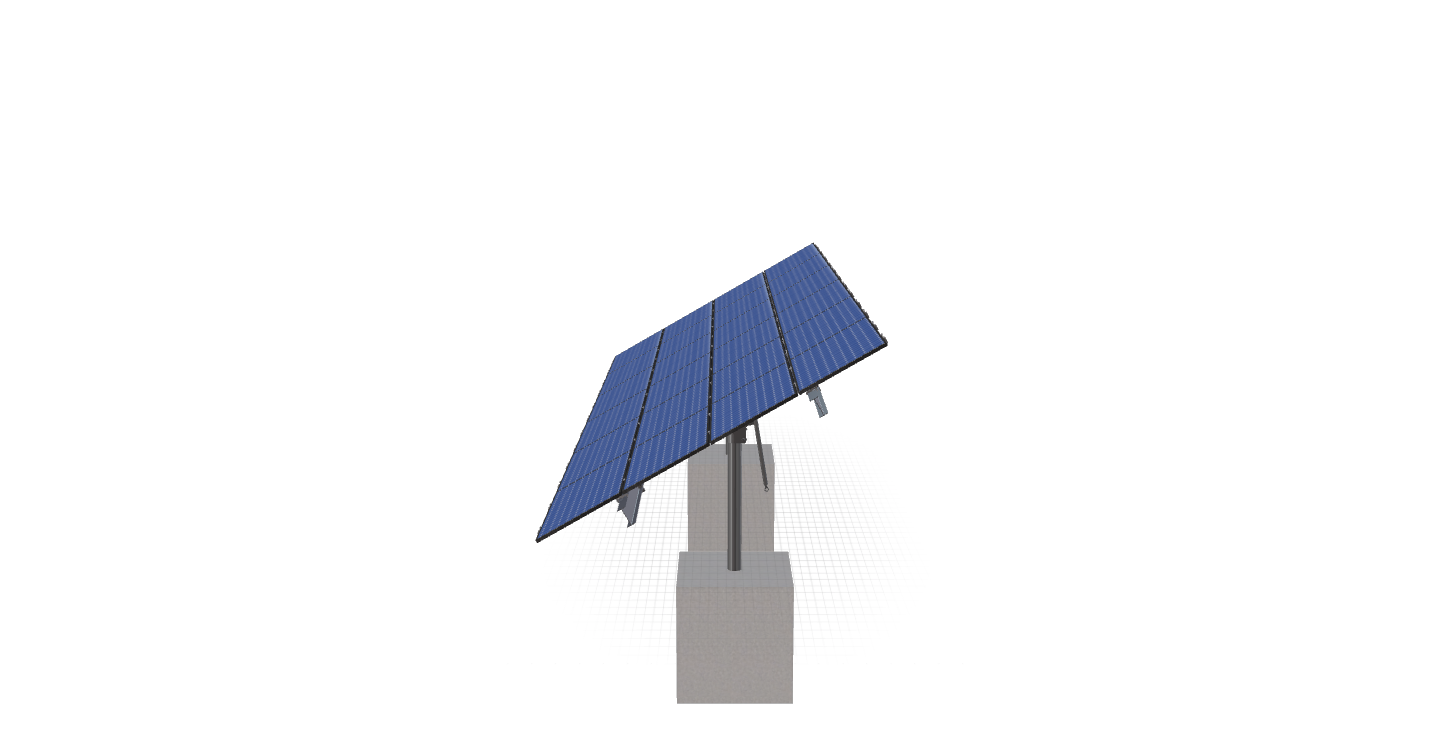

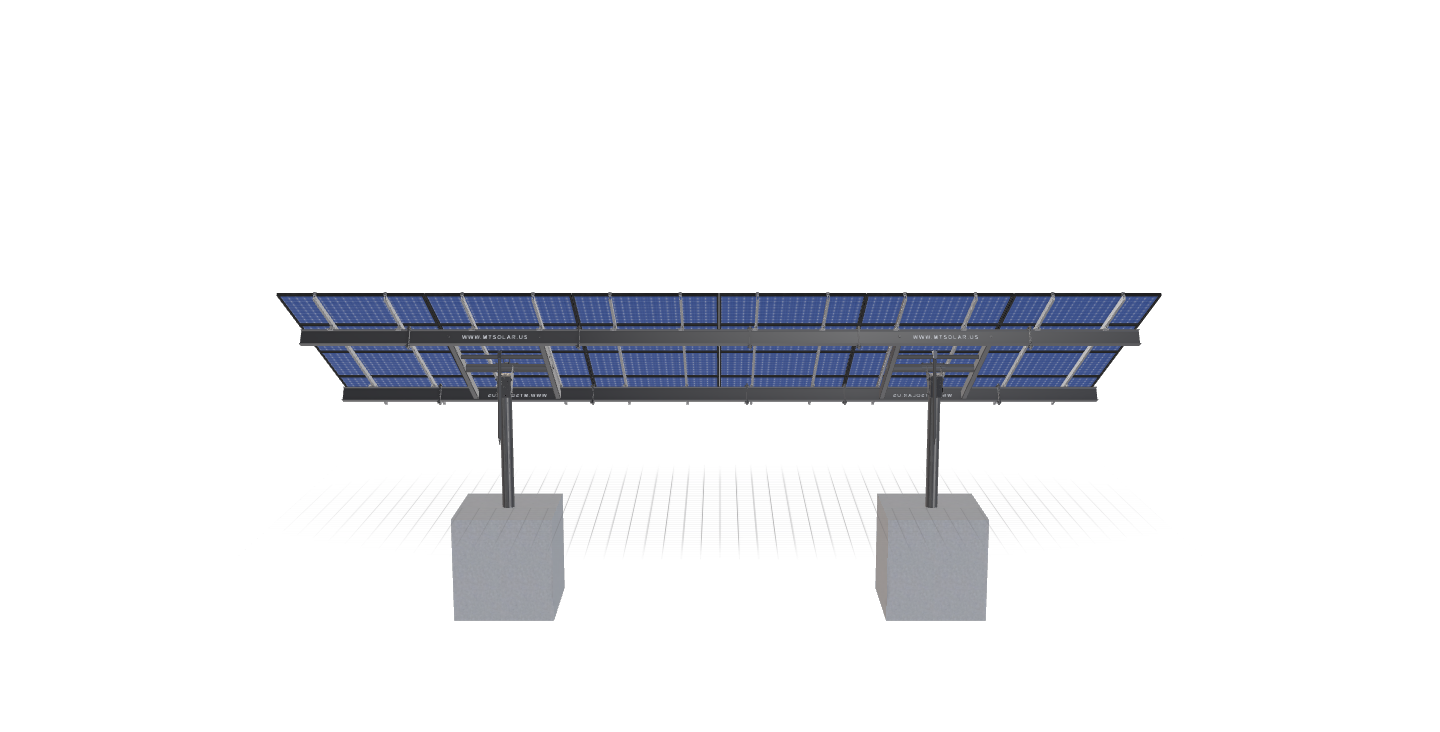

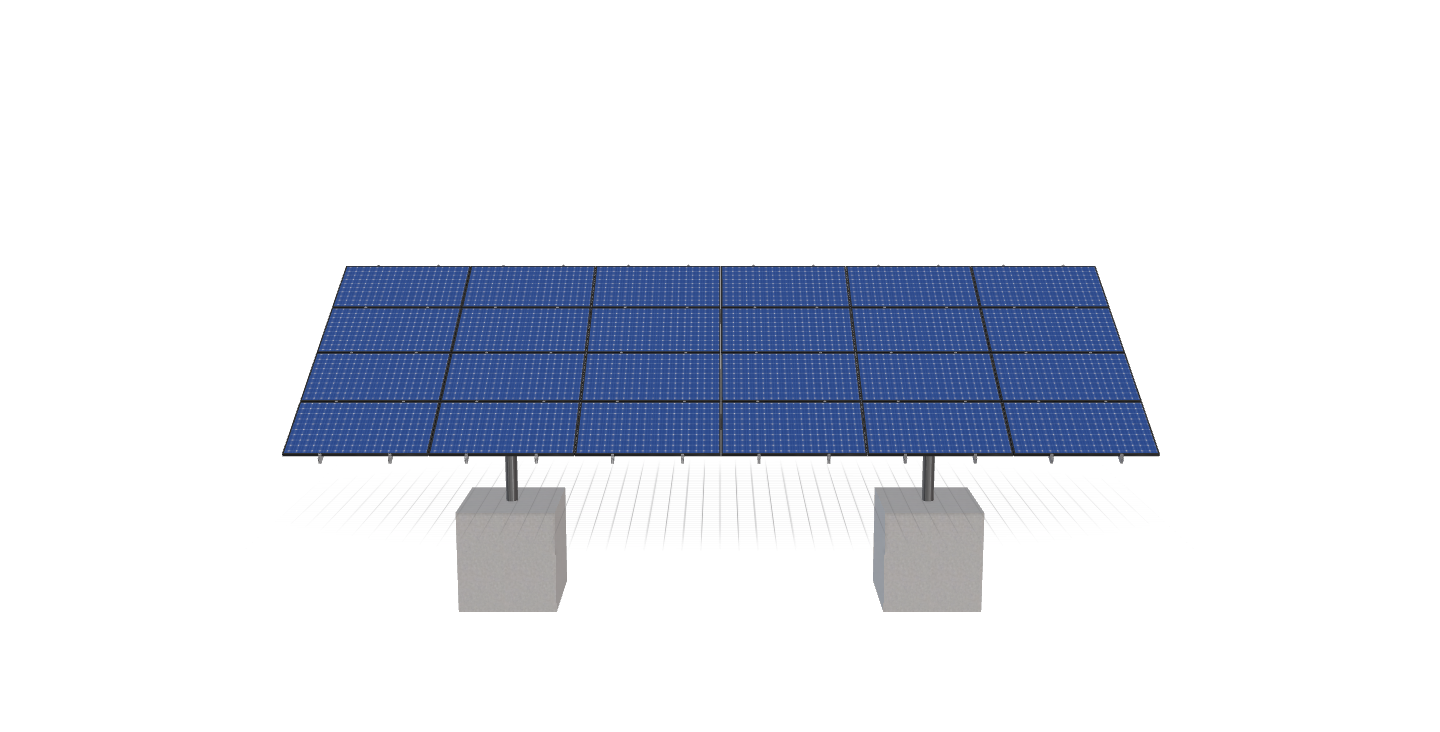

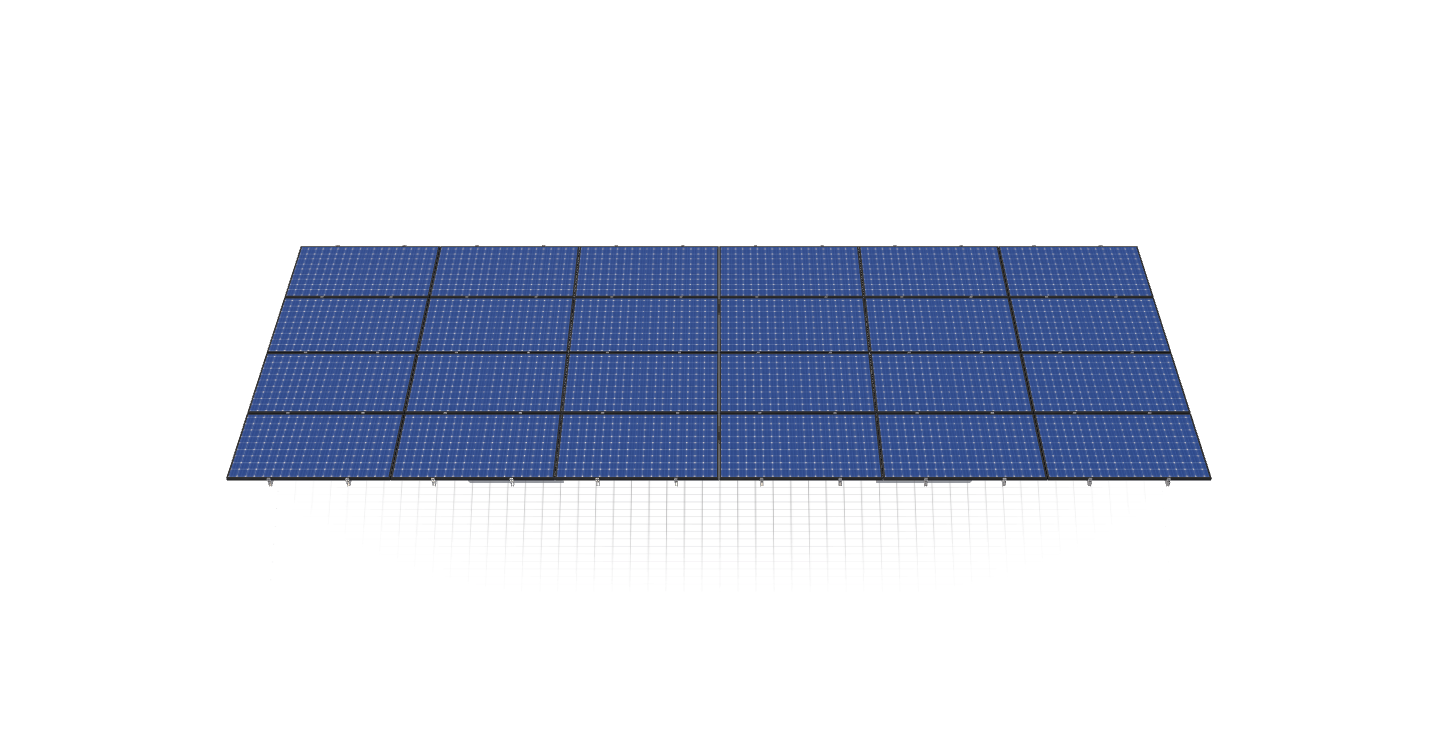

See 3D Model Here
Levin-RevA
$9,843.18
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1722.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-HD-57-L-4HX6W-5086 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 6.47 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 520.36 |
| ARRAY WIDTH | 37.49 |
| ARRAY HEIGHT | 13.88 |
| RAIL LENGTH | 166.56 |
| MODULE LENGTH | 73.98 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 9.90 |
| PROJECTED PANEL HEIGHT | 6.86 |
| PROJECT ID | LEVIN-REVA |
| SITE ADDRESS | 123, MEADOW, WOOD, RD, GLENWOOD, SPRINGS, CO, 81601, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 9374.46 |
| TOTAL WEIGHT | 1722.52 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/aaf79787-96e0-4ab0-856b-994638376e40.pdf |
|
| ID | 1224.00 |
| 3D Solar link |
