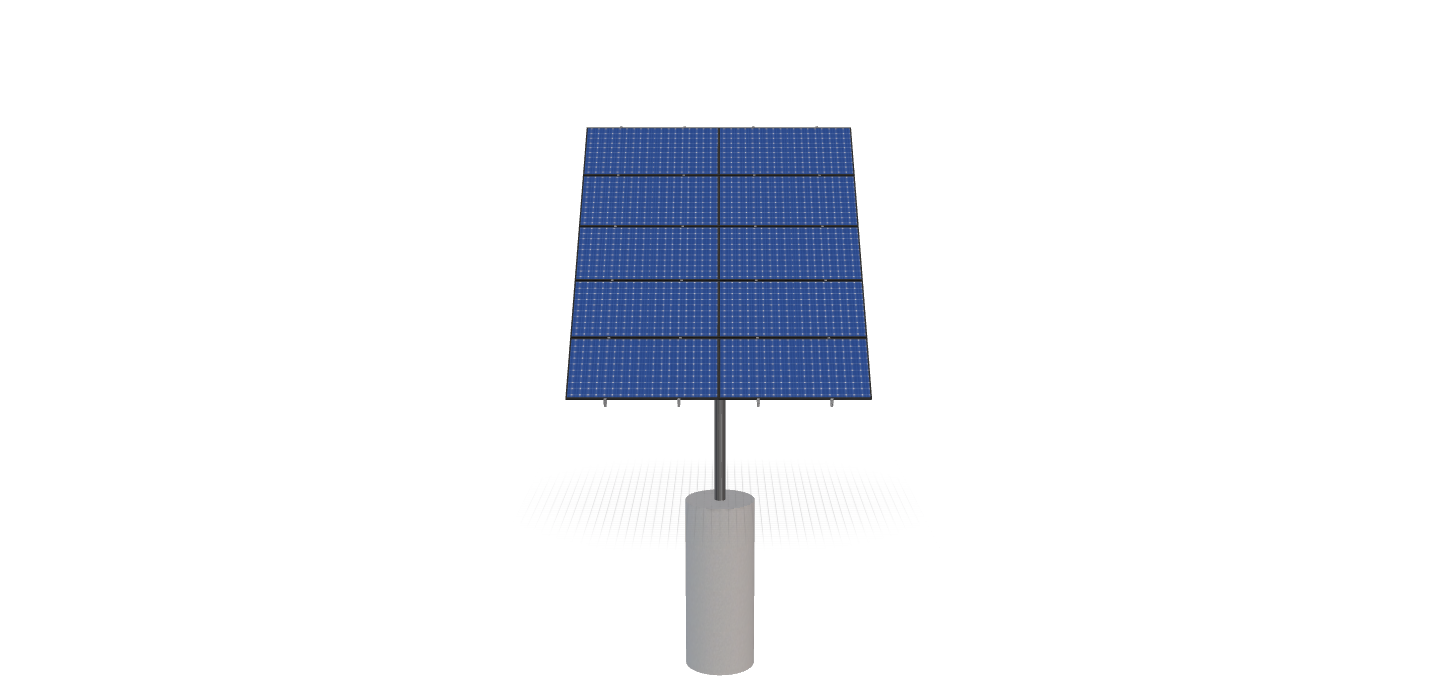

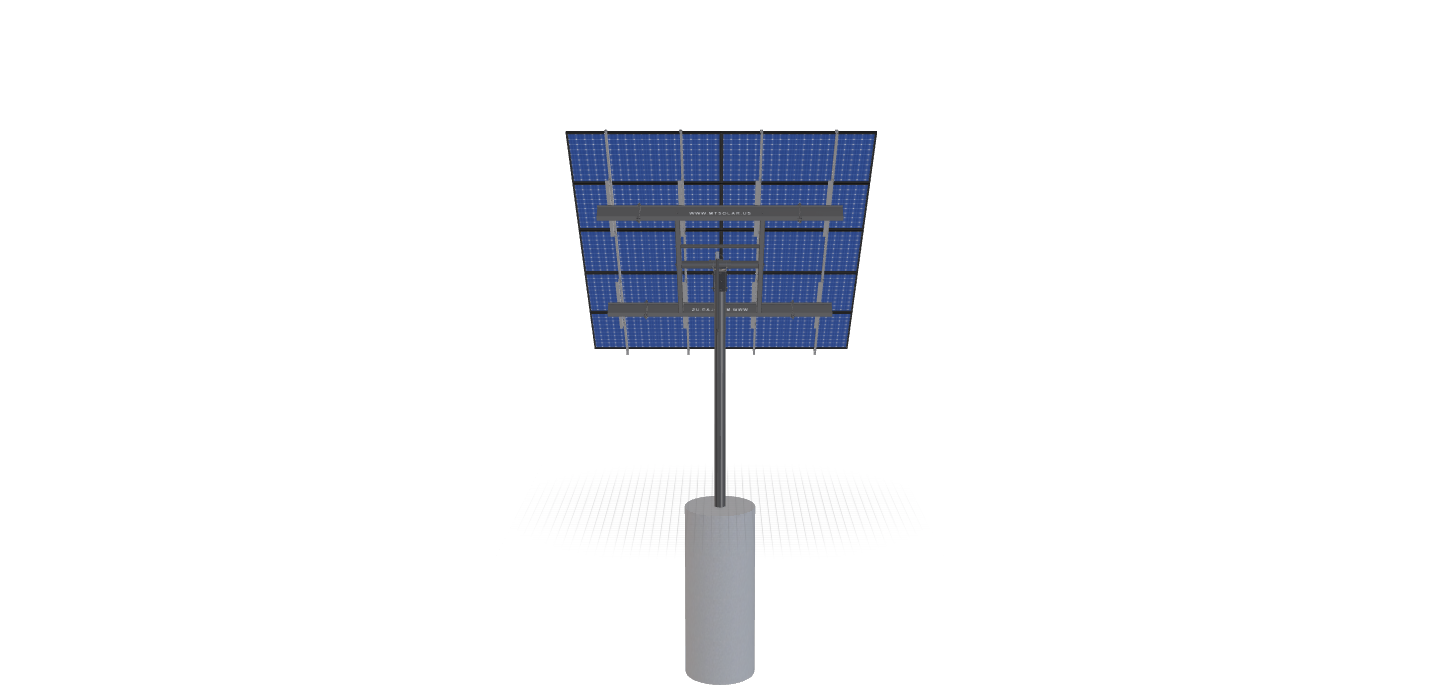

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
lickcreekA
$3,672.61
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 691.88 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-24-L-5HX2W-24BA |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 12.09 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 8.75 |
TILT ANGLE | 45.00 |
CANTILEVER | 138.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 1.00 |
MODULE AREA | 239.66 |
ARRAY WIDTH | 13.91 |
ARRAY HEIGHT | 17.23 |
RAIL LENGTH | 206.80 |
MODULE LENGTH | 82.44 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 11.50 |
GROUND TO TOP | 18.11 |
PROJECTED PANEL HEIGHT | 12.04 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | LICKCREEKA |
SITE ADDRESS | 1960, LICK, CREEK, RD, MCCALL, ID, 83638, USA |
MODULE WIDTH | 40.86 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 3672.61 |
TOTAL WEIGHT | 691.88 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/265d6b92-72b2-47c7-9225-ff8bdc4b06ad.pdf |
|
ID | 1219.00 |
3D Solar link |
