This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.45 inches by undefined inches and an array layout of undefined wide by undefined high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

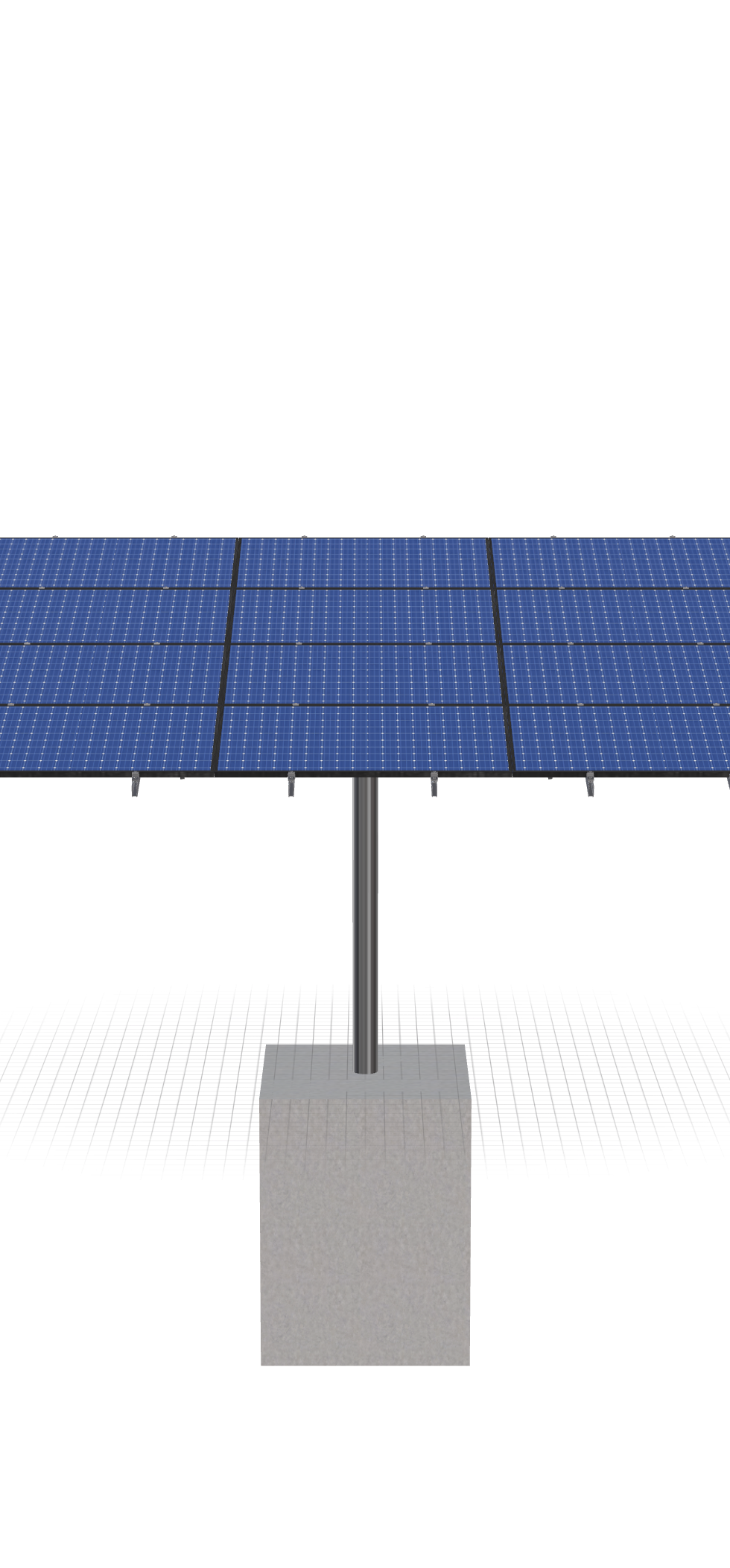

See 3D Model Here
LimestoneSolar|05302023|CU
$0.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.45 inches by undefined inches and an array layout of undefined wide by undefined high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Dimensions | 90 × 24 × 24 in |
|---|---|
| SKU CODE | 1P-0-6TOP-SD-24-L-4HX2W-FGDI |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.79 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 162.19 |
| ARRAY WIDTH | 11.74 |
| ARRAY HEIGHT | 13.81 |
| RAIL LENGTH | 165.76 |
| MODULE LENGTH | 69.45 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 10.55 |
| PROJECTED PANEL HEIGHT | 3.53 |
| WIND SPEED OVERRIDE | 180.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | LIMESTONESOLAR, 05302023, CU |
