Lojewski

$4,245.09

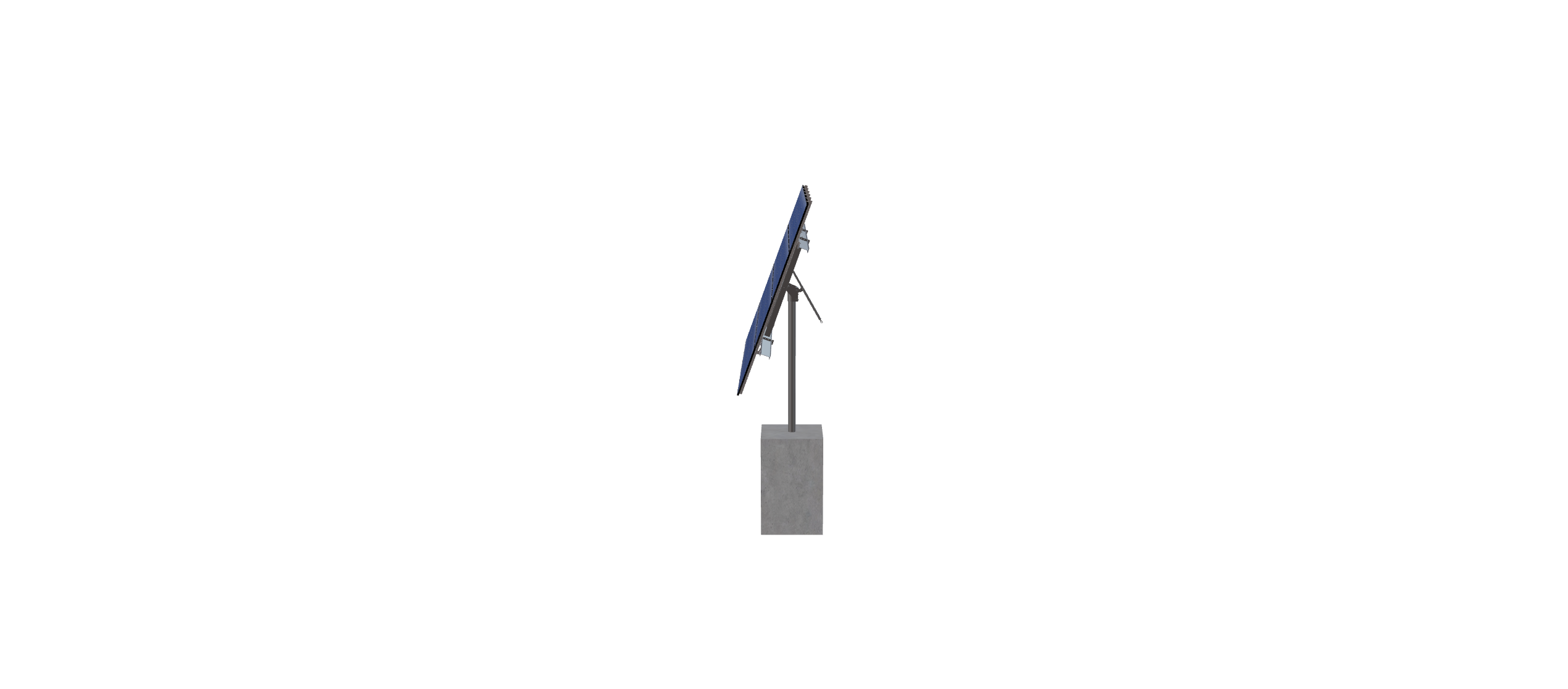

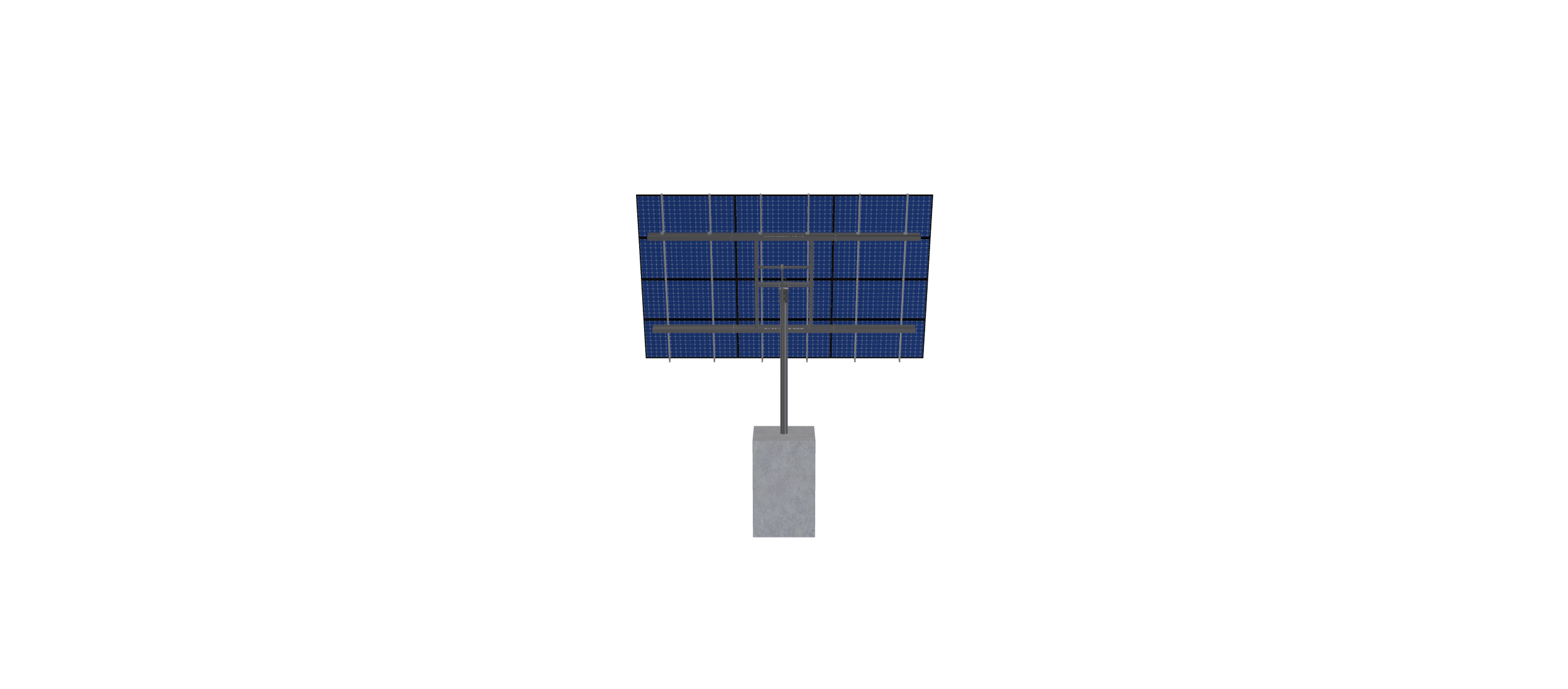

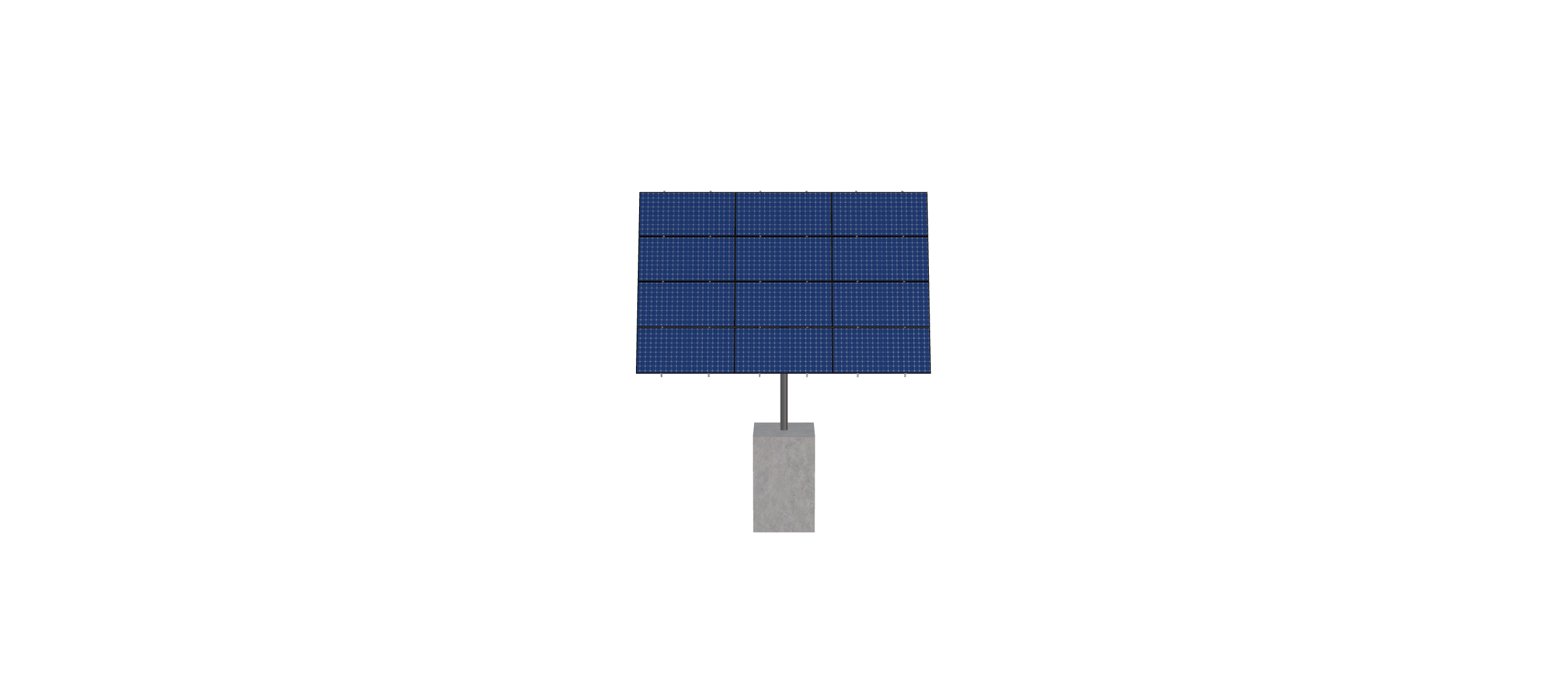

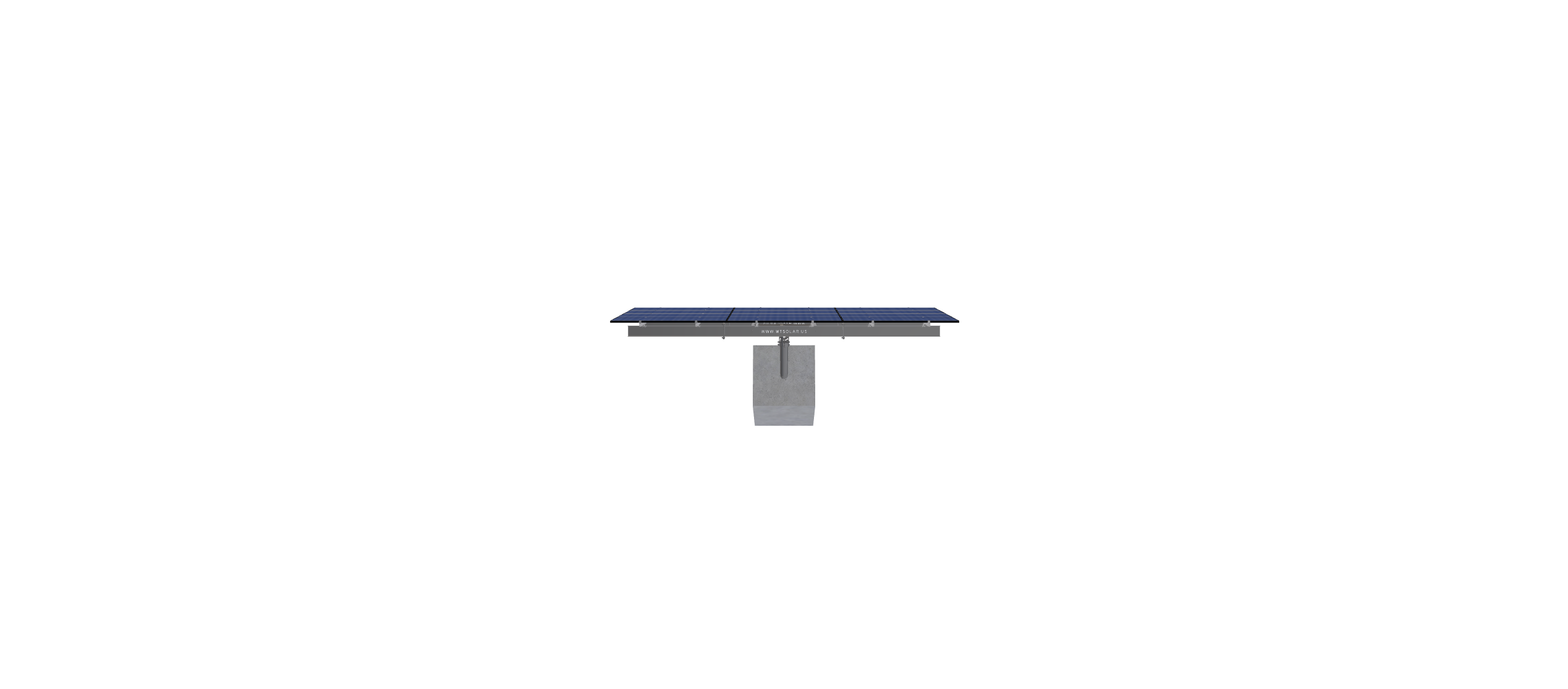

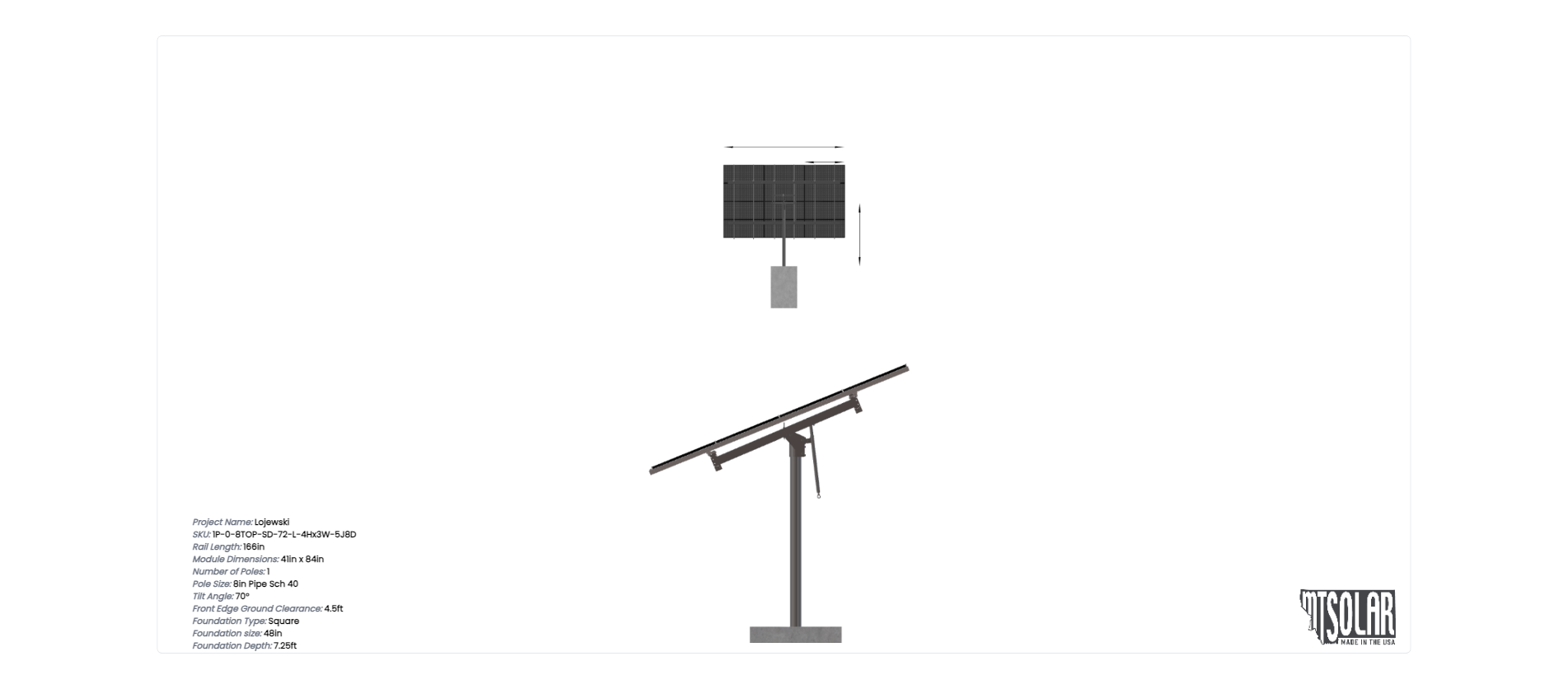

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-8TOP-SD-72-L-4Hx3W-5J8D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 759.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-72-L-4HX3W-5J8D

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.00

WING SPAN

72.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

70.00

CANTILEVER

234.00

GROUND CLEARANCE

4.50

NO POLES

1.00

MODULE AREA

293.96

ARRAY WIDTH

21.25

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

84.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

17.42

PROJECTED PANEL HEIGHT

12.84

DESIGNER NAME

LEV

DESIGNER EMAIL

TAMMY@907SOLAR.COM

DESIGNER PHONE
PROJECT ID

LOJEWSKI

SITE ADDRESS

26045, RINGLER, CIR, WILLOW, AK, 99688, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

100.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4245.09

TOTAL WEIGHT

759.66

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/c6b2fc1d-15f8-49b3-be21-bd7f52ad21ae.pdf

ID

7812.00
