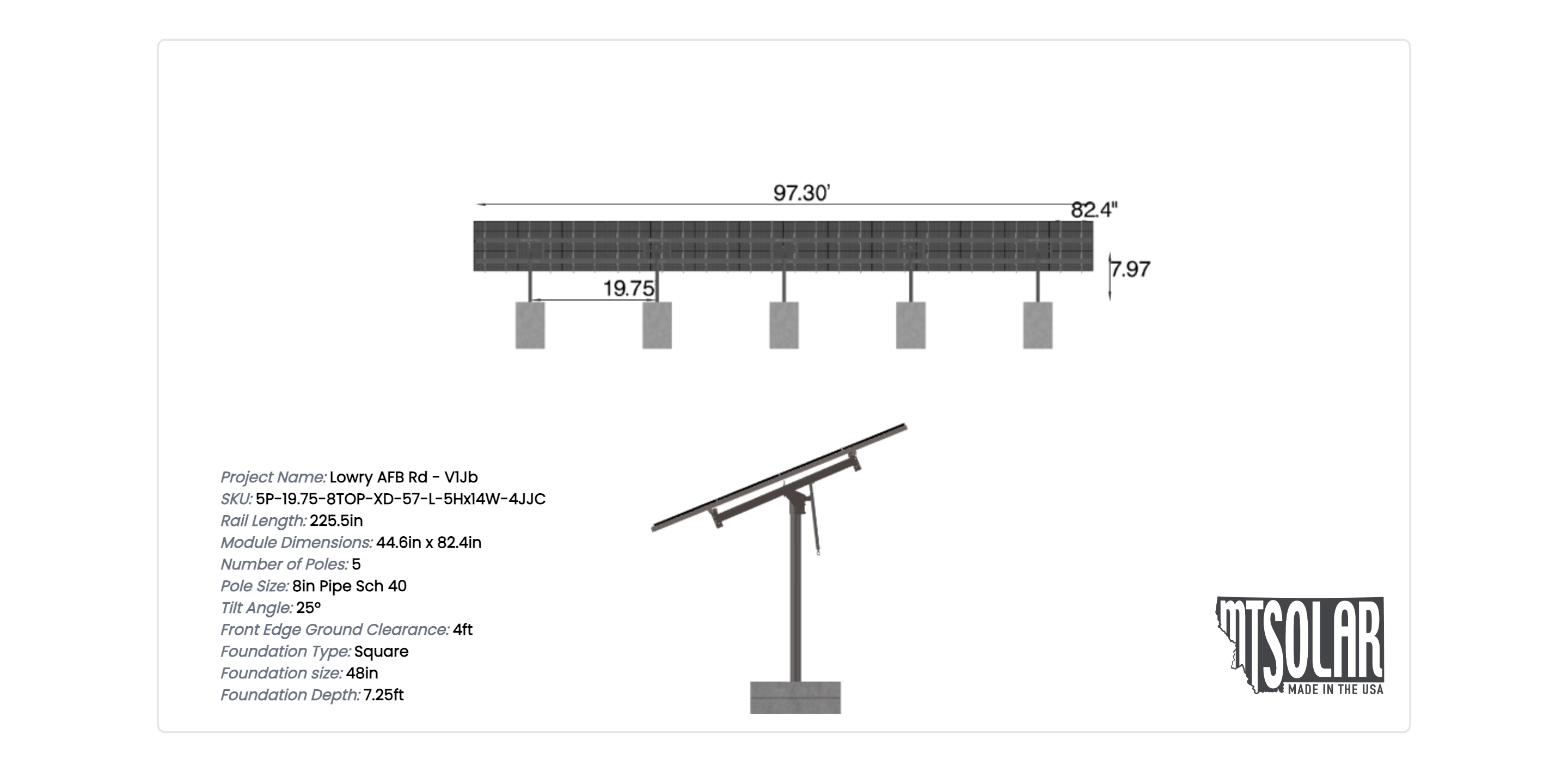

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 44.6 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

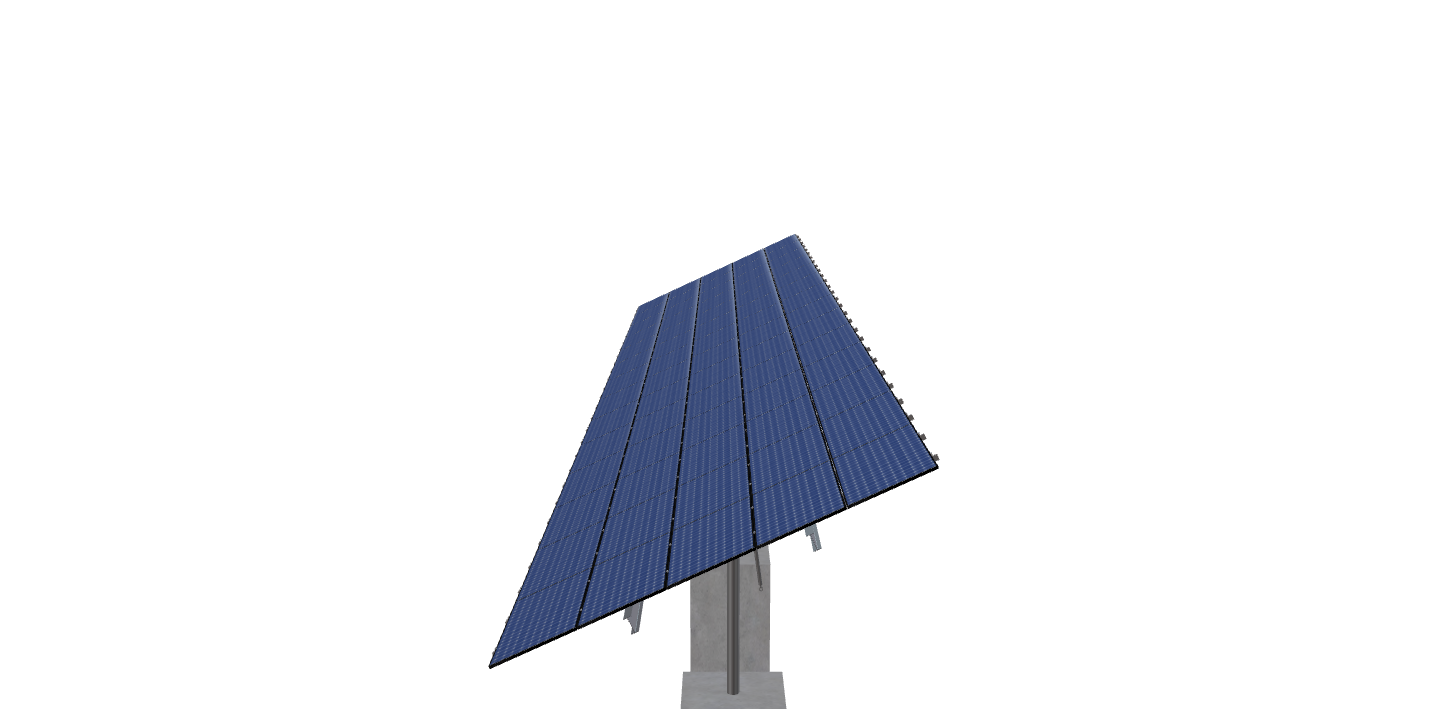

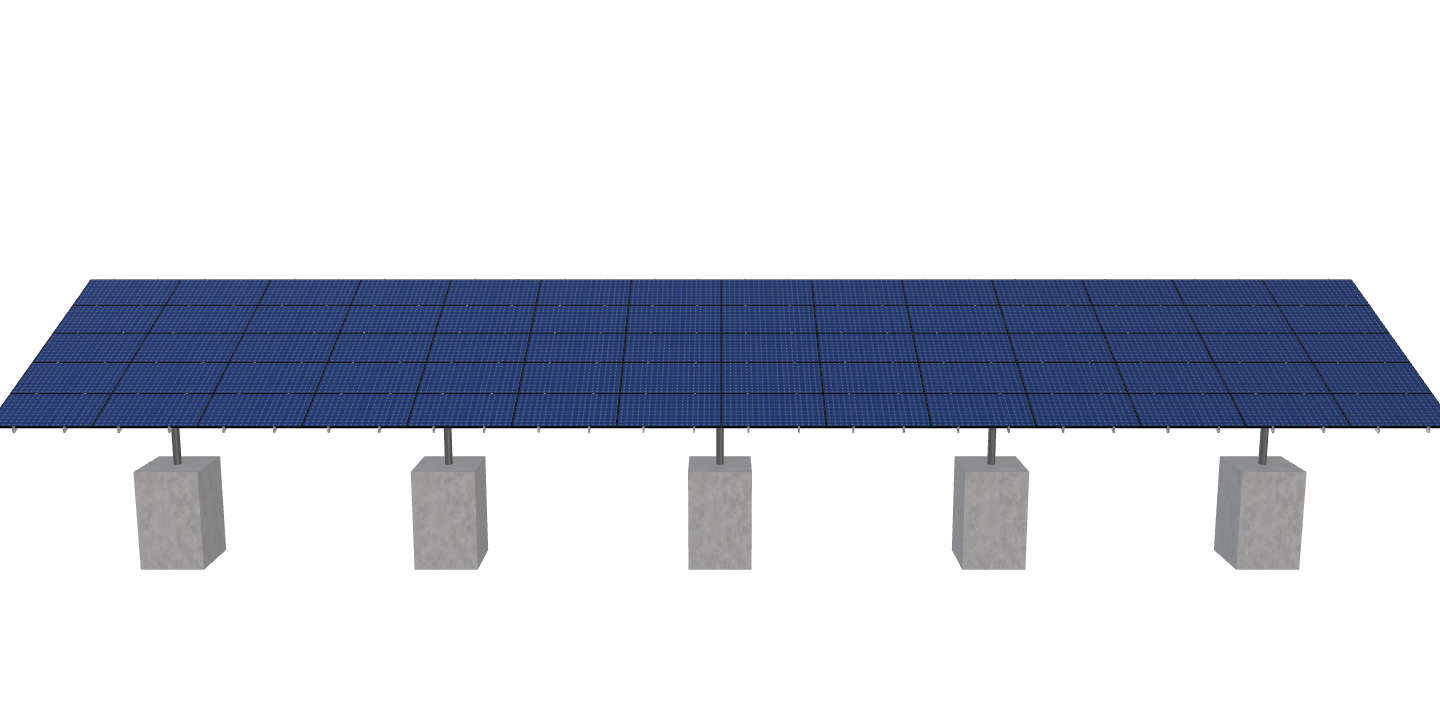

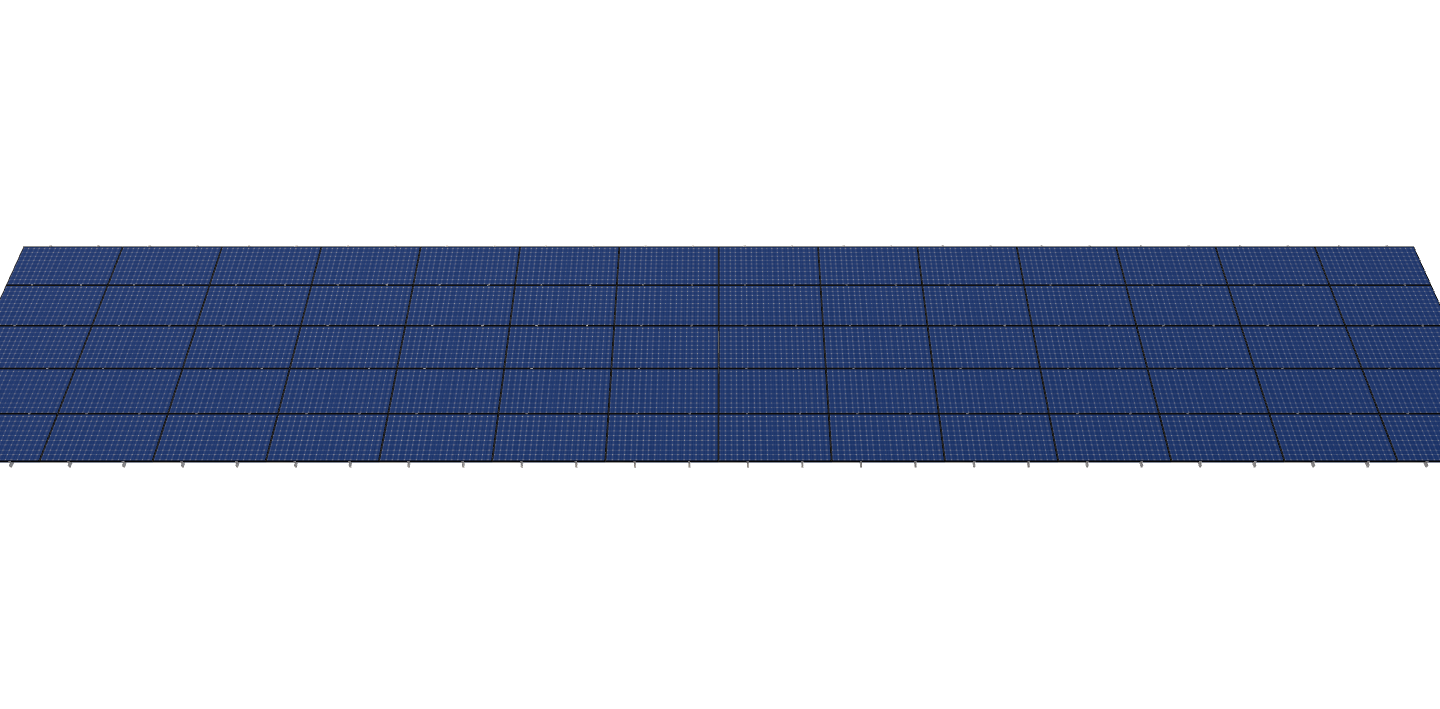

See 3D Model Here
Lowry AFB Rd – V1Jb
$30,888.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 44.6 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5966.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-XD-57-L-5HX14W-4JJC |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.97 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1828.43 |
| ARRAY WIDTH | 97.30 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 82.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 11.90 |
| PROJECTED PANEL HEIGHT | 7.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | LOWRY, AFB, RD, -, V1JB |
| SITE ADDRESS | CAMP, RD, SOUTH, CAROLINA, 29592, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29417.62 |
| TOTAL WEIGHT | 5966.31 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/9f1a14b7-cf40-4ab5-96b5-be04f0b0fc73.pdf |
|
| ID | 7806.00 |
| 3D Solar link |
