This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 43.15 inches and an array layout of 5 high by 10 wide.
This mount fits on 4 – 6in Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

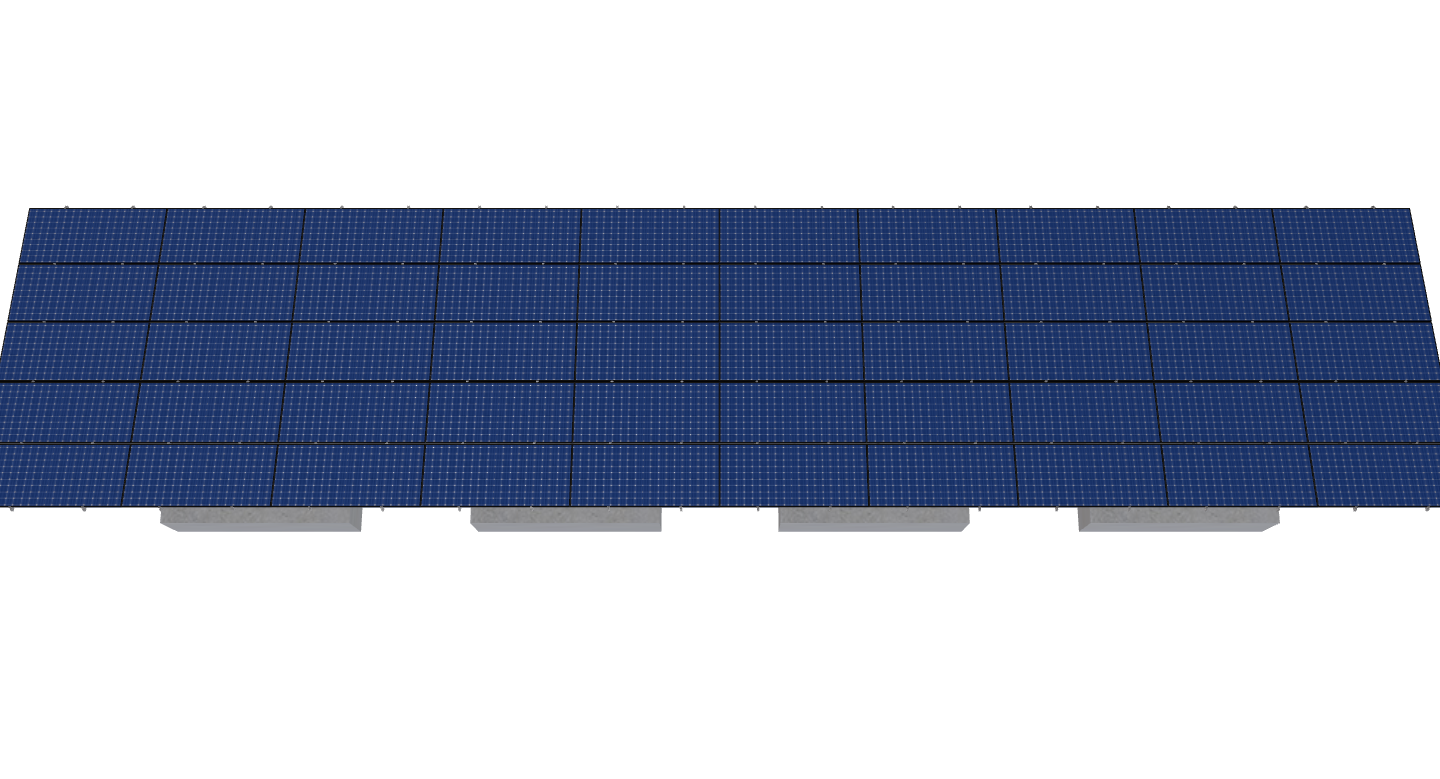

See 3D Model Here
Madison Recreation Complex Solar Carport – Area 2 x4
$20,511.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 43.15 inches and an array layout of 5 high by 10 wide.
This mount fits on 4 – 6in Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4146.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-72-L-5HX10W-IHC8 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.11 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 3.25 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1437.72 |
| ARRAY WIDTH | 79.05 |
| ARRAY HEIGHT | 18.19 |
| RAIL LENGTH | 218.25 |
| MODULE LENGTH | 93.86 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 16.20 |
| PROJECTED PANEL HEIGHT | 2.19 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MADISON, RECREATION, COMPLEX, SOLAR, CARPORT, -, 4P, -, 5X10, -, 19SPACING, REVA, -, JB |
| SITE ADDRESS | 300, WOOLLEY, DR, MARSHALL, MI, 49068, USA |
| MODULE WIDTH | 43.15 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 138.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20511.12 |
| TOTAL WEIGHT | 4146.54 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/0b2bdc25-91eb-4172-b6cb-b2acc1df944f.pdf |
|
| ID | 5635.00 |
| 3D Solar link |
