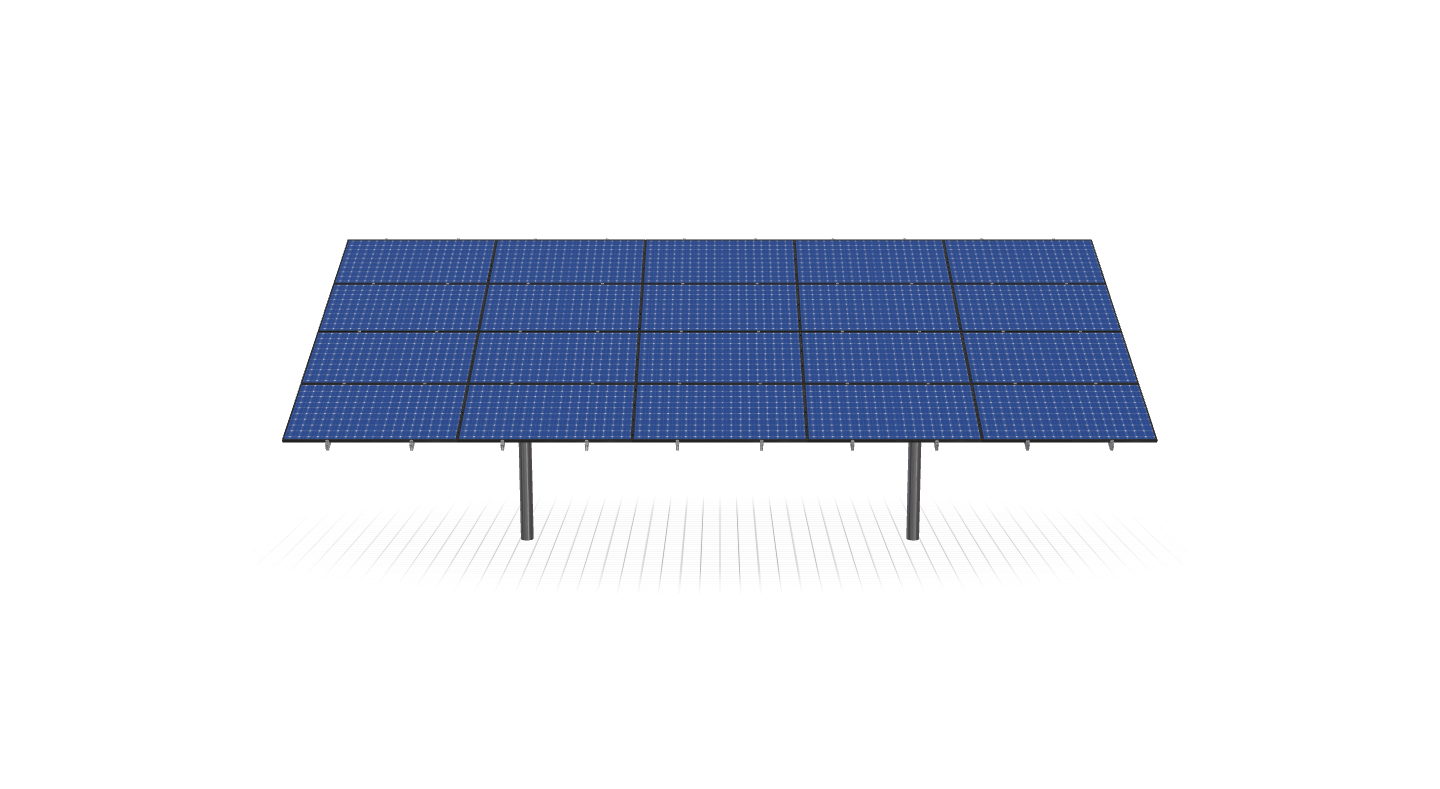

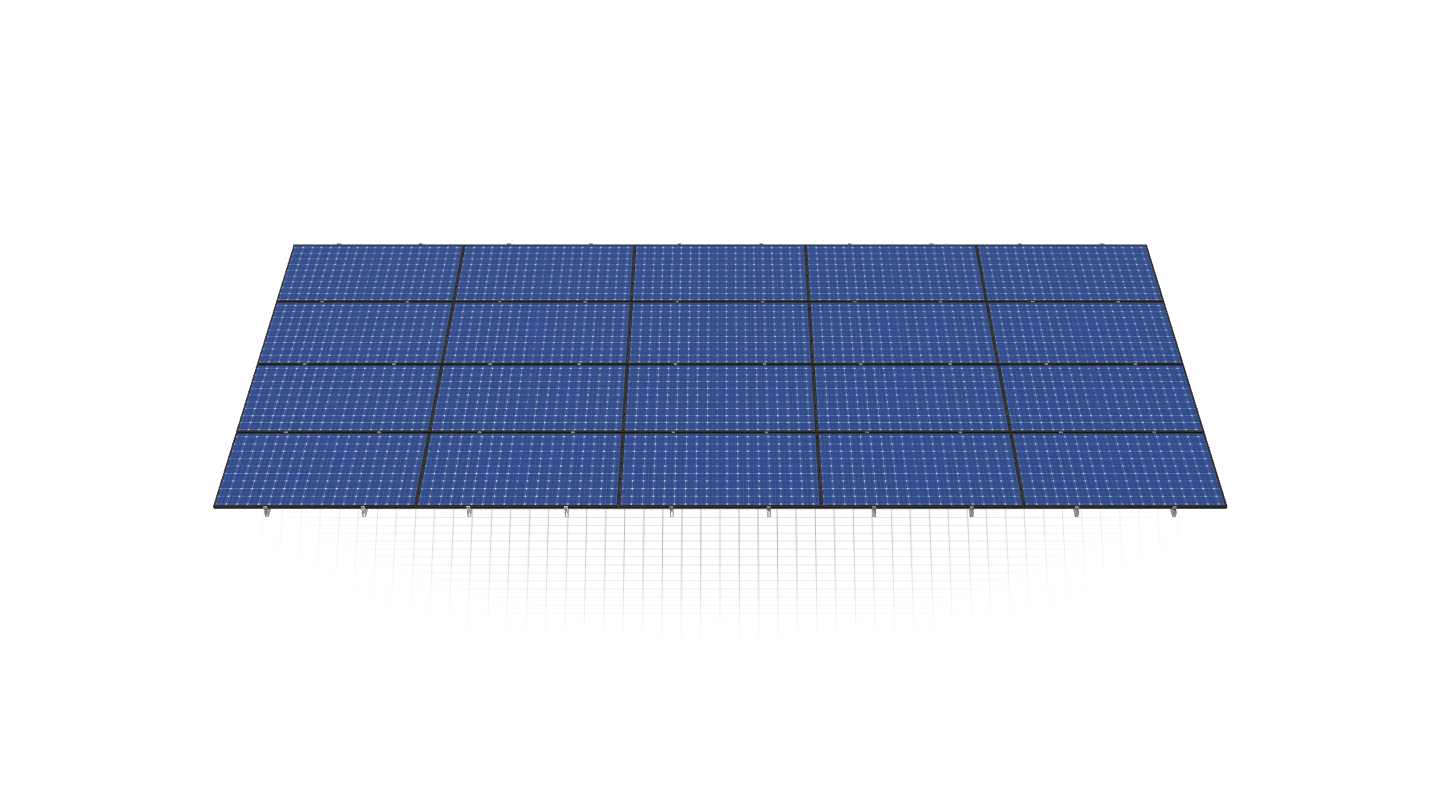

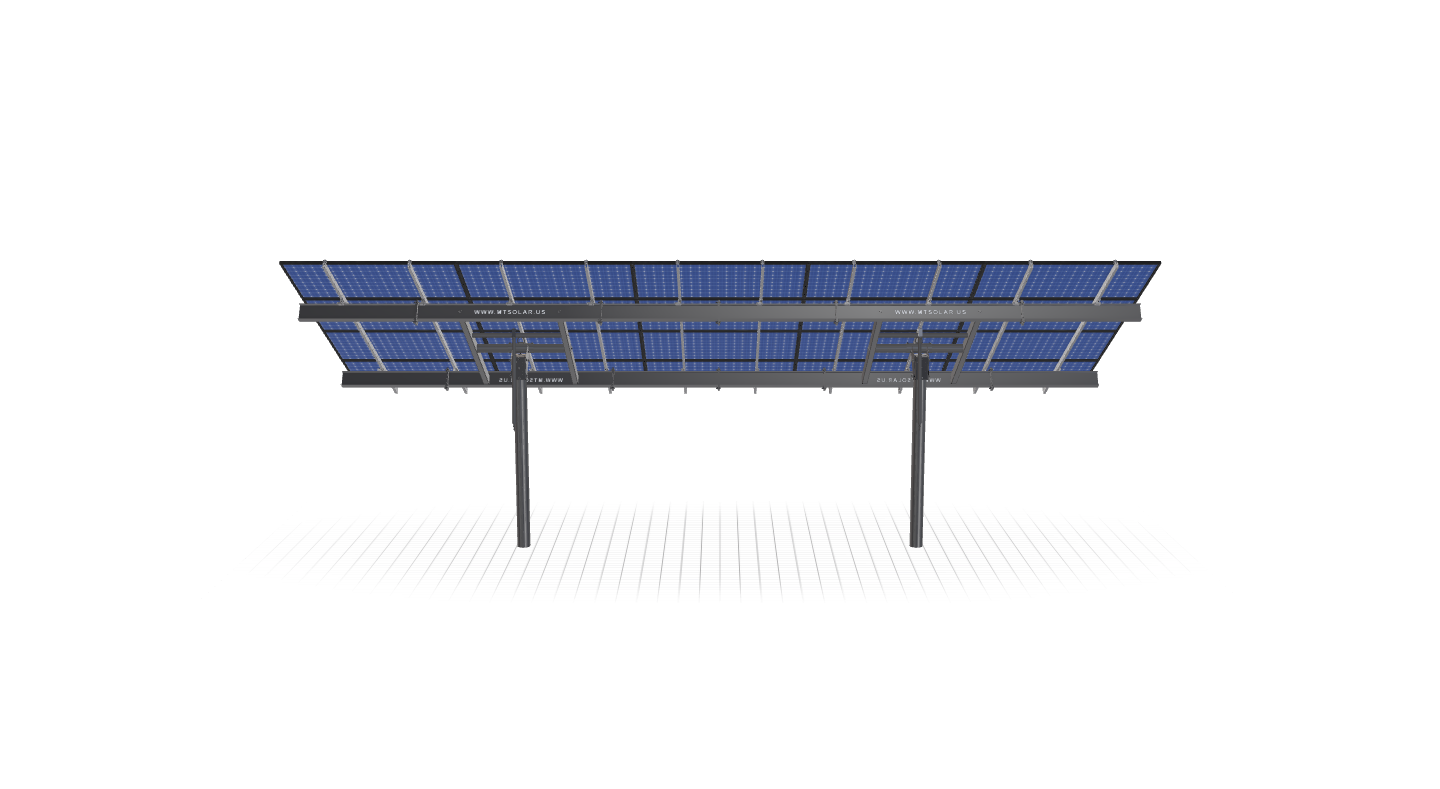

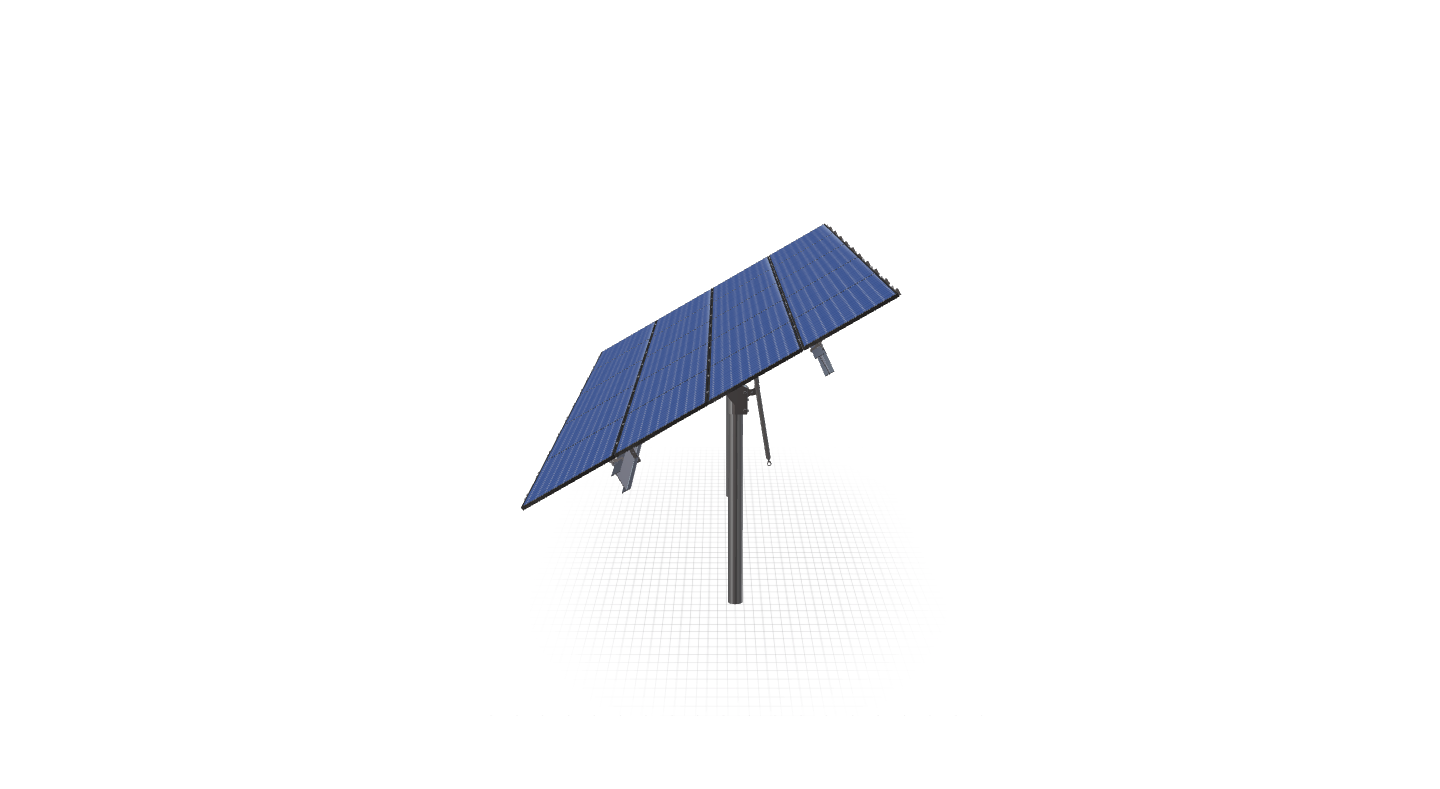

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.6 inches by 42.2 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MarkRobertsResidence-RevB
$9,443.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.6 inches by 42.2 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1660.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-57-L-4HX5W-KHB8 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.56 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 489.86 |
| ARRAY WIDTH | 34.42 |
| ARRAY HEIGHT | 14.23 |
| RAIL LENGTH | 170.80 |
| MODULE LENGTH | 81.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 12.07 |
| PROJECTED PANEL HEIGHT | 7.03 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MARKROBERTSRESIDENCE-REVB |
| SITE ADDRESS | 166, COTTAGE, ST, NATICK, MA, 01760, USA |
| MODULE WIDTH | 42.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 8994.07 |
| TOTAL WEIGHT | 1660.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7978b9b0-74ad-4b74-8e62-987bf3890546.pdf |
|
| ID | 989.00 |
| 3D Solar link |
