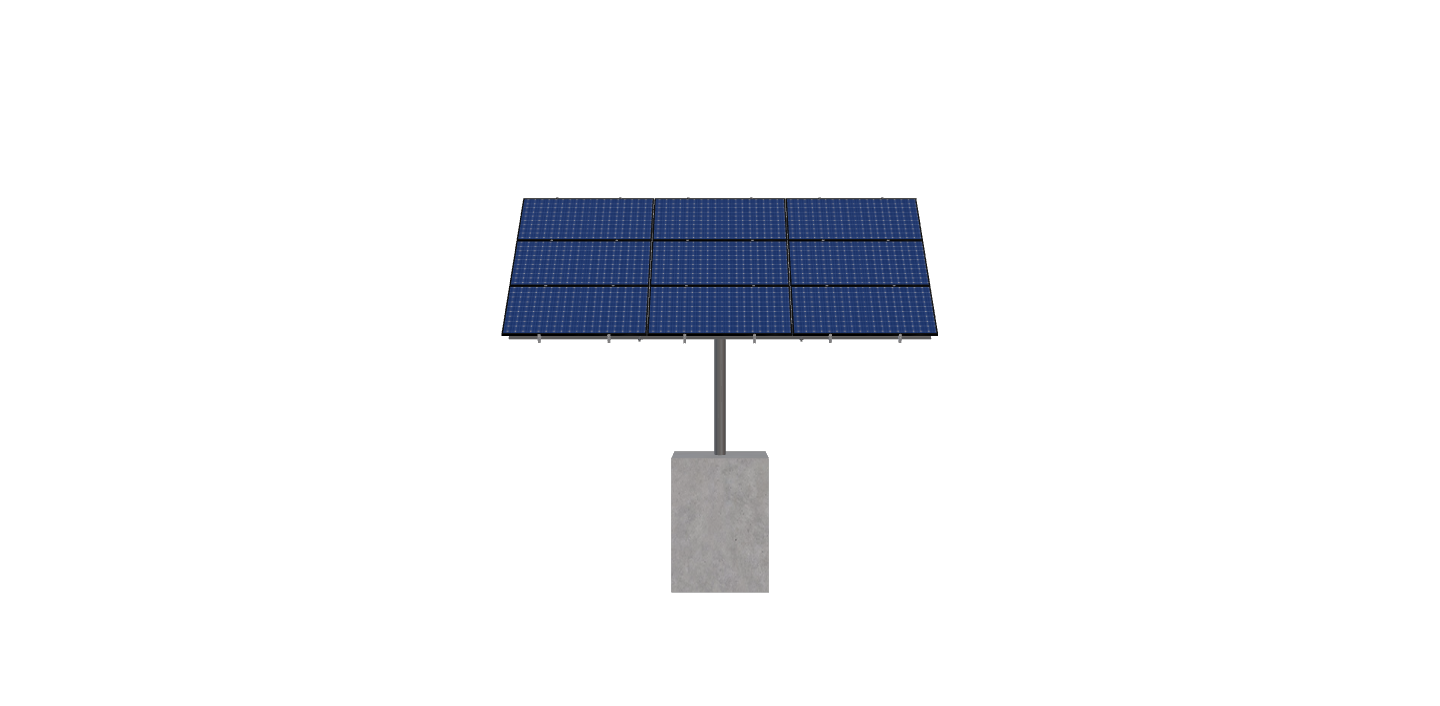

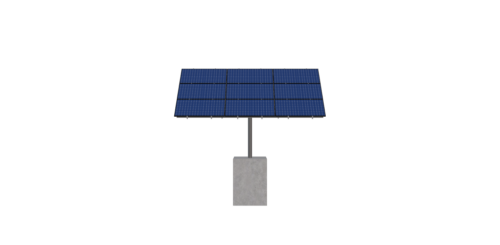

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.27 inches by 39.57 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Marney Electric A
$4,329.44
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.27 inches by 39.57 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 819.0500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-72-L-3HX3W-K13E |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.54 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 198.52 |
| ARRAY WIDTH | 19.82 |
| ARRAY HEIGHT | 10.02 |
| RAIL LENGTH | 120.21 |
| MODULE LENGTH | 78.27 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 12.04 |
| PROJECTED PANEL HEIGHT | 7.00 |
| PROJECT ID | MARNEY, ELECTRIC, A |
| SITE ADDRESS | GOSHEN, MA, 01032, USA |
| MODULE WIDTH | 39.57 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 84.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4329.44 |
| TOTAL WEIGHT | 819.05 |
| TOTAL PALLETS | 1.00 |
