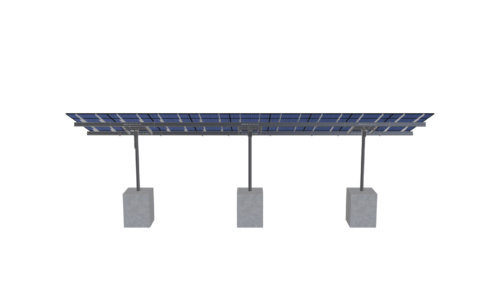

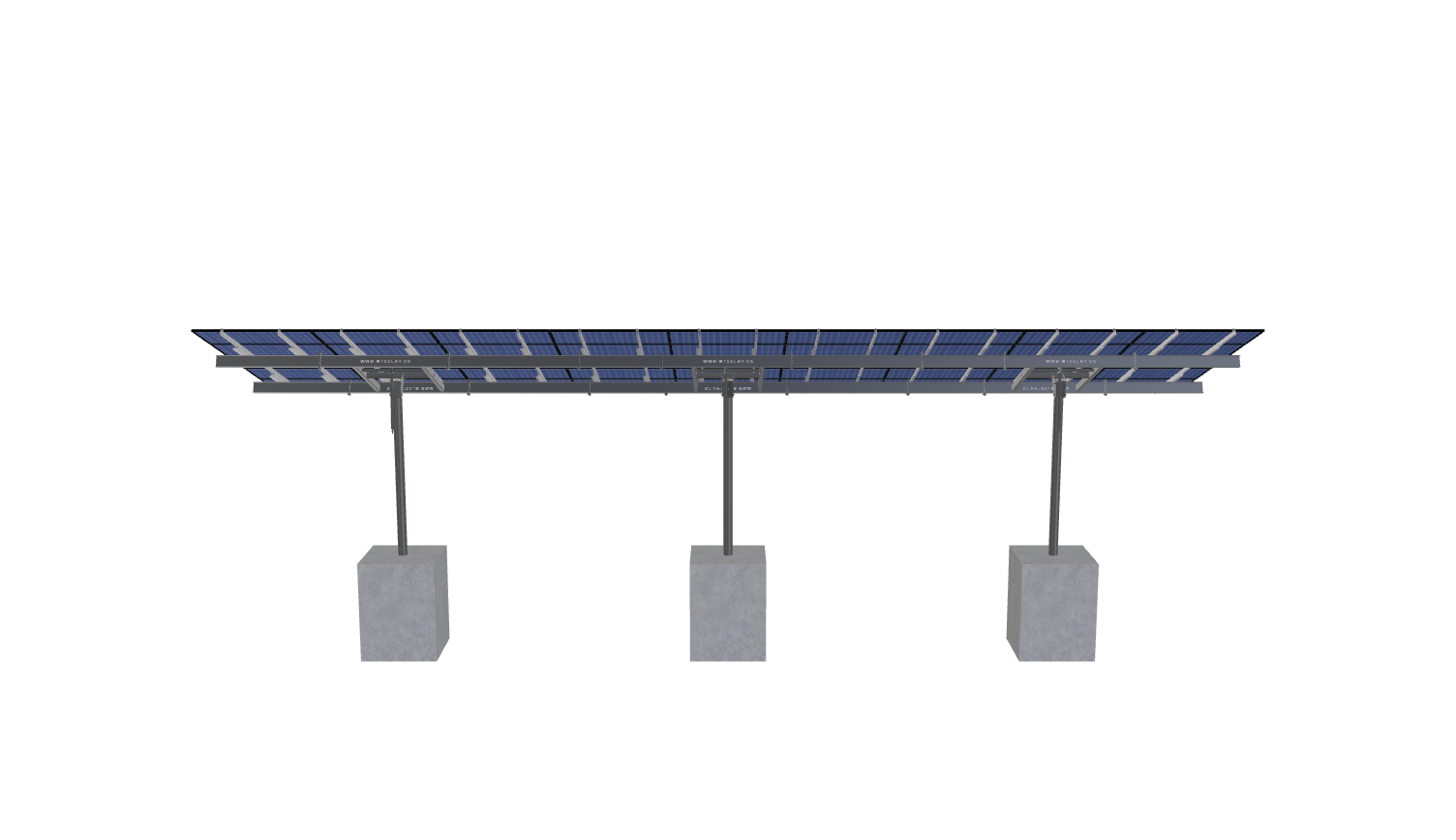

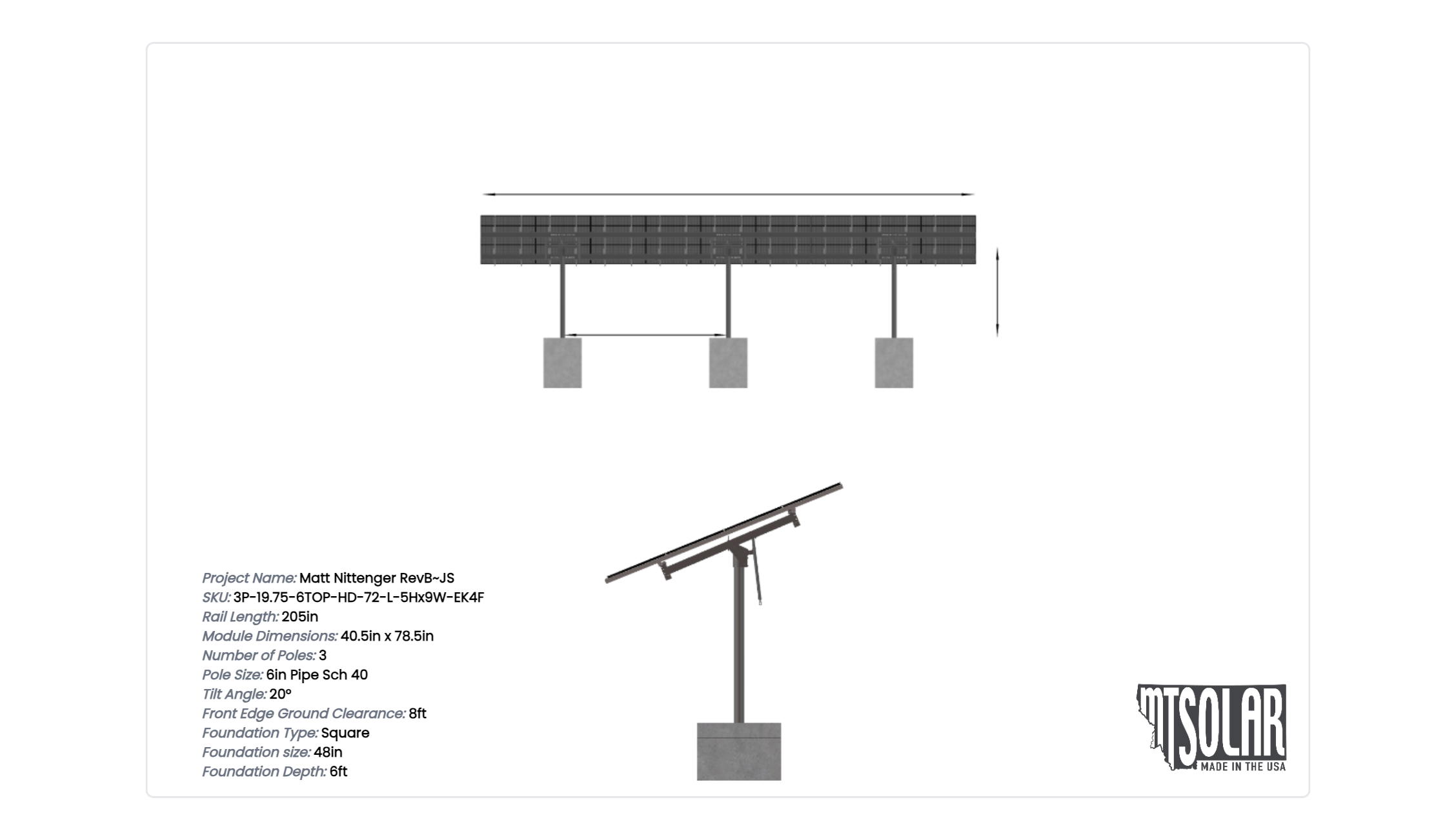

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 40.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Matt Nittenger RevB~JS
$16,884.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 40.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3253.61 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-HD-72-L-5HX9W-EK4F |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.92 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 708.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1018.59 |
| ARRAY WIDTH | 59.63 |
| ARRAY HEIGHT | 17.08 |
| RAIL LENGTH | 205.00 |
| MODULE LENGTH | 78.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 59.00 |
| GROUND TO TOP | 13.81 |
| PROJECTED PANEL HEIGHT | 5.77 |
| WIND SPEED OVERRIDE | 88.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MATT, NITTENGER, REVB~JS |
| SITE ADDRESS | 3810, SKYHAWK, LN, VACAVILLE, CA, 95688, USA |
| MODULE WIDTH | 40.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16080.86 |
| TOTAL WEIGHT | 3253.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/86a17179-570c-4b11-ba04-2938dc01f761.pdf |
|
| ID | 4831.00 |
| 3D Solar link |
