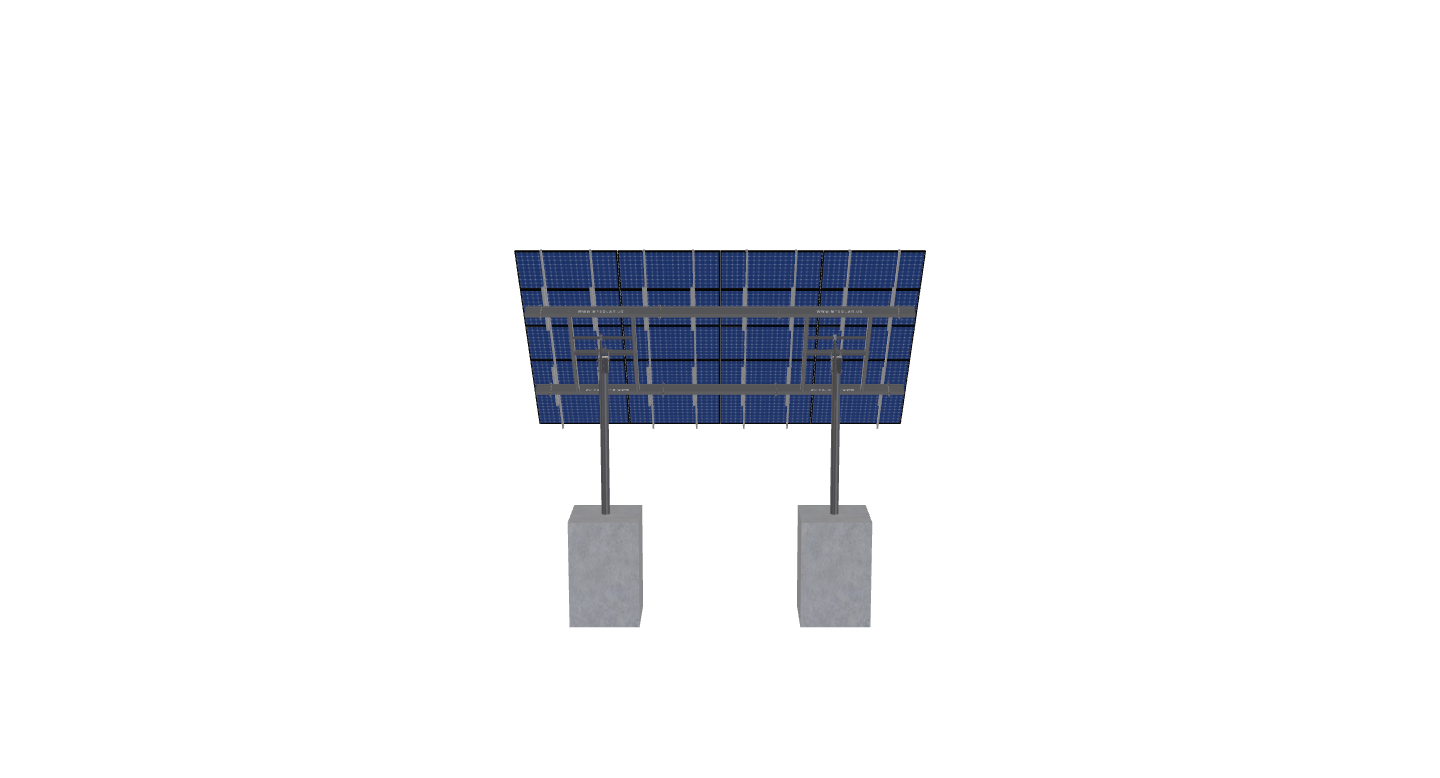

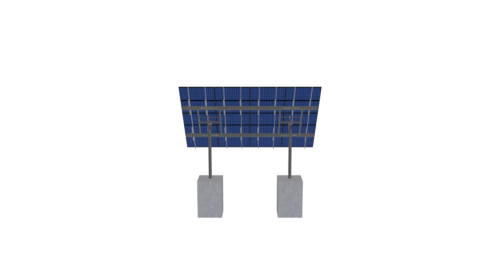

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

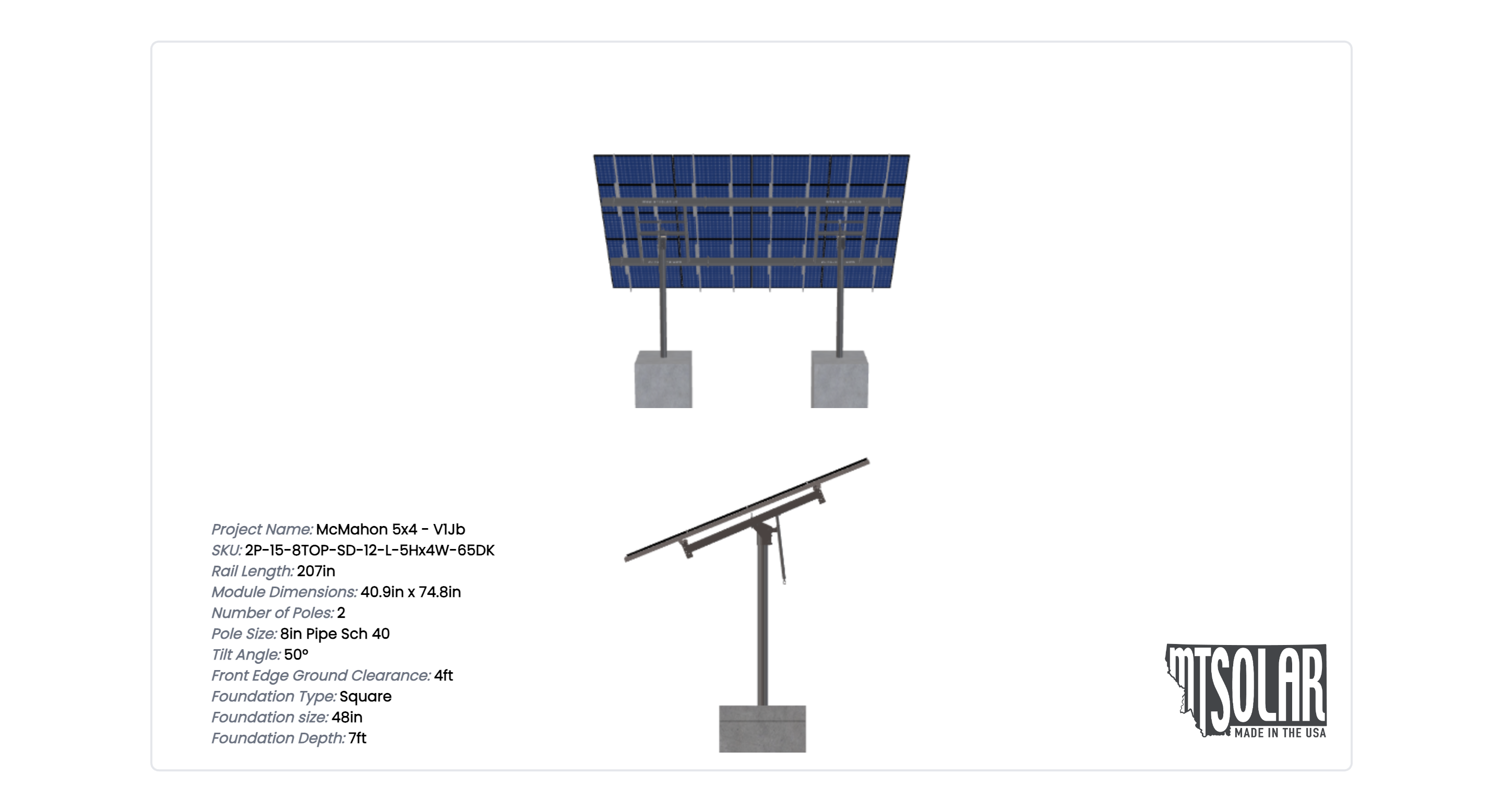

See 3D Model Here
McMahon 5×4 – V1Jb
$7,954.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1442.26 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-SD-12-L-5HX4W-65DK |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.61 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 435.85 |
| ARRAY WIDTH | 25.27 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 17.21 |
| PROJECTED PANEL HEIGHT | 13.21 |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ANDREW, PERKINS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7079232001.00 |
| PROJECT ID | MCMAHON, 5X4, -, V1JB |
| SITE ADDRESS | 228, BURNS, CT, WHITETHORN, CA, 95589, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7575.84 |
| TOTAL WEIGHT | 1442.26 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/15949f8a-92cb-4298-9485-c66236673065.pdf |
|
| ID | 10614.00 |
| 3D Solar link |
