Medford United Church of Christ – V1Jb

$23,853.68

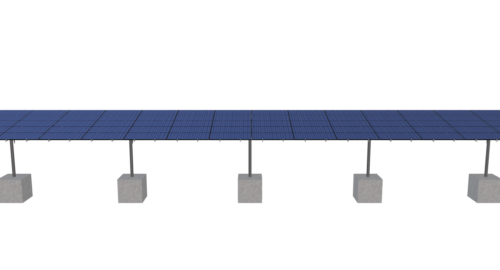

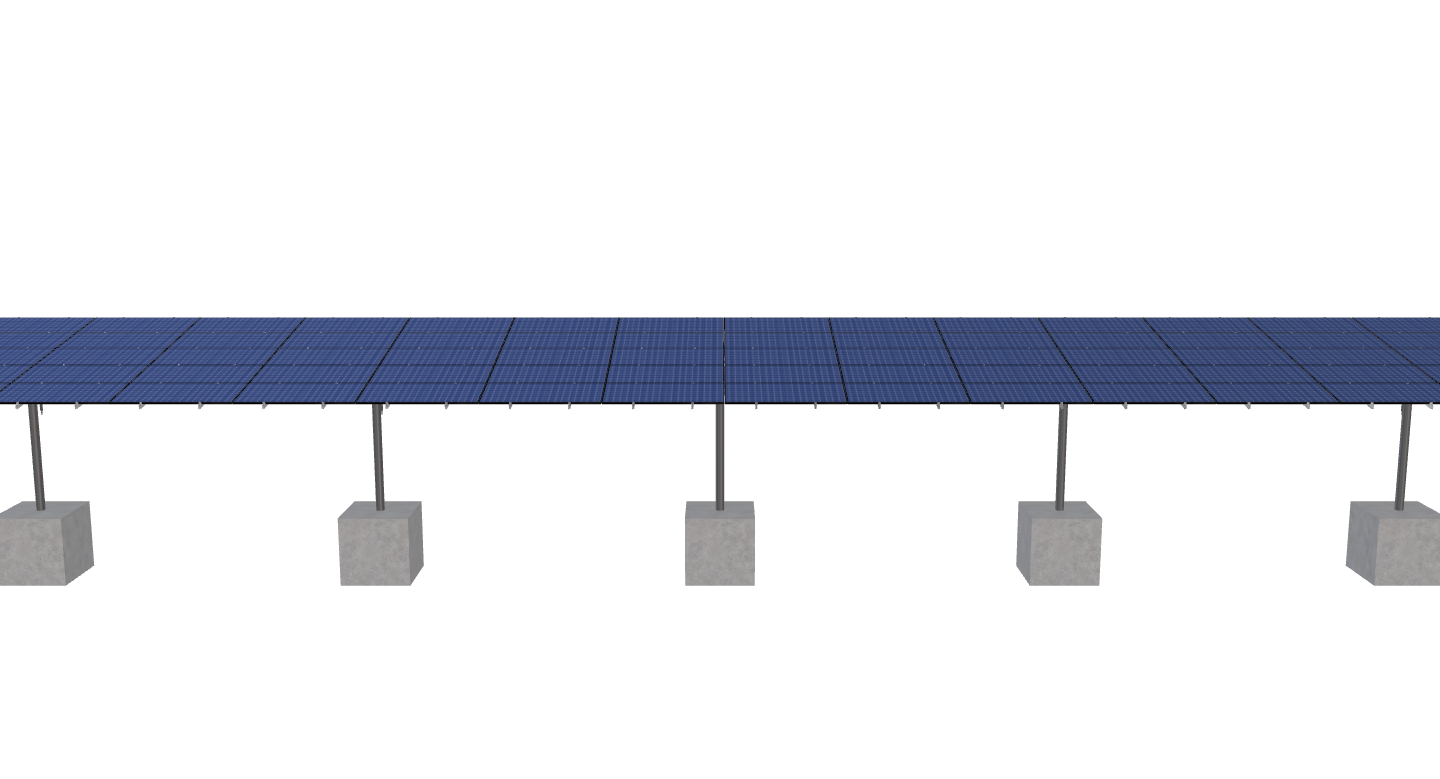

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 5P-22.5-6TOP-SD-24-L-5Hx14W-JF32 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4753.16 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-22.5-6TOP-SD-24-L-5HX14W-JF32

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

22.50

POLE HEIGHT

9.50

WING SPAN

24.00

MAX FOUNDATION DEPTH

4.50

TILT ANGLE

10.00

CANTILEVER

1218.00

GROUND CLEARANCE

8.00

NO POLES

5.00

MODULE AREA

1783.60

ARRAY WIDTH

102.90

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

101.50

GROUND TO TOP

10.99

PROJECTED PANEL HEIGHT

2.97

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MEDFORD, UNITED, CHURCH, OF, CHRIST, -, V1JB

SITE ADDRESS

1801, E, JACKSON, ST, MEDFORD, OR, 97504, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

14.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

23853.68

TOTAL WEIGHT

4753.16

TOTAL PALLETS

5.00

pdf

https://skycivquotes.s3.amazonaws.com/eda8cdf6-5ef3-4b72-a3bf-1c04a3883403.pdf

ID

6671.00
