This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

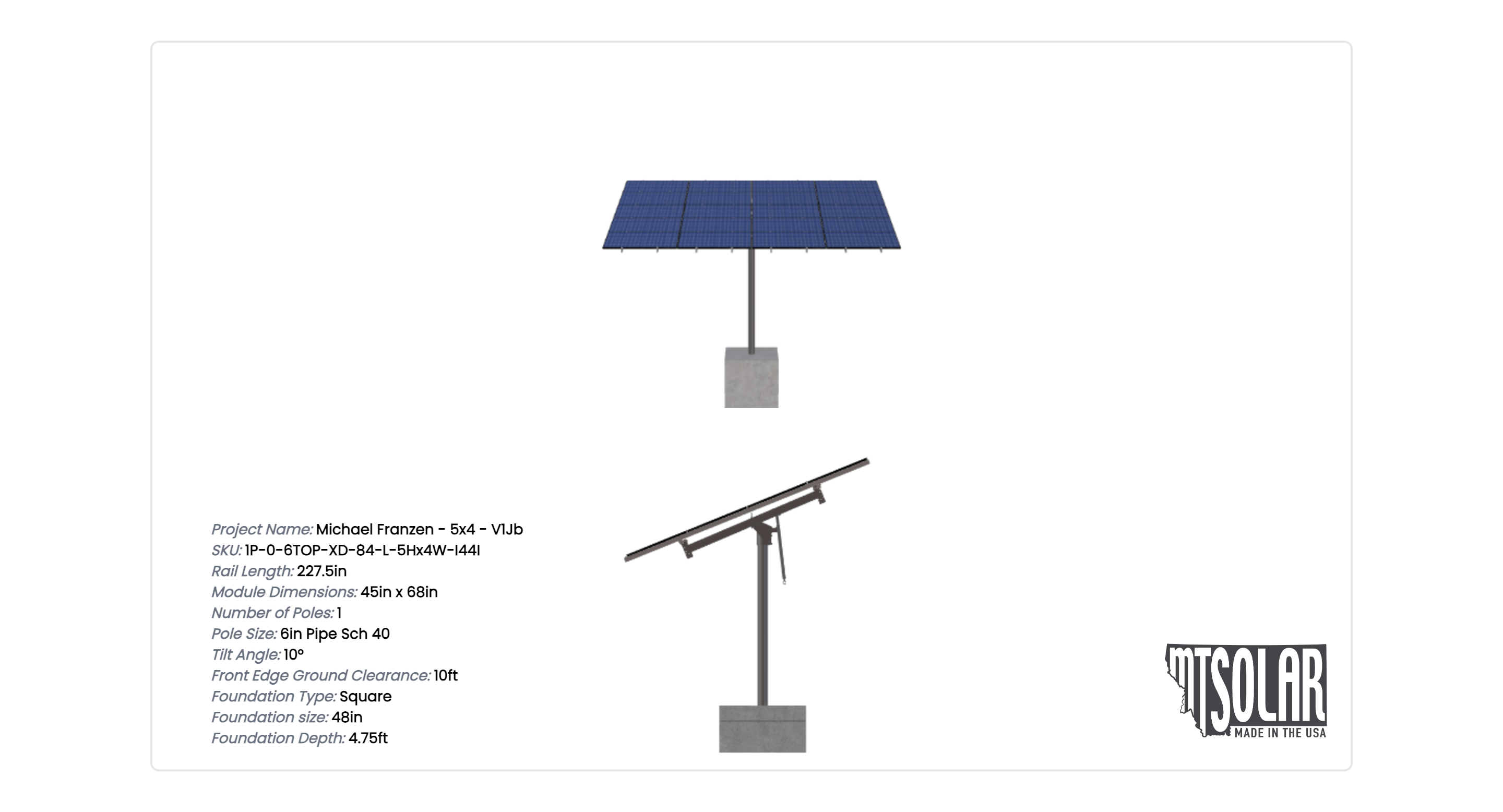

See 3D Model Here
Michael Franzen – 5×4 – V1Jb
$6,860.26
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1333.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-XD-84-L-5HX4W-I44I |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.65 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 436.04 |
| ARRAY WIDTH | 23.00 |
| ARRAY HEIGHT | 18.96 |
| RAIL LENGTH | 227.50 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 13.29 |
| PROJECTED PANEL HEIGHT | 3.29 |
| WIND SPEED OVERRIDE | 89.00 |
| SNOW LOAD OVERRIDE | 34.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MICHAEL, FRANZEN, -, 5X4, -, V1JB |
| SITE ADDRESS | 4520, CHAPPARAL, DR, PLACERVILLE, CA, 95667, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 6533.58 |
| TOTAL WEIGHT | 1333.21 |
| TOTAL PALLETS | 1.00 |
