MichaelBugola|Option1|8panels-JB-RevF

$3,553.00

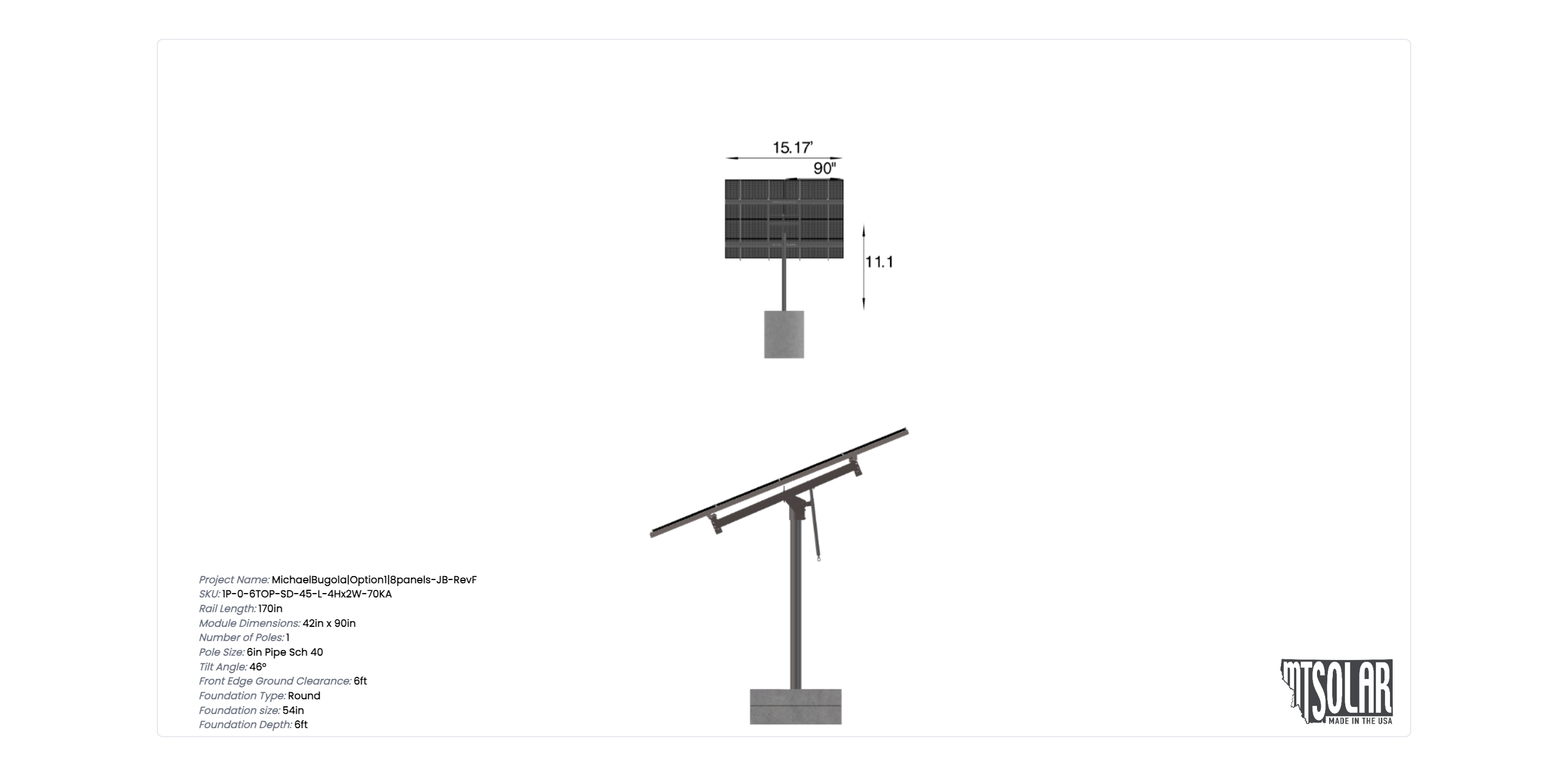

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 42 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

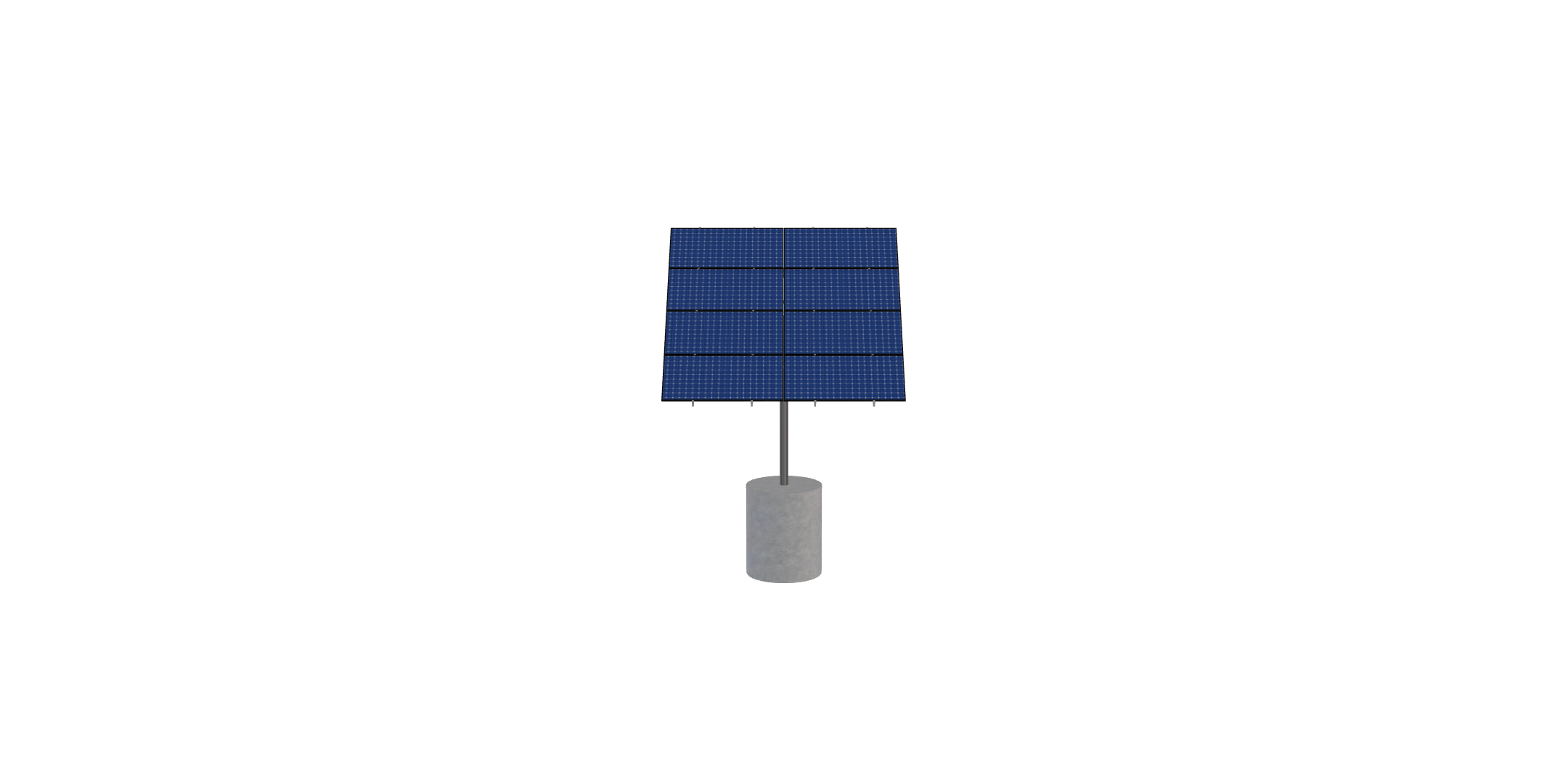

See 3D Model Here

SKU: 1P-0-6TOP-SD-45-L-4Hx2W-70KA Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 42 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 626.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-45-L-4HX2W-70KA

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.10

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

46.00

CANTILEVER

180.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

214.86

ARRAY WIDTH

15.17

ARRAY HEIGHT

14.17

RAIL LENGTH

170.00

MODULE LENGTH

90.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

15.00

GROUND TO TOP

16.13

PROJECTED PANEL HEIGHT

10.07

PROJECT ID

MICHAELBUGOLA, OPTION1, 8PANELS-JB-REVF

SITE ADDRESS

3030, FS, RD, 73, PRESCOTT, AZ, 86303, USA

MODULE WIDTH

42.00

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

54.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

95.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

TOTAL PRICE

3553.00

TOTAL WEIGHT

626.44

TOTAL PALLETS

1.00
