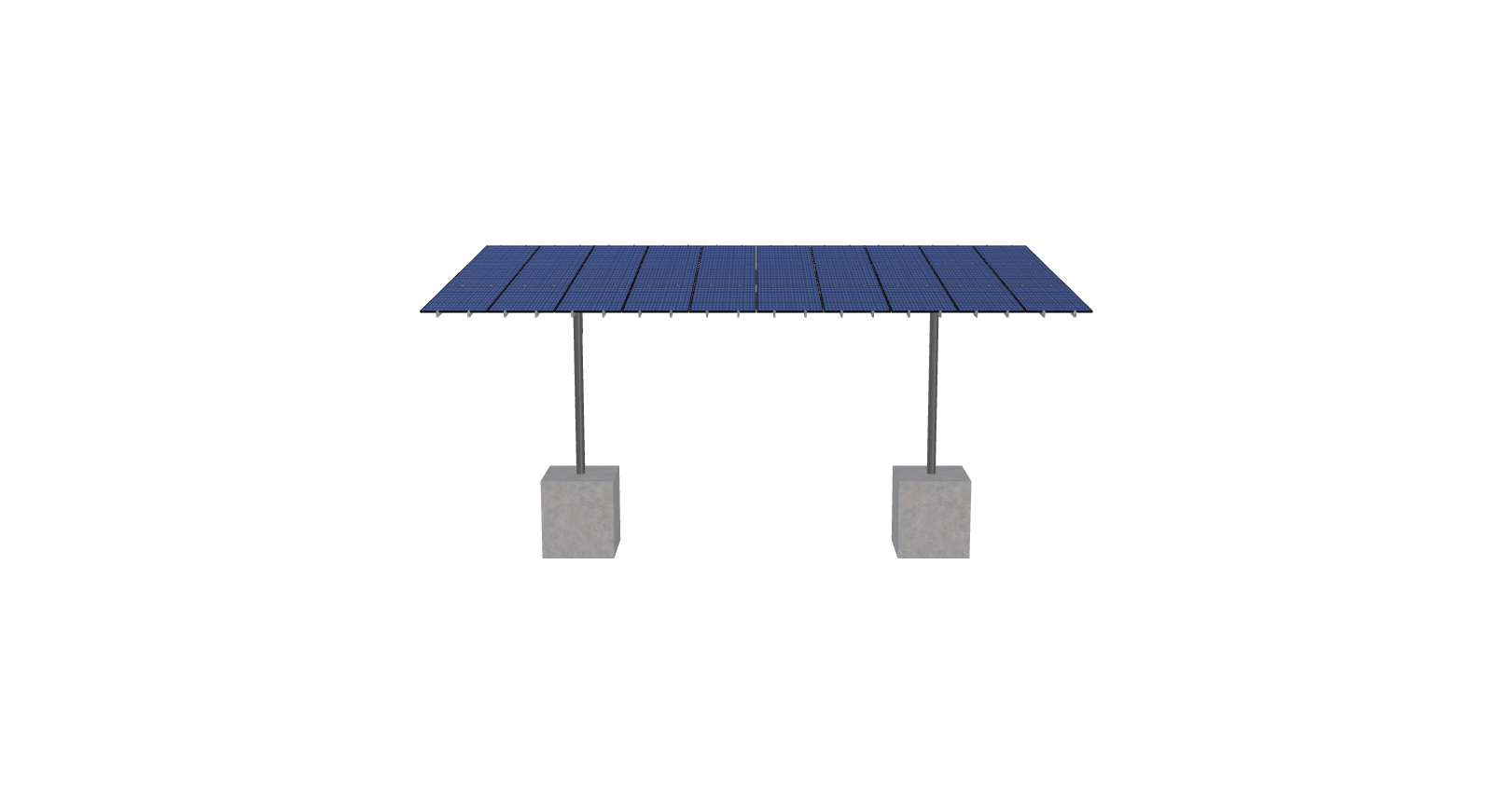

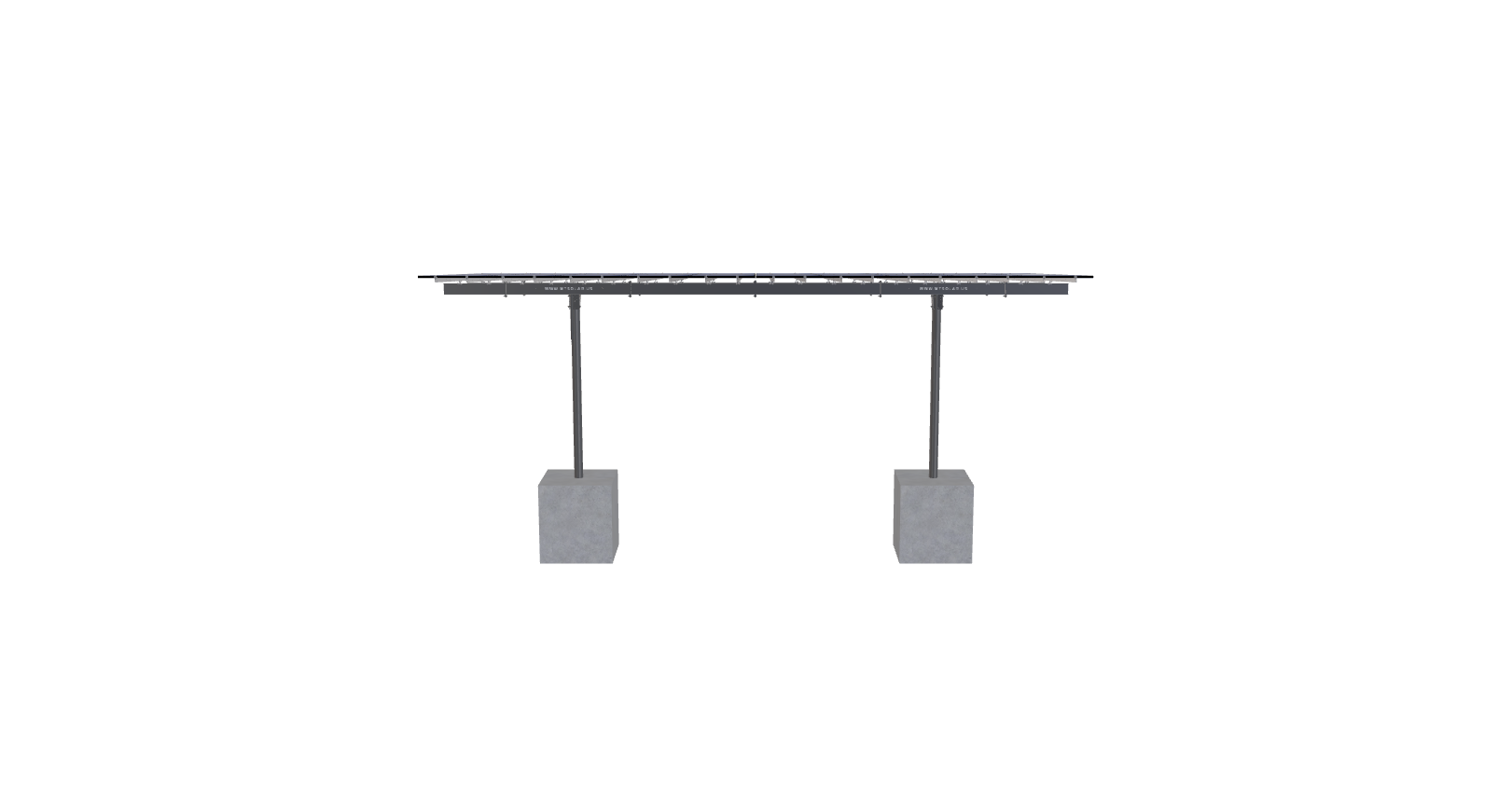

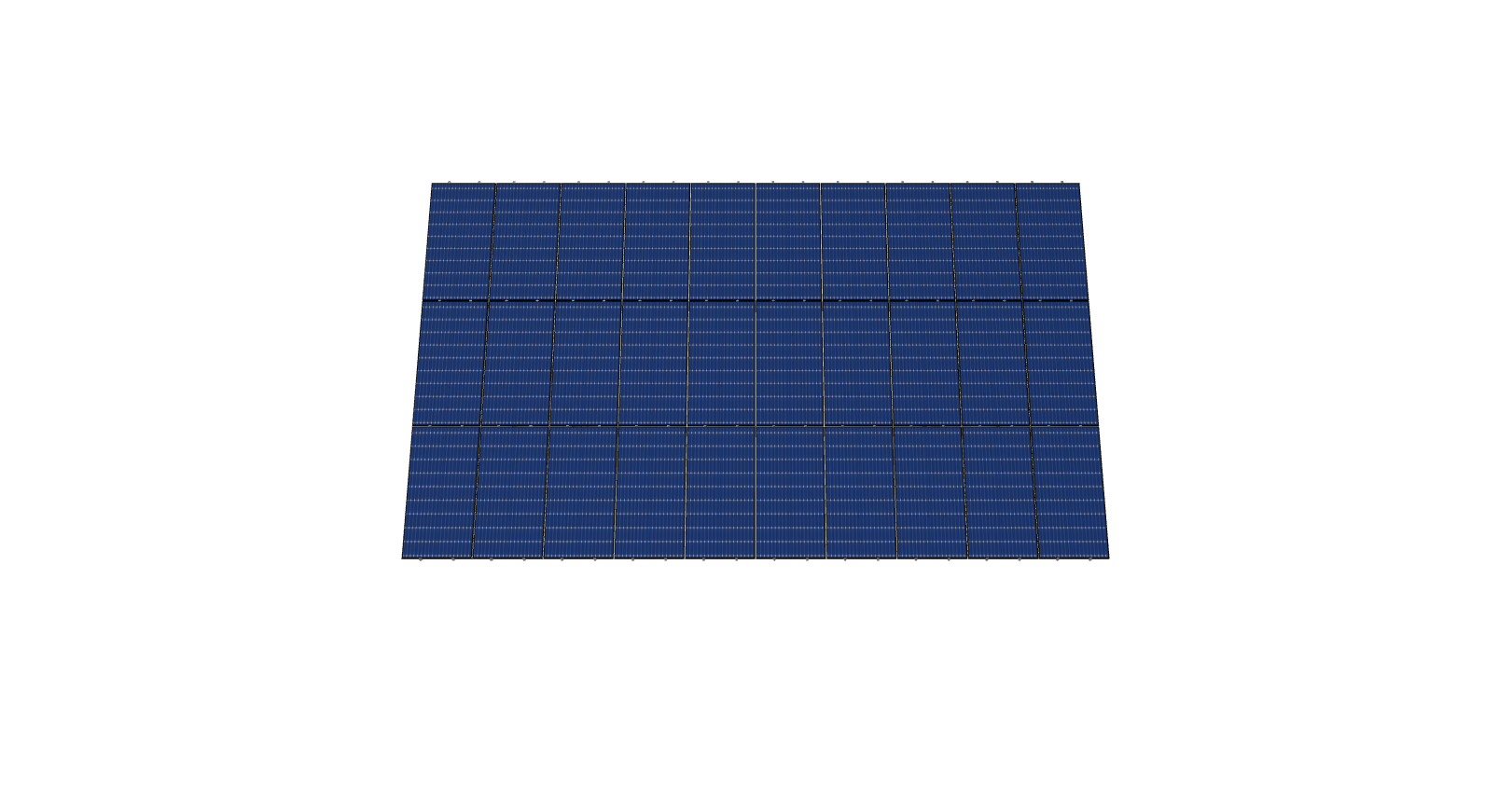

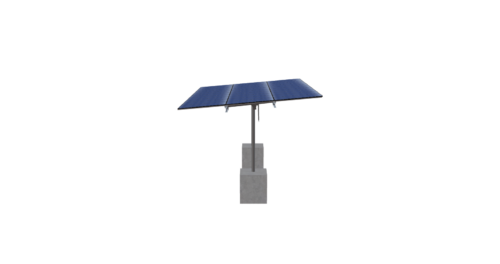

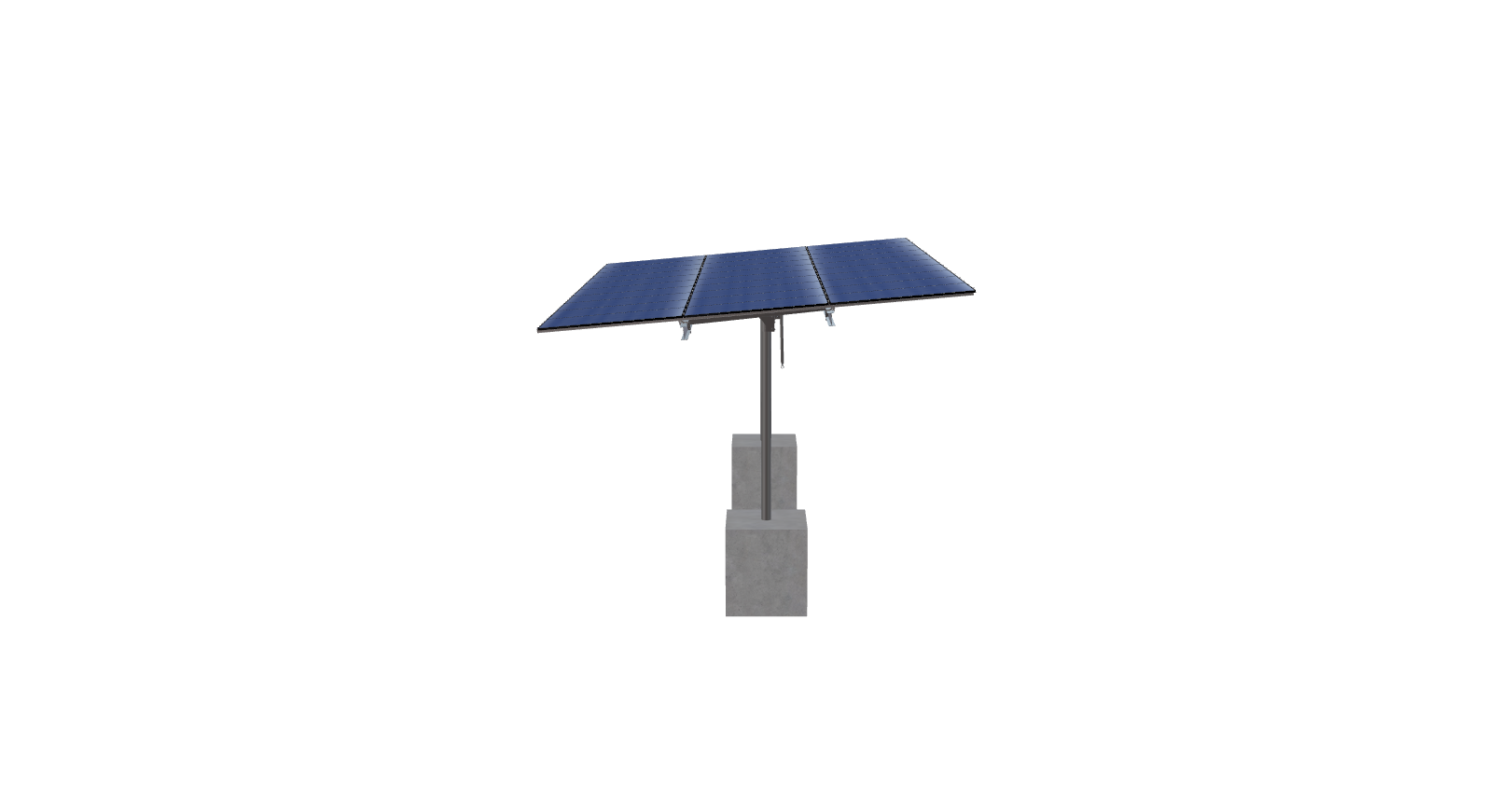

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.65 inches by 89.69 inches and an array layout of 10 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Miller Road Solar Structure
$9,439.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.65 inches by 89.69 inches and an array layout of 10 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1562.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-45-L-3HX10W-CKG2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.98 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 2.00 |
| MODULE AREA | 857.74 |
| ARRAY WIDTH | 38.04 |
| ARRAY HEIGHT | 22.55 |
| RAIL LENGTH | 270.57 |
| MODULE LENGTH | 44.65 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 12.97 |
| PROJECTED PANEL HEIGHT | 1.97 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JIM, KIRKLEN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 760-271-9404 |
| PROJECT ID | MILLER, ROAD, SOLAR, STRUCTURE |
| SITE ADDRESS | 28663, MILLER, RD, VALLEY, CENTER, CA, 92082, USA |
| MODULE INFO | THORNOVA, ZOSMA, BLACK |
| MODULE WIDTH | 89.69 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9439.74 |
| TOTAL WEIGHT | 1562.20 |
| TOTAL PALLETS | 2.00 |
