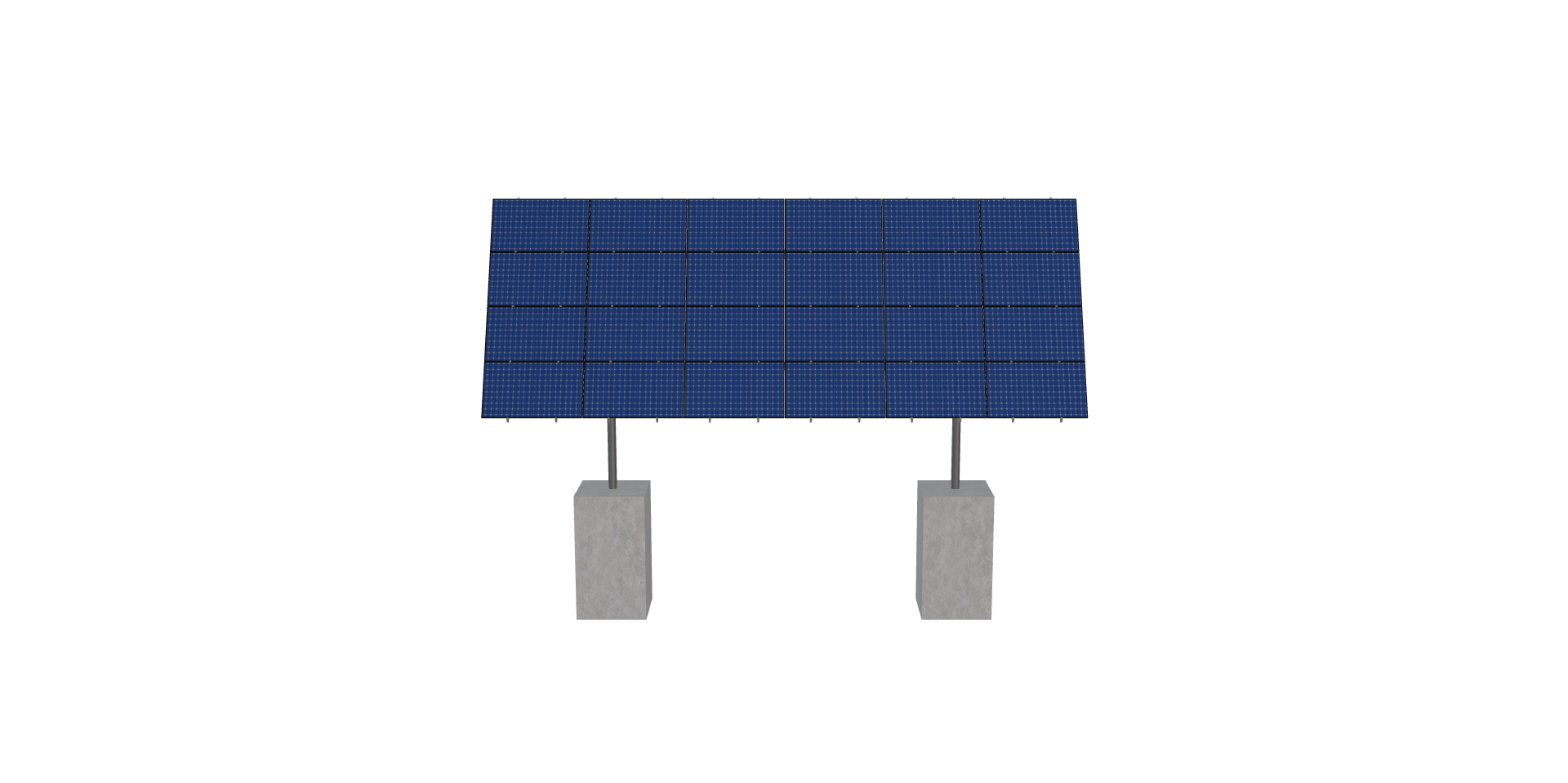

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.157 inches by 44.645 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Millhouse
$10,065.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.157 inches by 44.645 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1767.5 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-45-L-4HX6W-9AK0 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.82 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 573.02 |
| ARRAY WIDTH | 38.08 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.58 |
| MODULE LENGTH | 75.16 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 18.56 |
| PROJECTED PANEL HEIGHT | 13.49 |
| PROJECT ID | MILLHOUSE |
| SITE ADDRESS | 4341, S, PREFLIGHT, WY, WASILLA, AK, 99623, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 116.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9586.45 |
| TOTAL WEIGHT | 1767.50 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/794f036f-1684-4d01-9f6e-951dbad292fd.pdf |
|
| ID | 5601.00 |
| 3D Solar link |
