Molstead Motors Dodge-revD-JB

$16,892.73

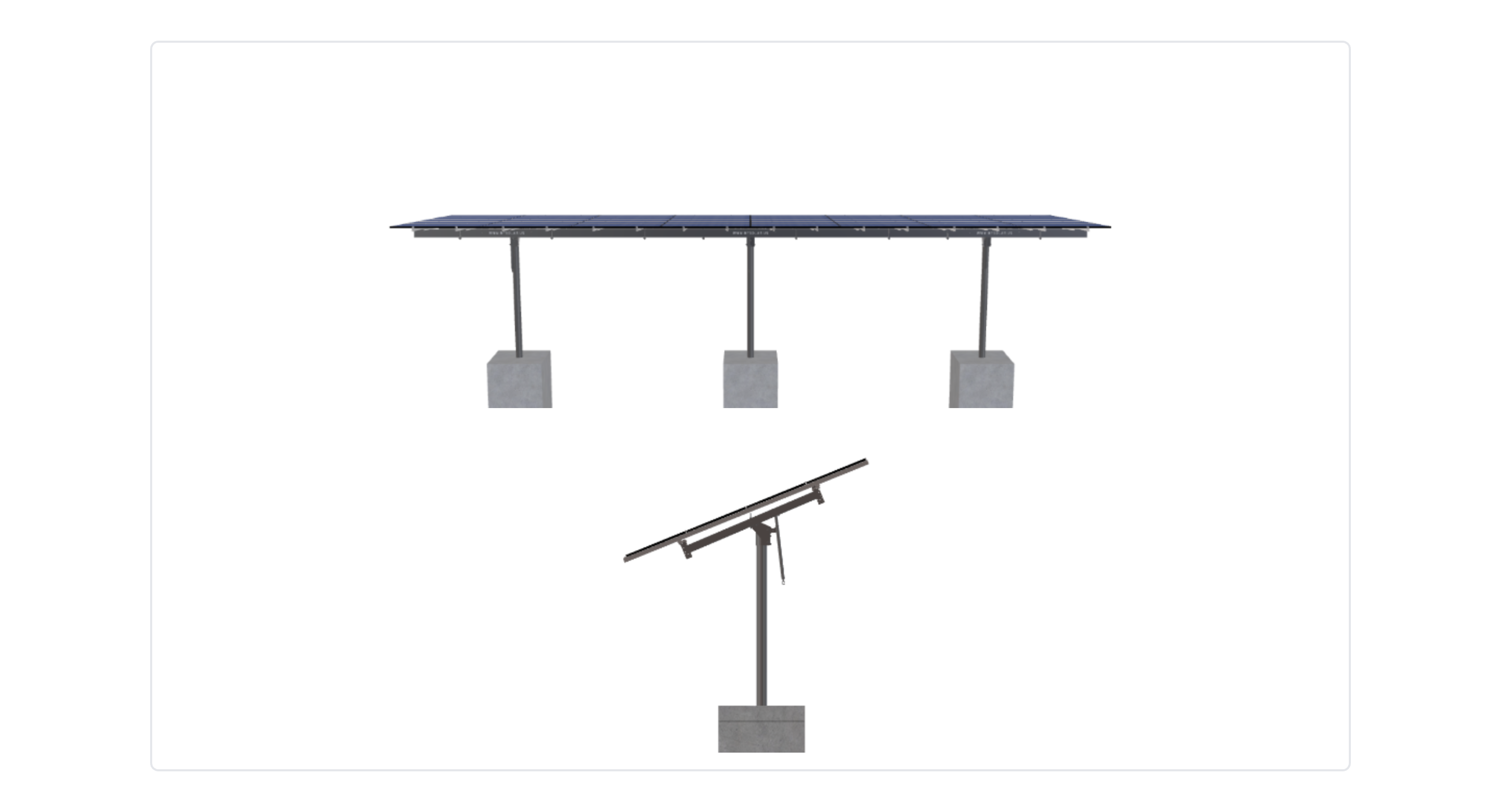

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-19.75-6TOP-XD-45-L-5Hx8W-2A4D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3406.37 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-6TOP-XD-45-L-5HX8W-2A4D

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

10.82

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

5.00

CANTILEVER

654.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

1046.48

ARRAY WIDTH

55.63

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

82.44

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

54.50

GROUND TO TOP

11.63

PROJECTED PANEL HEIGHT

1.62

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

35.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MOLSTEAD, MOTORS, DODGE-REVD-JB

SITE ADDRESS

1406, S, GRAND, AVE, CHARLES, CITY, IA, 50616, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

16892.73

TOTAL WEIGHT

3406.37

TOTAL PALLETS

3.00
