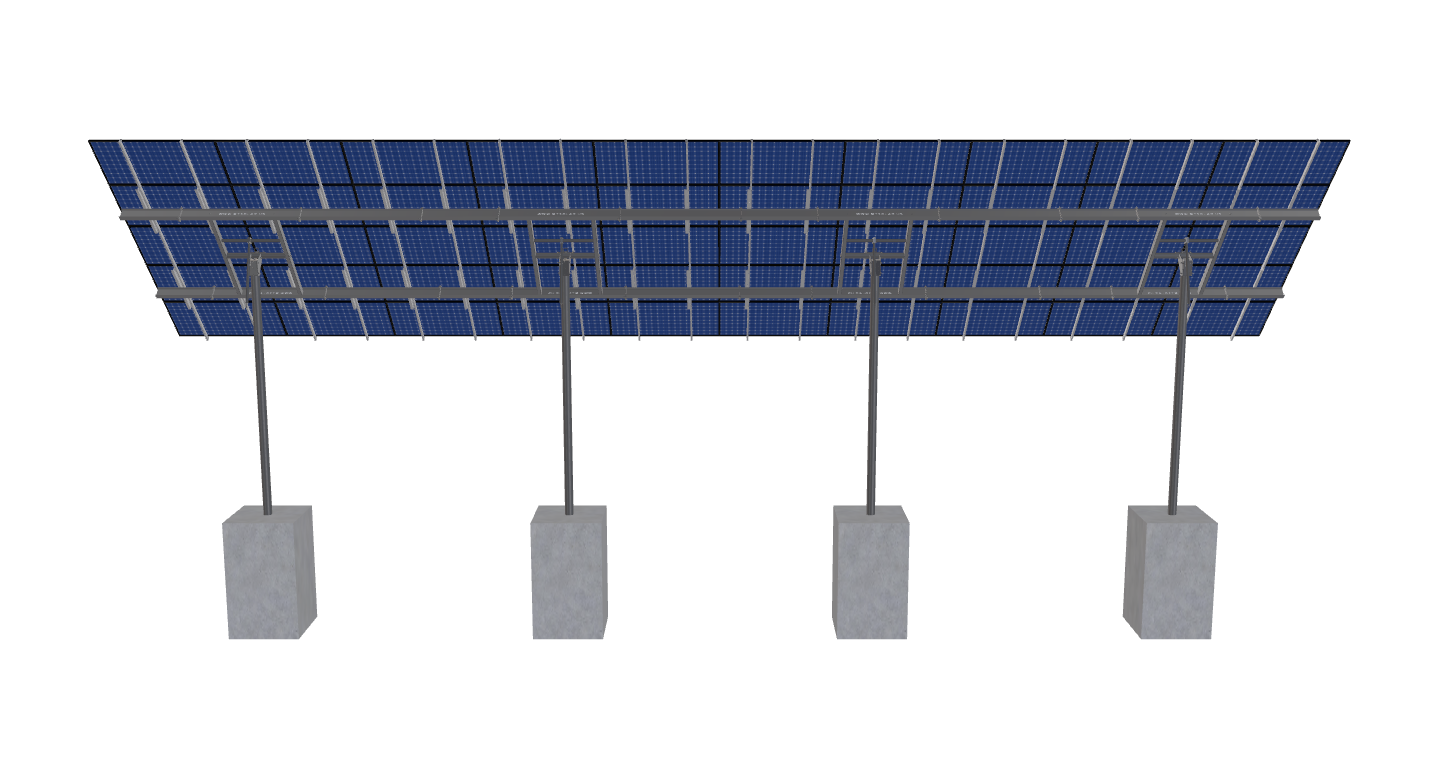

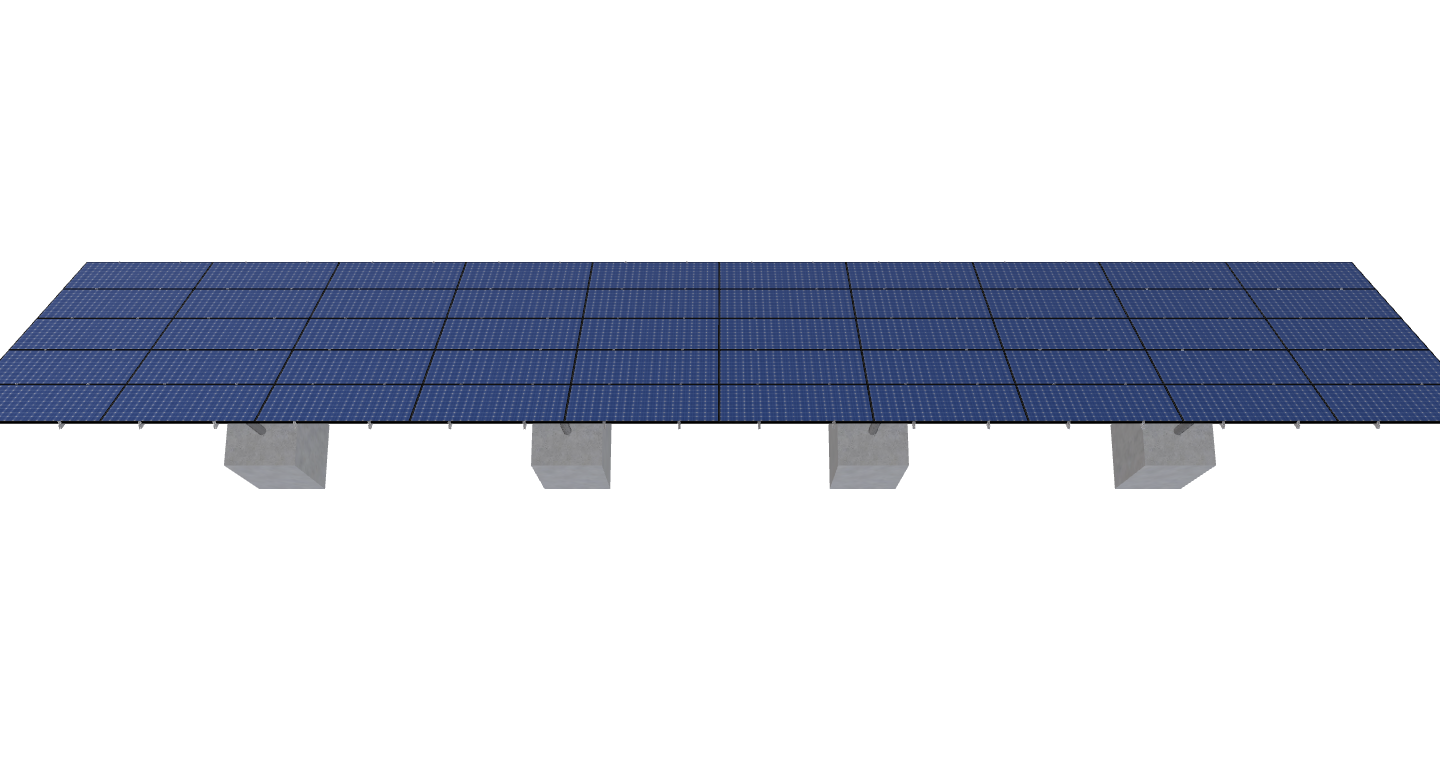

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 45.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Morningstar Carport-RevA-JB
$22,986.78
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 45.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4643.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-XD-45-L-5HX10W-I9EL |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 16.89 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1445.49 |
| ARRAY WIDTH | 75.42 |
| ARRAY HEIGHT | 19.17 |
| RAIL LENGTH | 230.00 |
| MODULE LENGTH | 89.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 23.71 |
| PROJECTED PANEL HEIGHT | 13.64 |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MORNINGSTAR, CARPORT-REVA-JB |
| SITE ADDRESS | 47, PARK, DR, TOPSHAM, ME, 04086, USA |
| MODULE WIDTH | 45.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 22986.78 |
| TOTAL WEIGHT | 4643.40 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/ad77f23b-ba39-46b9-af0a-b5bb5b8926a3.pdf |
|
| ID | 4624.00 |
| 3D Solar link |
