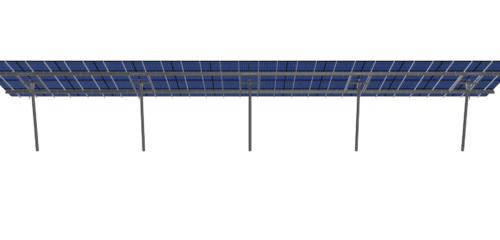

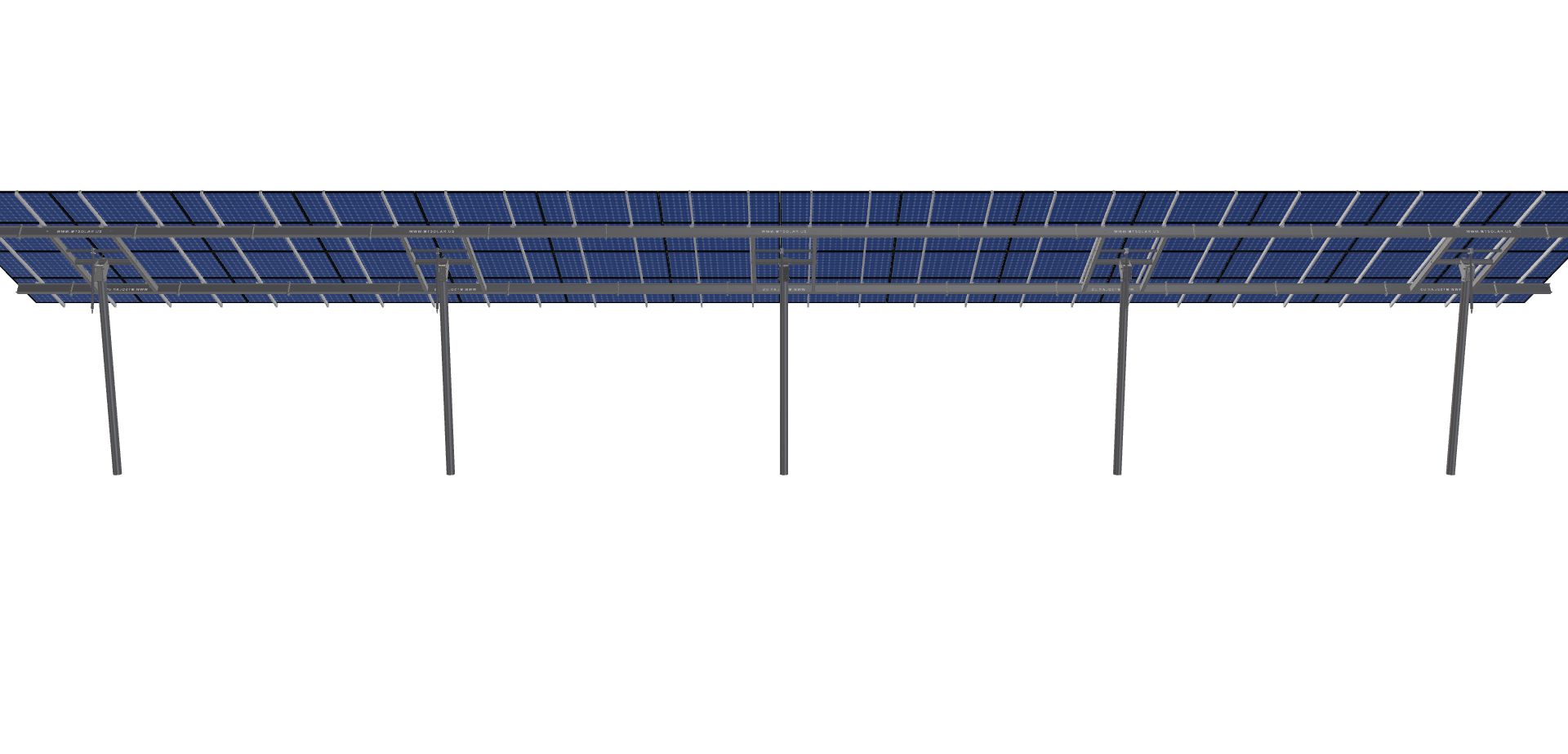

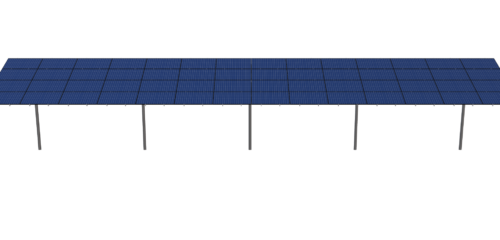

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44.6 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MT Vision
$28,089.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44.6 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5358.2300000000005 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-10TOP-XD-45-L-4HX14W-I2L5 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1596.04 |
| ARRAY WIDTH | 106.17 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 18.57 |
| PROJECTED PANEL HEIGHT | 8.53 |
| PROJECT ID | MT, VISION |
| SITE ADDRESS | 4428+38, INVERNESS, CA, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 28089.14 |
| TOTAL WEIGHT | 5358.23 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/664e6e0d-6d68-4123-bc39-4359c2d7cd78.pdf |
|
| ID | 3613.00 |
| 3D Solar link |
