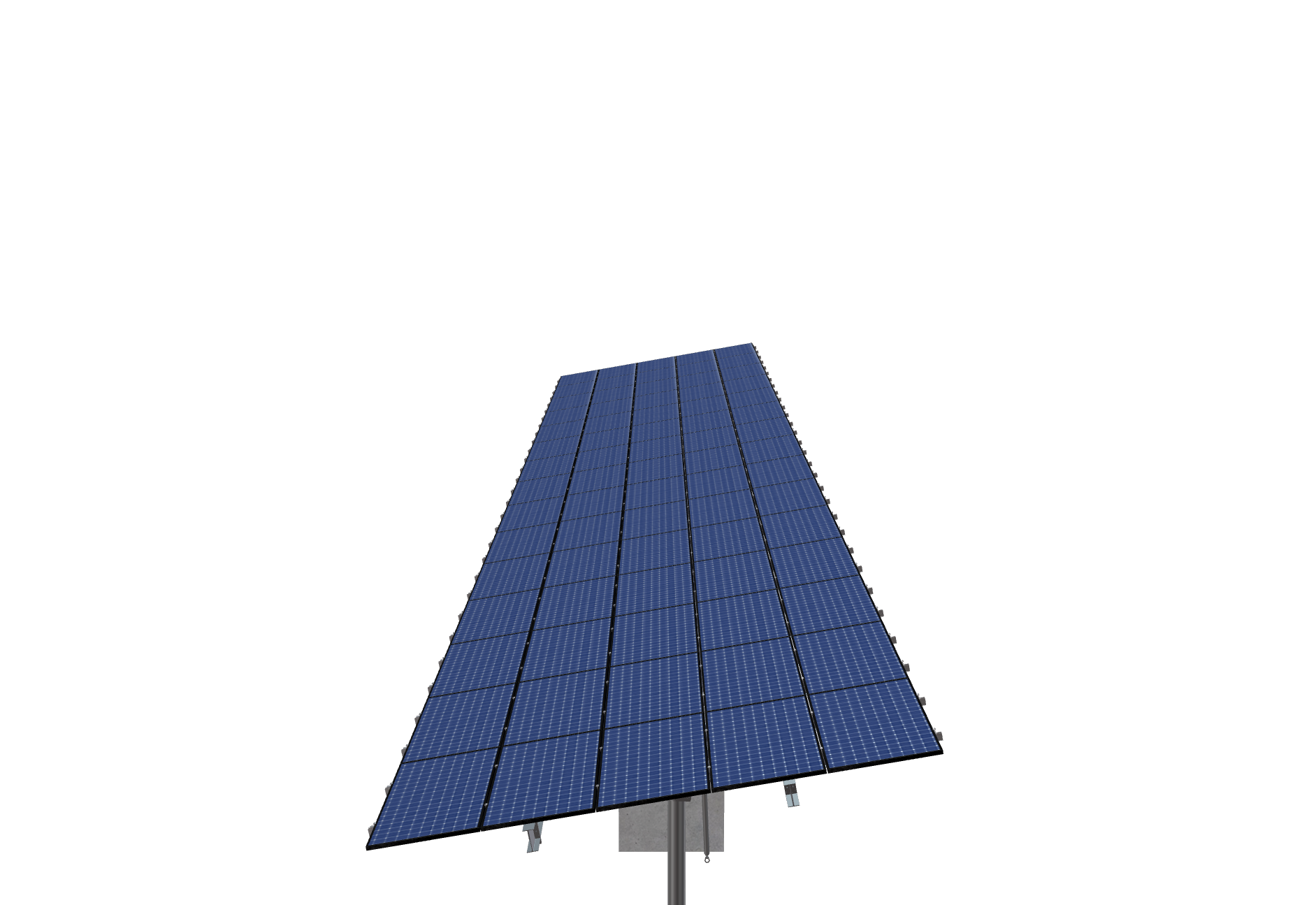

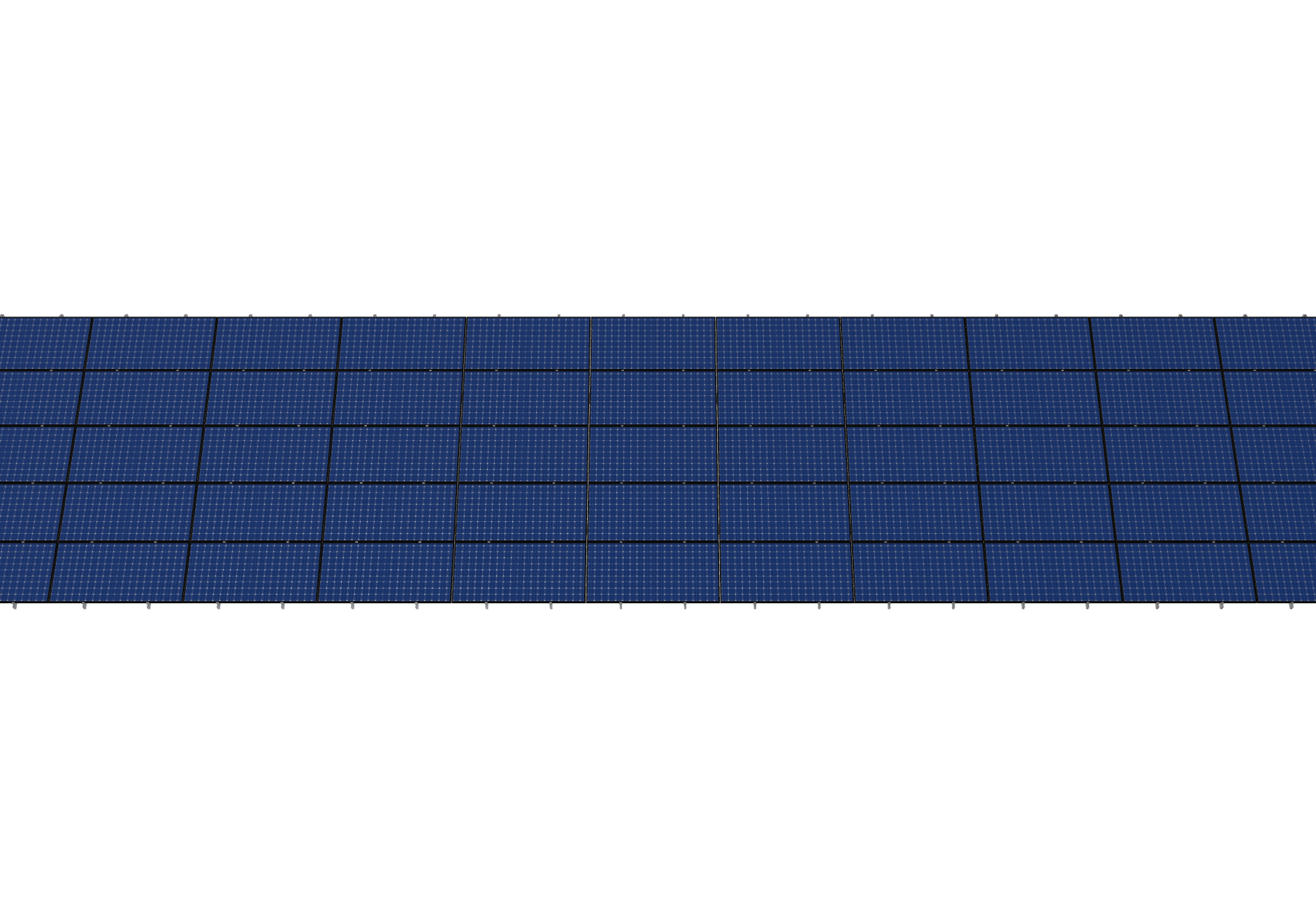

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.8 inches by 39.86 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

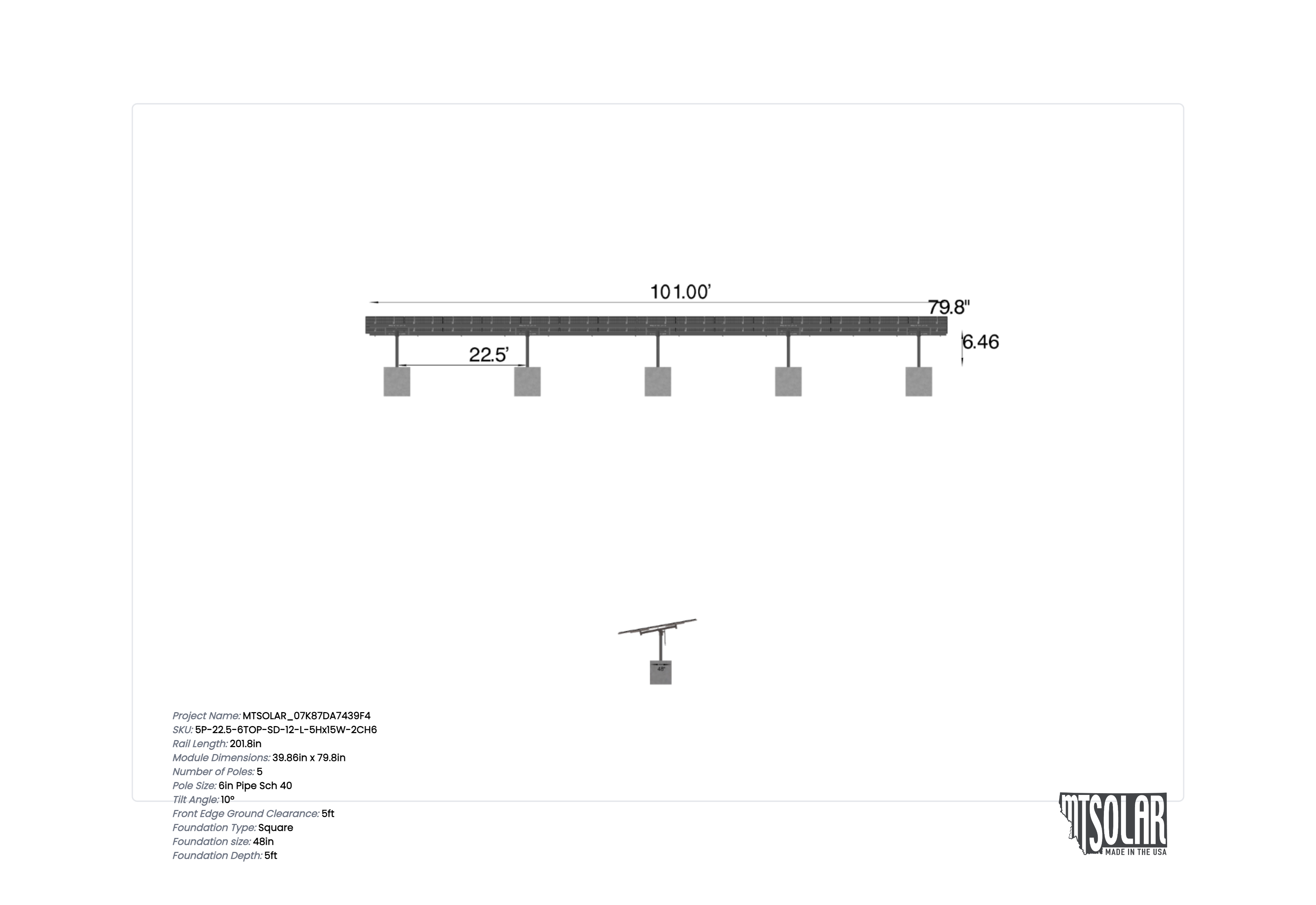

See 3D Model Here
Fillmore Carport
$25,420.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.8 inches by 39.86 inches and an array layout of 15 wide by 5 high.

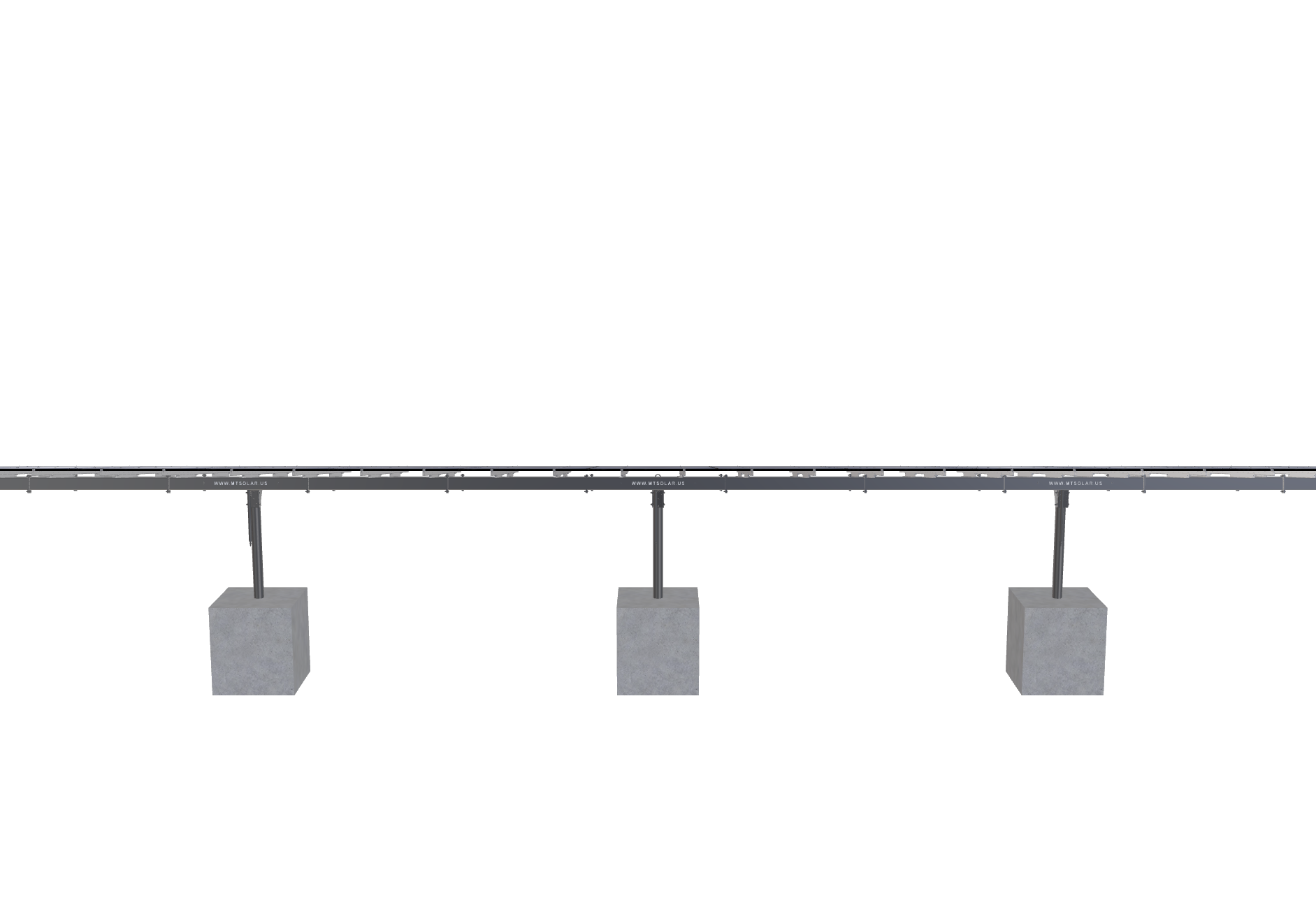

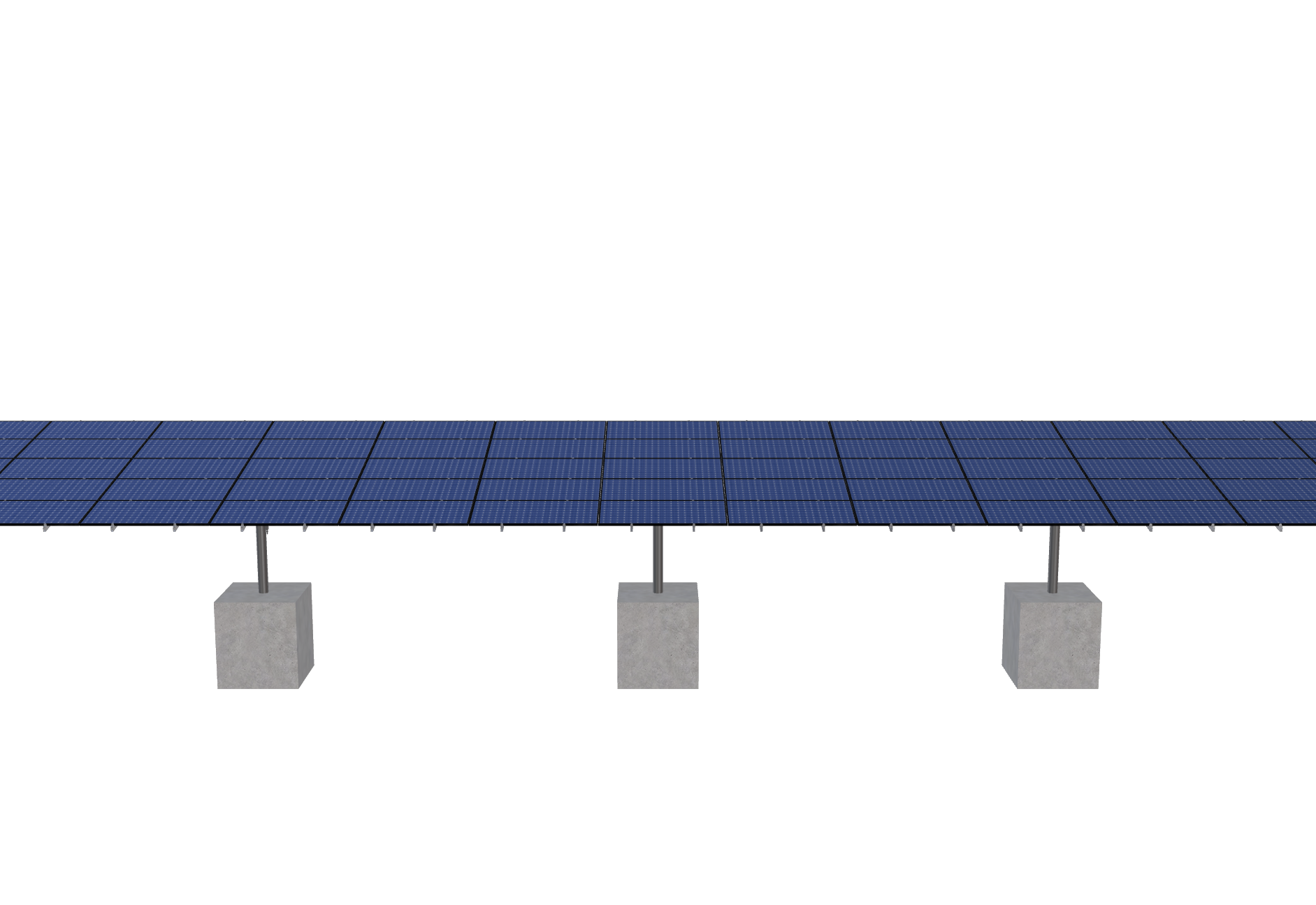

This mount fits on 5 – 6in Pipe Sch 40 steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4818.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-12-L-5HX15W-2CH6 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 6.46 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1194.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1698.48 |
| ARRAY WIDTH | 101.00 |
| ARRAY HEIGHT | 16.82 |
| RAIL LENGTH | 201.80 |
| MODULE LENGTH | 79.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 99.50 |
| GROUND TO TOP | 7.90 |
| PROJECTED PANEL HEIGHT | 2.88 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 07K87DA7439F4 |
| SITE ADDRESS | 1906, OLD, TELEGRAPH, RD, FILLMORE, CA, 93015, USA |
| MODULE WIDTH | 39.86 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24210.37 |
| TOTAL WEIGHT | 4818.60 |
| TOTAL PALLETS | 5.00 |
