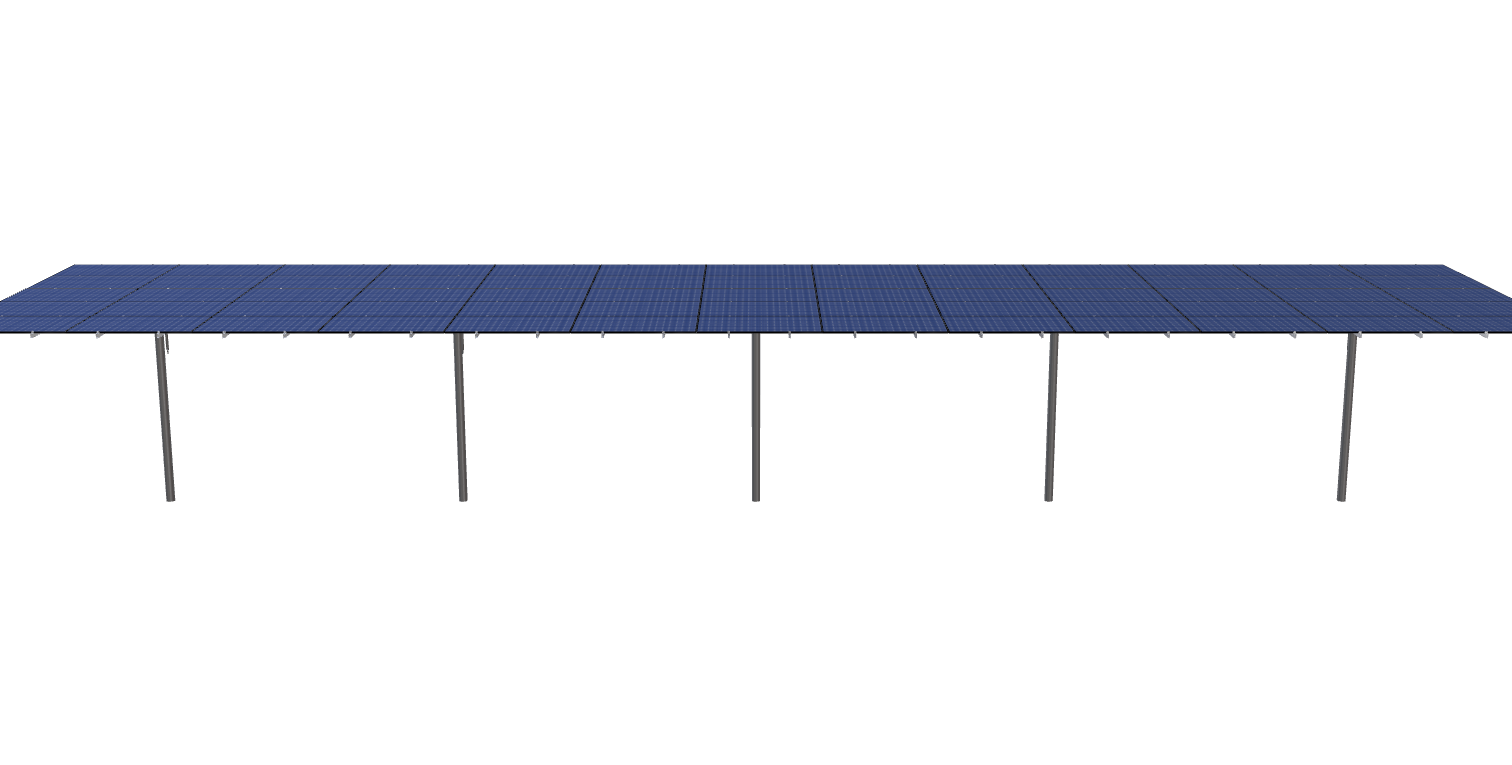

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.65 inches by 44.75 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_0DGE3JAC68E66
$29,770.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.65 inches by 44.75 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5789.870000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-XD-57-L-5HX13W-L64B |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.15 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1851.56 |
| ARRAY WIDTH | 98.20 |
| ARRAY HEIGHT | 18.85 |
| RAIL LENGTH | 226.25 |
| MODULE LENGTH | 89.65 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 14.30 |
| PROJECTED PANEL HEIGHT | 2.30 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 0DGE3JAC68E66 |
| SITE ADDRESS | 123, FAKE, STREET, OAK, LAWN, IL, 60453, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.75 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29770.81 |
| TOTAL WEIGHT | 5789.87 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/107546dd-5d6d-44f8-b046-d611ddb05ae2.pdf |
|
| ID | 11169.00 |
| 3D Solar link |
