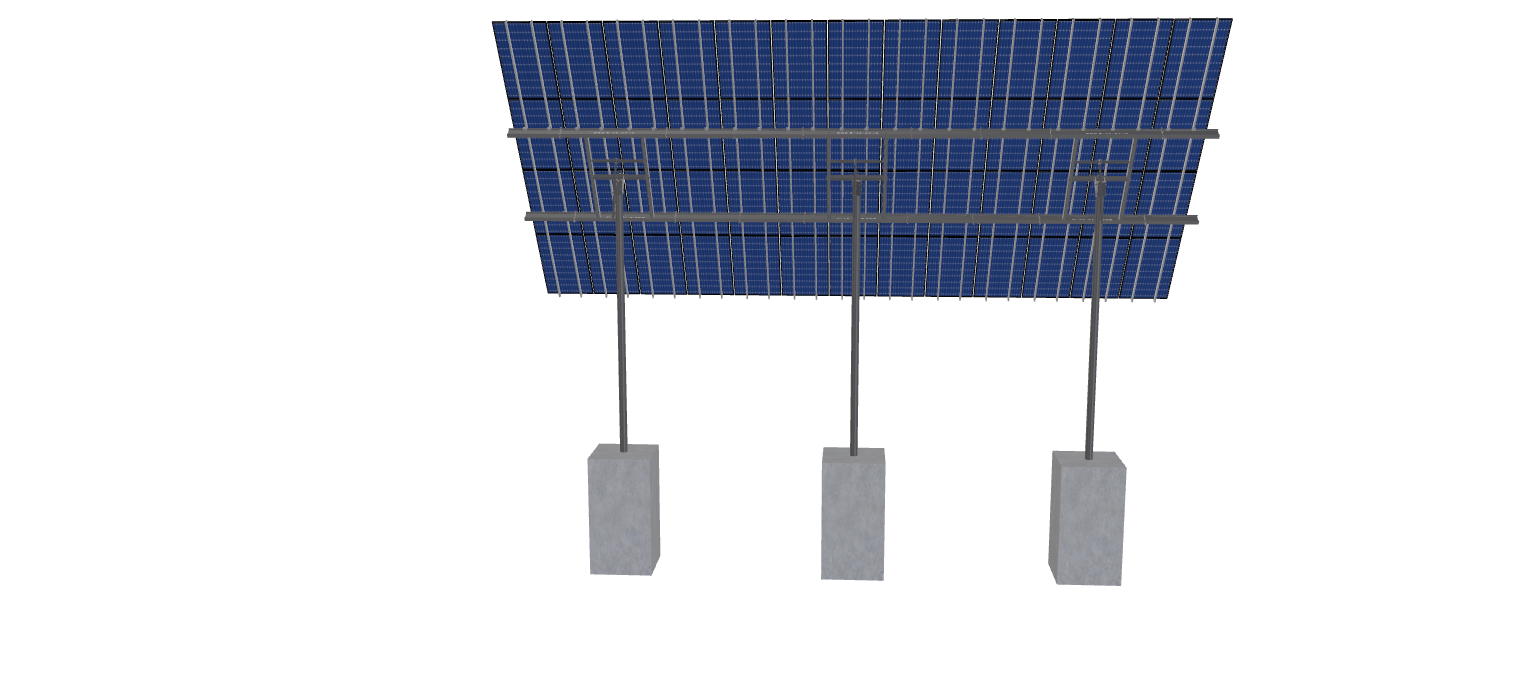

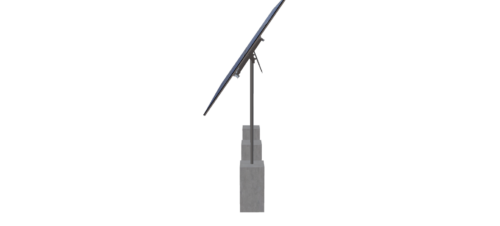

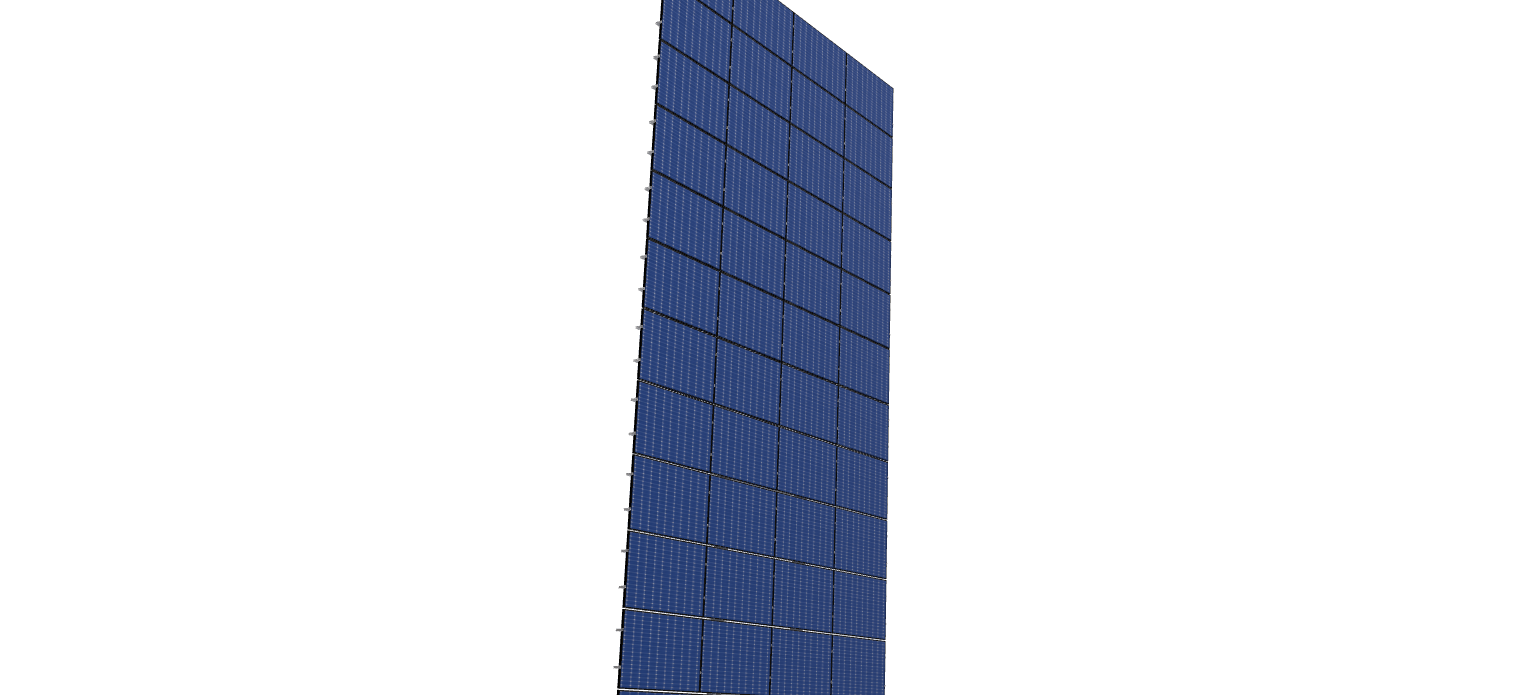

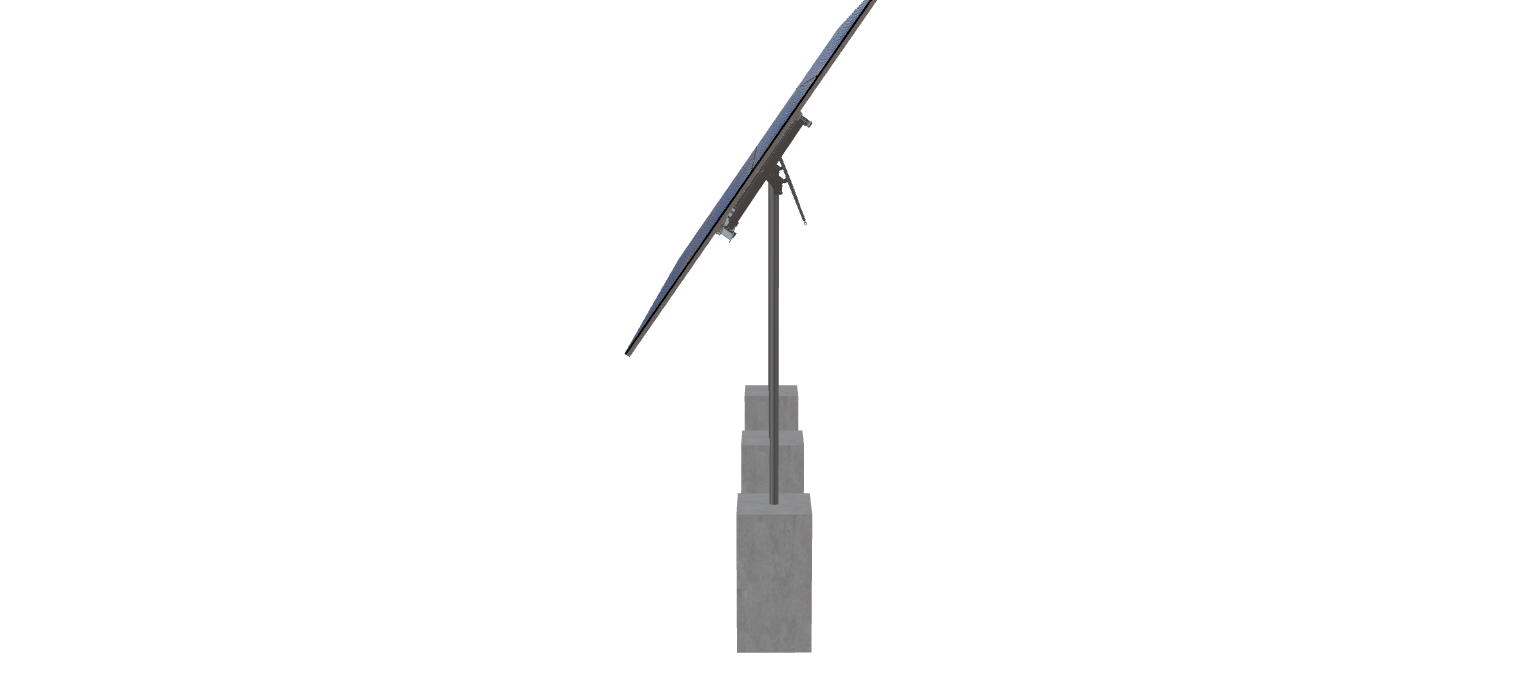

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44 inches by 74 inches and an array layout of 13 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

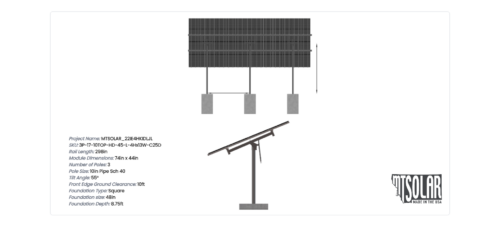

See 3D Model Here
MTSOLAR_22IE4HKIDLJL
$15,347.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44 inches by 74 inches and an array layout of 13 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2714.59 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-HD-45-L-4HX13W-C25D |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 20.17 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1210.63 |
| ARRAY WIDTH | 48.75 |
| ARRAY HEIGHT | 24.83 |
| RAIL LENGTH | 298.00 |
| MODULE LENGTH | 44.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 30.27 |
| PROJECTED PANEL HEIGHT | 20.21 |
| PROJECT ID | MTSOLAR, 22IE4HKIDLJL |
| SITE ADDRESS | SEDRO-WOOLLEY, WA, 98284, USA |
| MODULE WIDTH | 74.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 150.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15347.48 |
| TOTAL WEIGHT | 2714.59 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/896f0b52-8418-4c5e-8db1-0d714bbdecc7.pdf |
|
| ID | 5641.00 |
| 3D Solar link |
