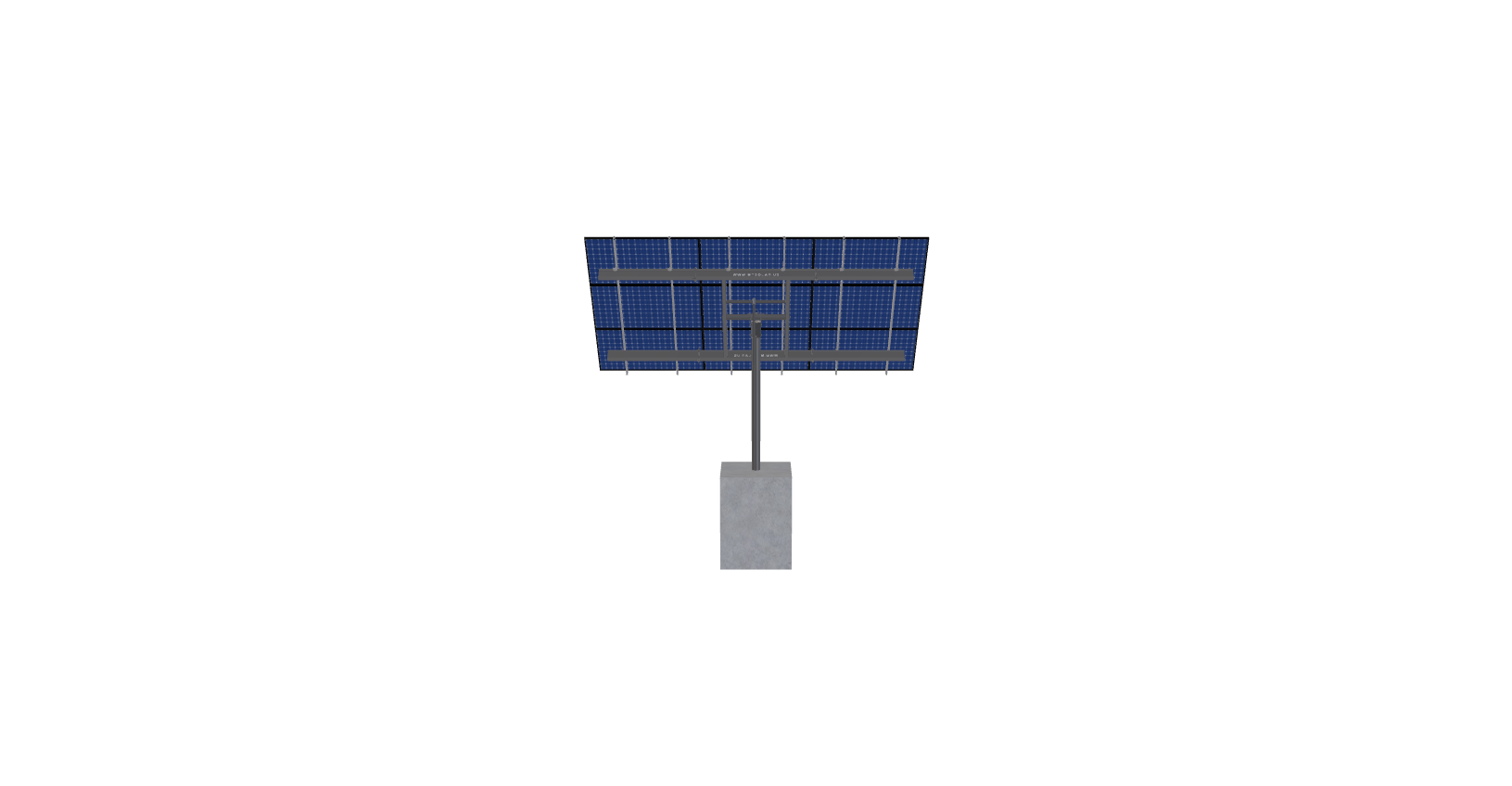

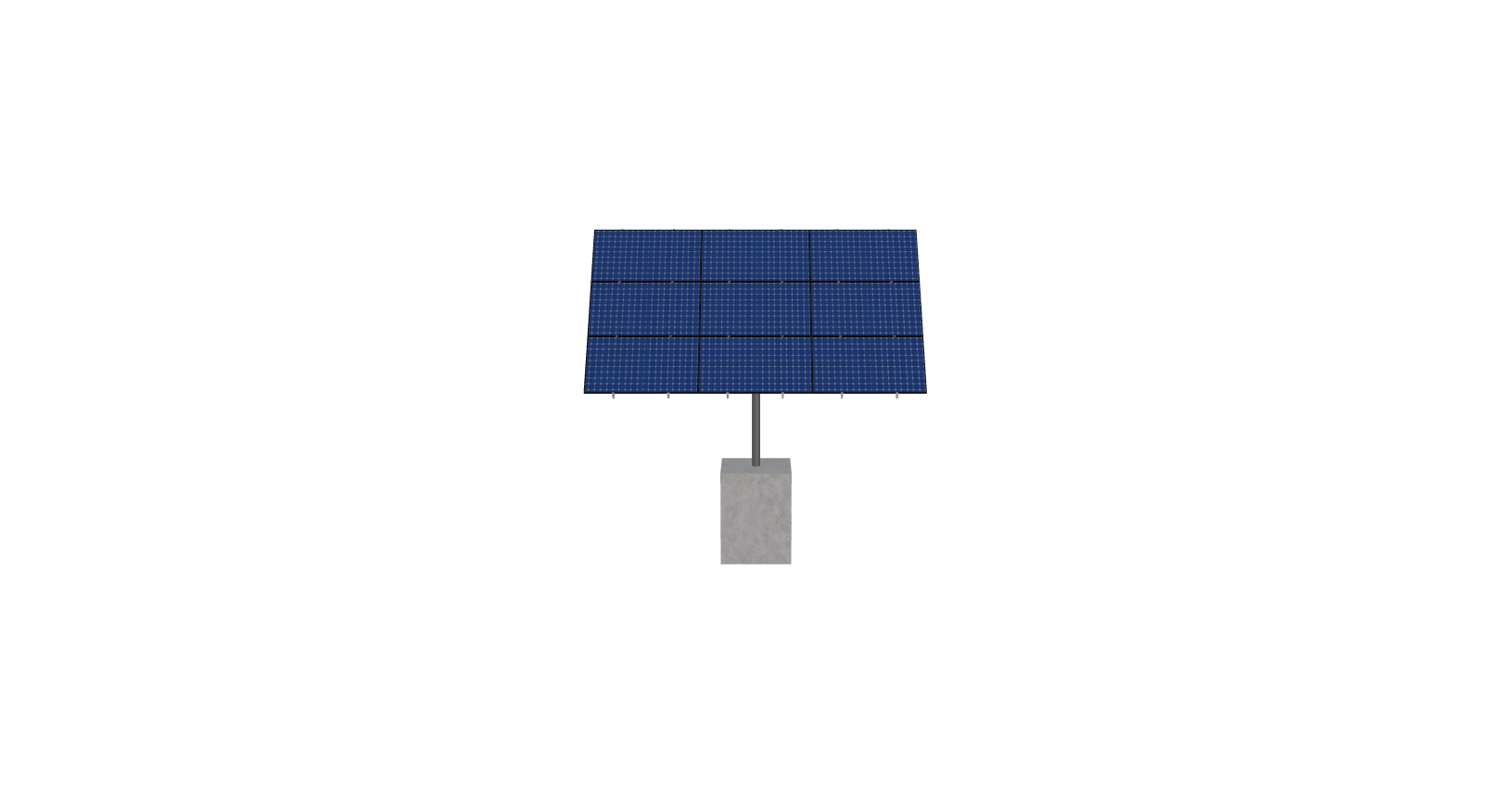

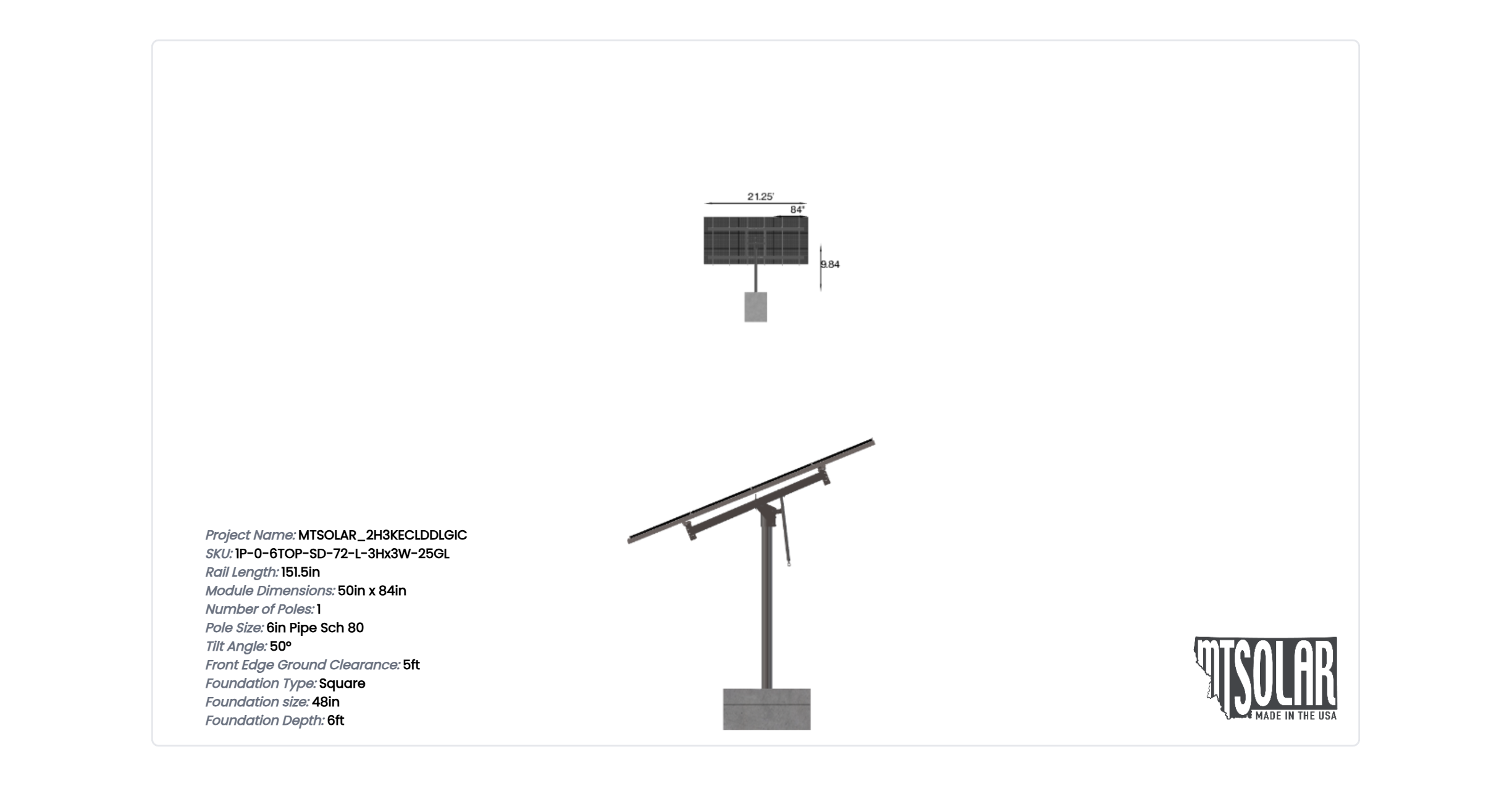

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 50 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_2H3KECLDDLGIC
$3,993.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 50 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 694.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-72-L-3HX3W-25GL |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.84 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 268.28 |
| ARRAY WIDTH | 21.25 |
| ARRAY HEIGHT | 12.63 |
| RAIL LENGTH | 151.50 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 14.67 |
| PROJECTED PANEL HEIGHT | 9.67 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9063606442.00 |
| PROJECT ID | MTSOLAR, 2H3KECLDDLGIC |
| SITE ADDRESS | 10114, CO, RD, 510, NEGAUNEE, MI, 49866, USA |
| MODULE WIDTH | 50.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3803.18 |
| TOTAL WEIGHT | 694.38 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/dc71dc03-3617-44fc-bac7-7d954197346c.pdf |
|
| ID | 9126.00 |
| 3D Solar link |
