This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.6 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

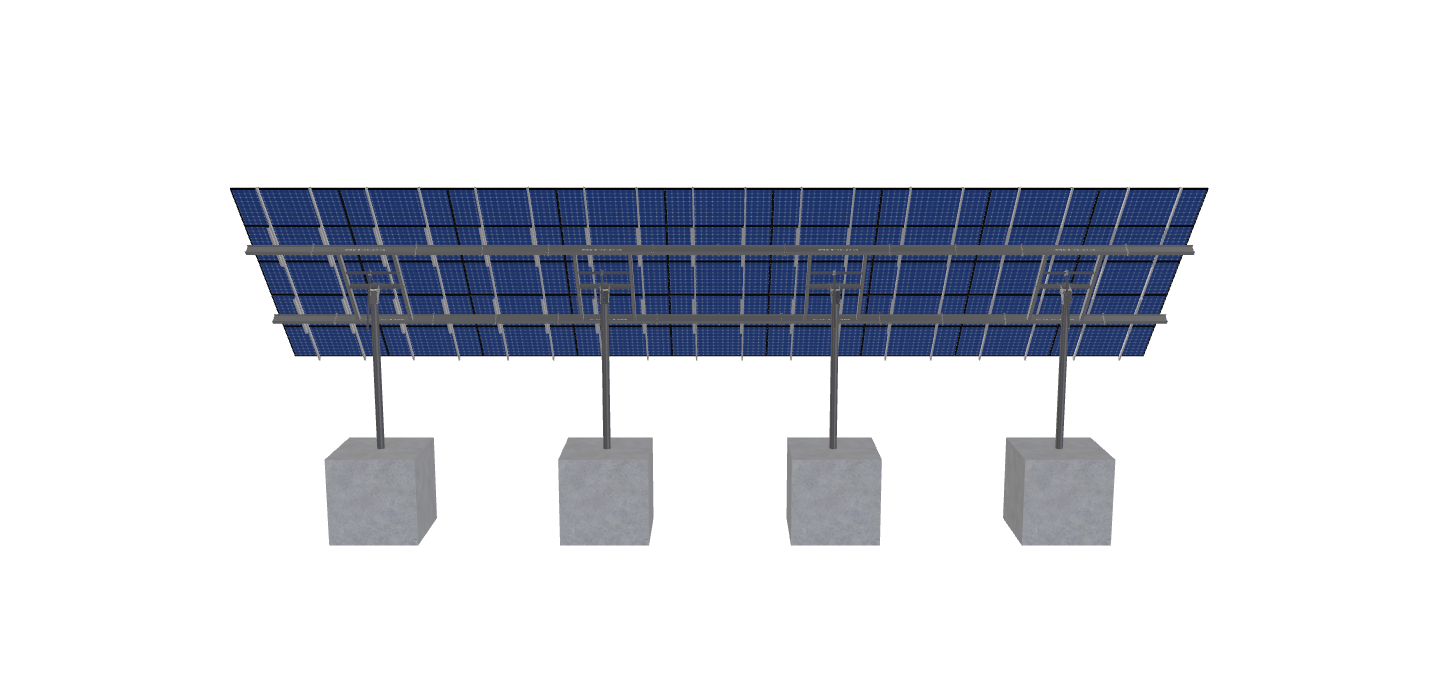

See 3D Model Here

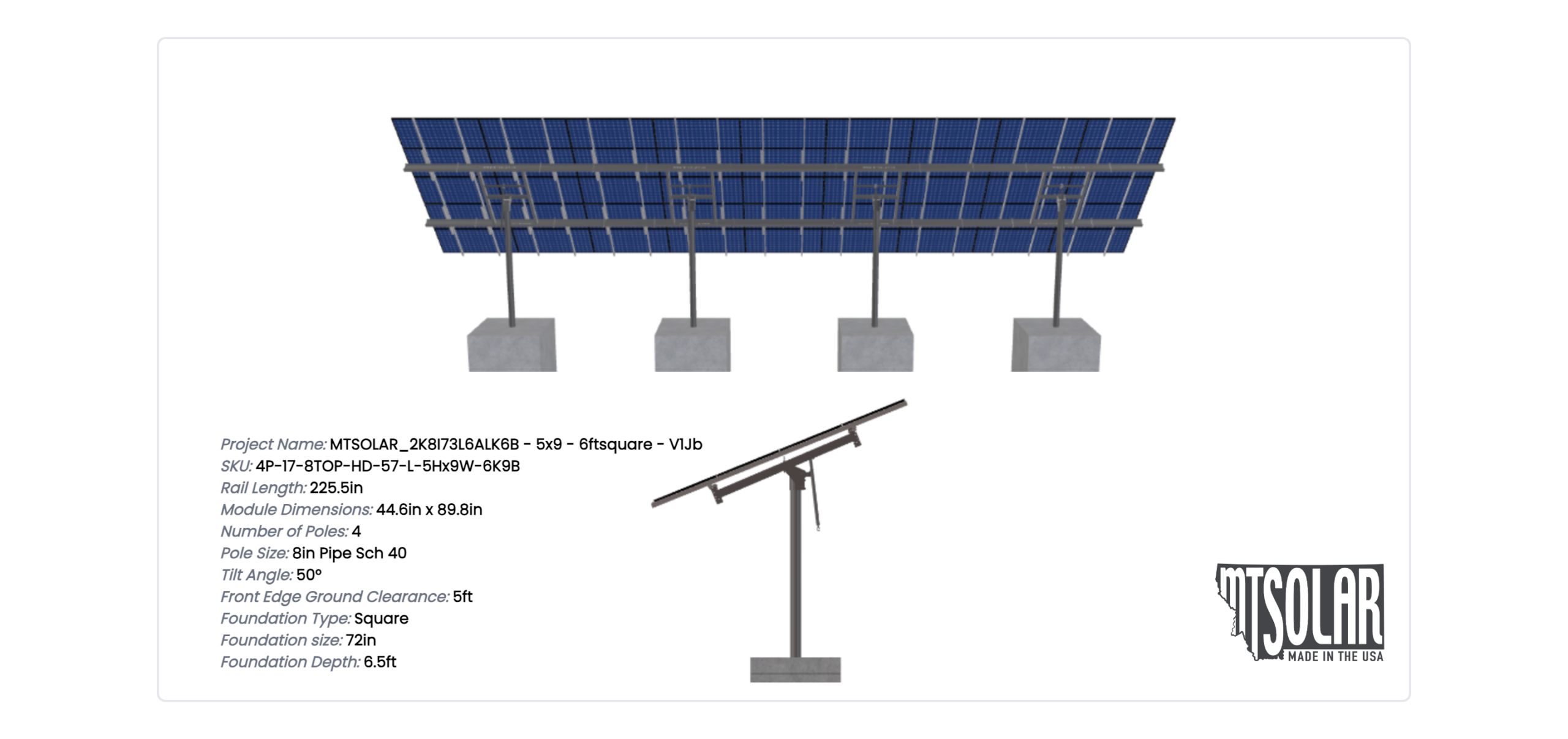

MTSOLAR_2K8I73L6ALK6B – 5×9 – 6ftsquare – V1Jb
$20,442.42
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.6 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3890.2000000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-8TOP-HD-57-L-5HX9W-6K9B |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.20 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 816.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1279.71 |
| ARRAY WIDTH | 68.10 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 89.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.00 |
| GROUND TO TOP | 19.40 |
| PROJECTED PANEL HEIGHT | 14.40 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | MIKE, RENEAU |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6124754444.00 |
| PROJECT ID | MTSOLAR, 2K8I73L6ALK6B, -, 5X9, -, 6FTSQUARE, -, V1JB |
| SITE ADDRESS | 1027, 159TH, AVE, NEW, RICHMOND, WI, 54017, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 72.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19468.97 |
| TOTAL WEIGHT | 3890.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/e5a6698b-f46a-47df-87ee-65158728ed85.pdf |
|
| ID | 10063.00 |
| 3D Solar link |
