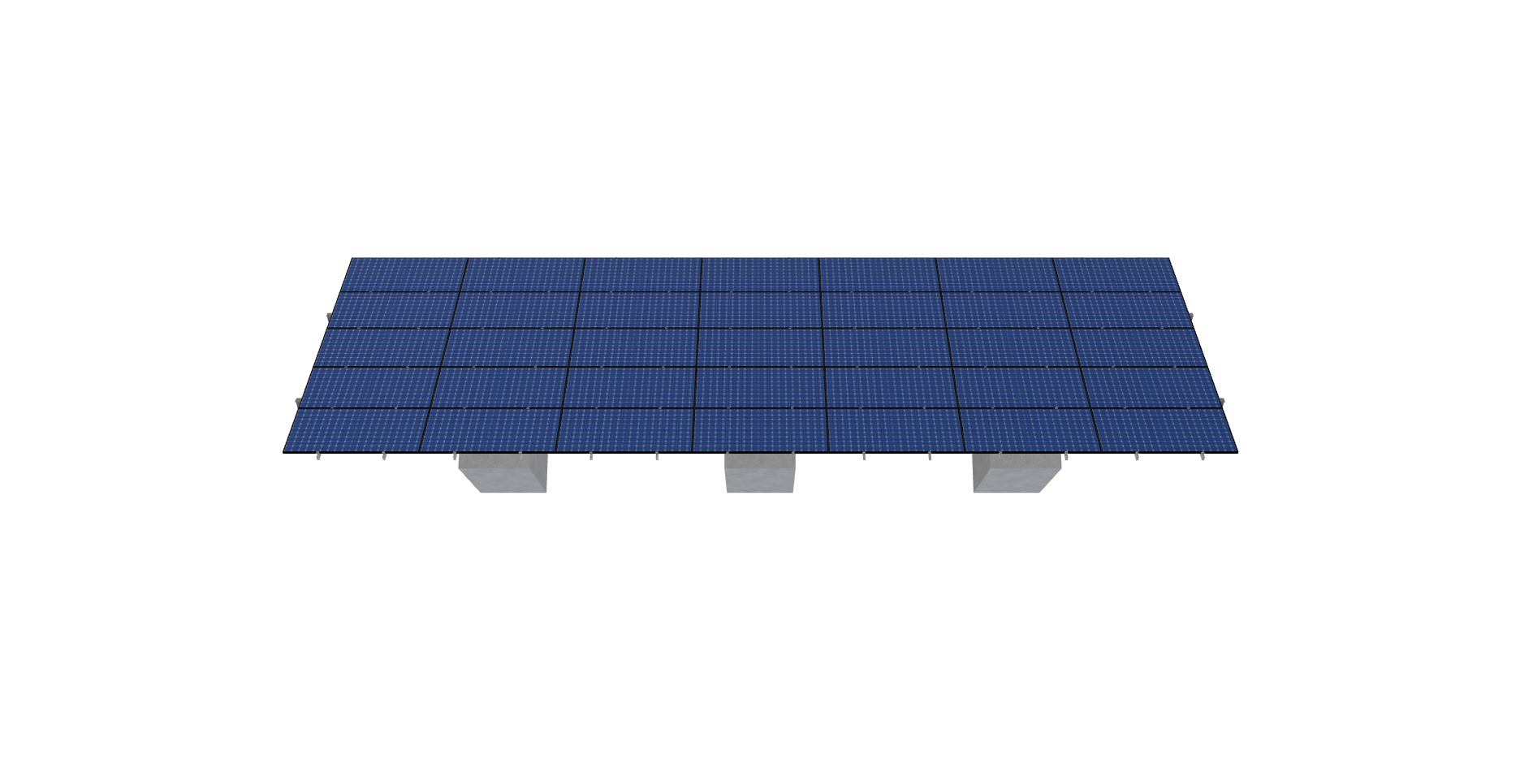

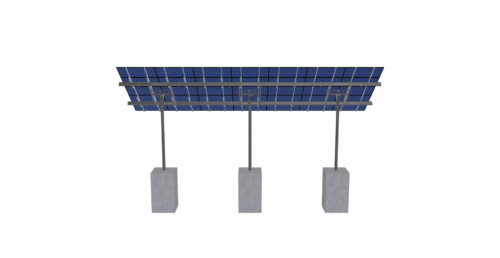

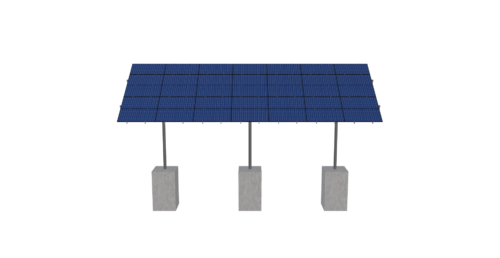

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_2LDH0GF1GHHF4
$15,262.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2895.81 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-45-L-5HX7W-F0G1 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 15.02 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 848.62 |
| ARRAY WIDTH | 48.49 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 82.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 19.98 |
| PROJECTED PANEL HEIGHT | 9.92 |
| PROJECT ID | MTSOLAR, 2LDH0GF1GHHF4 |
| SITE ADDRESS | 857C9CM8+QF |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 15.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14535.77 |
| TOTAL WEIGHT | 2895.81 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/94c10ae8-6751-4dbe-a533-f5b6c876a490.pdf |
|
| ID | 7287.00 |
| 3D Solar link |
