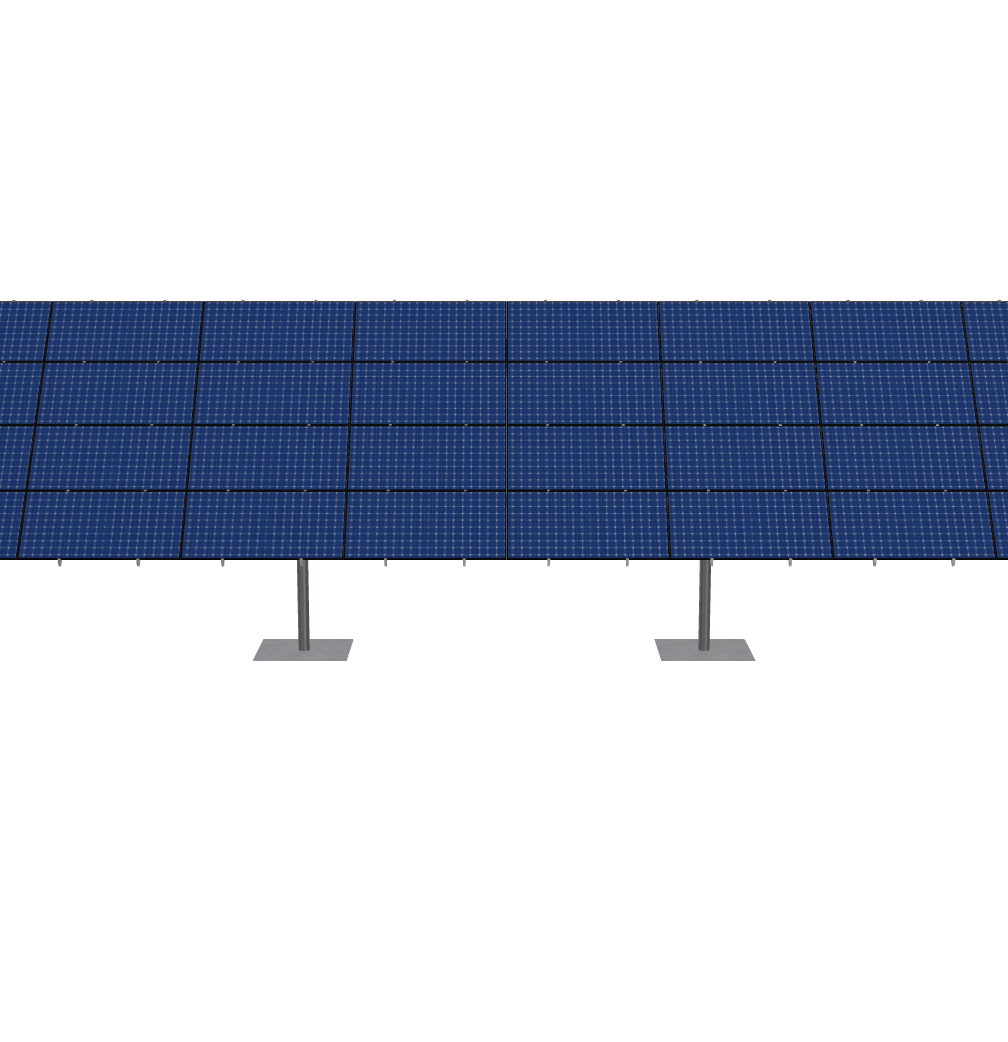

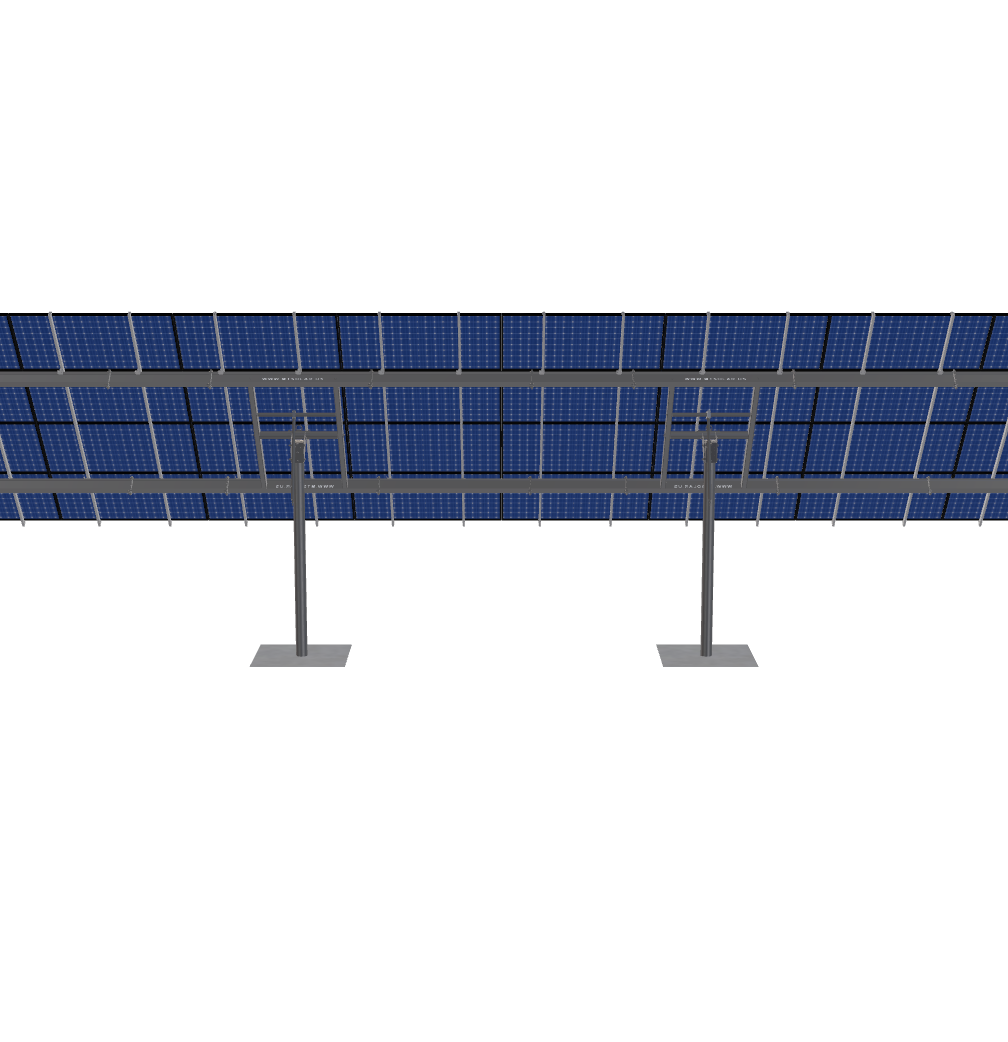

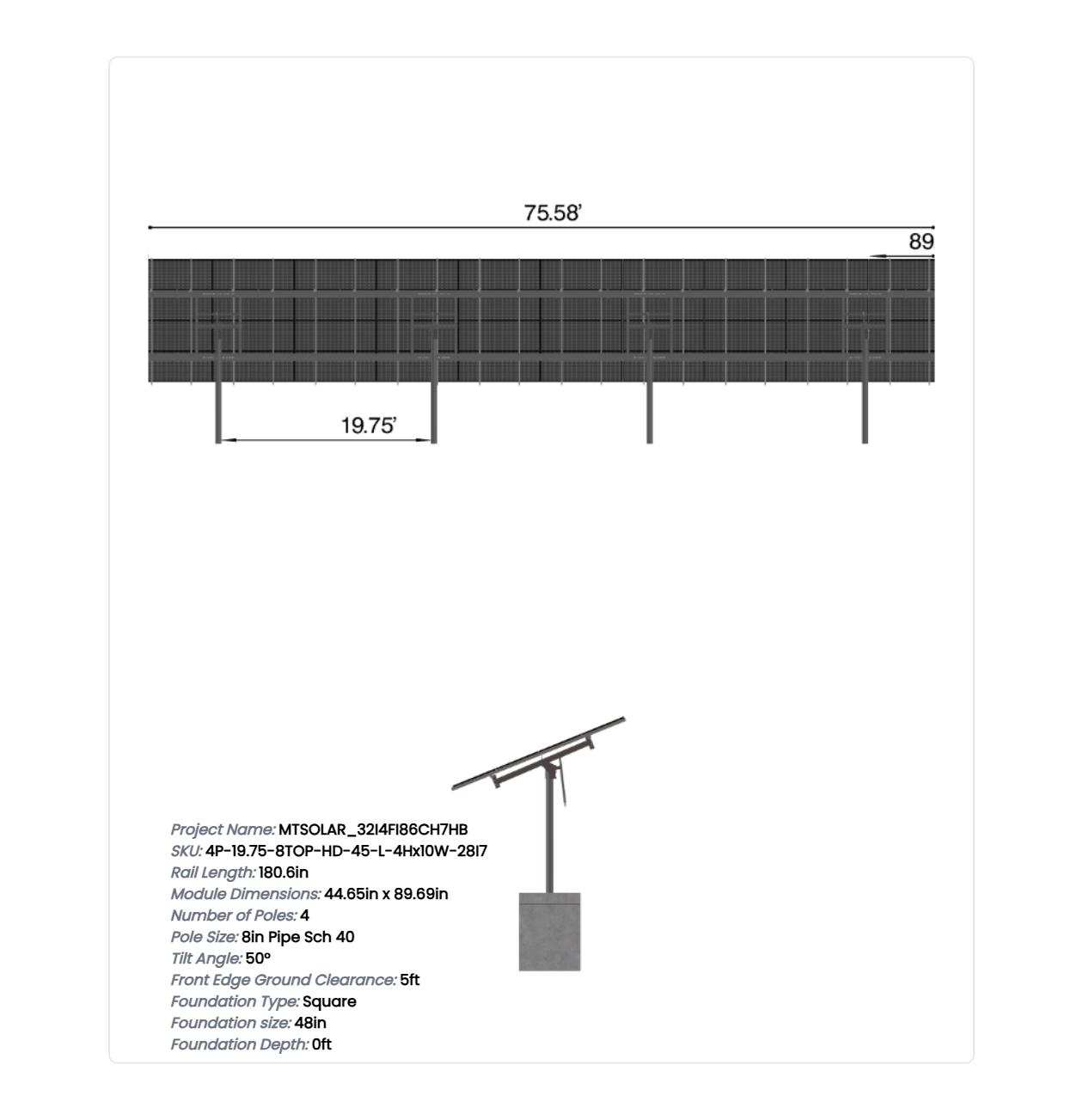

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_32I4FI86CH7HB
$20,045.05
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3535.9800000000005 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-45-L-4HX10W-28I7 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1137.40 |
| ARRAY WIDTH | 75.58 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 16.53 |
| PROJECTED PANEL HEIGHT | 11.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JAKE, CHOUINARD |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 2075761590.00 |
| PROJECT ID | MTSOLAR, 32I4FI86CH7HB |
| SITE ADDRESS | HOULTON, ME, 04730, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20045.05 |
| TOTAL WEIGHT | 3535.98 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/8e40cfaa-cf27-4dbd-8e65-b9a4b5a1e642.pdf |
|
| ID | 13888.00 |
| 3D Solar link |
