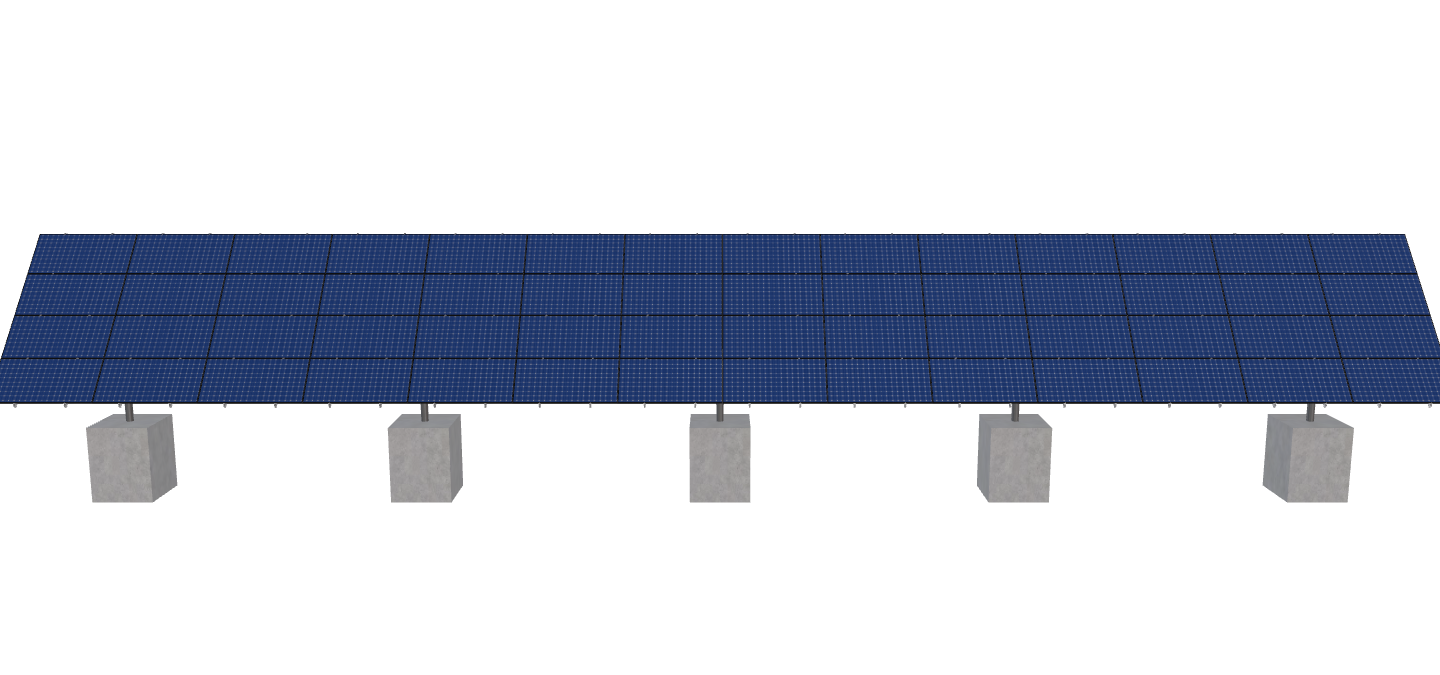

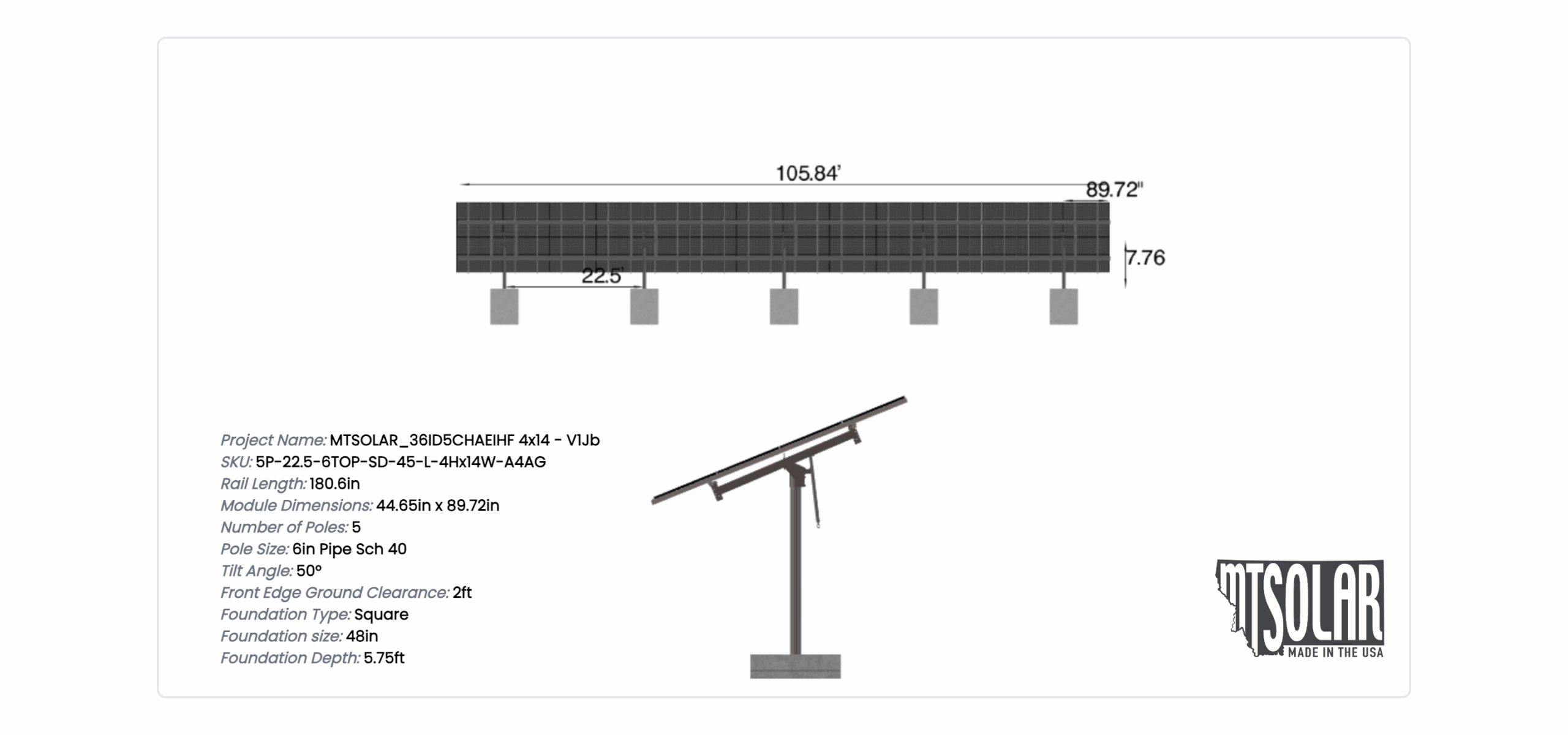

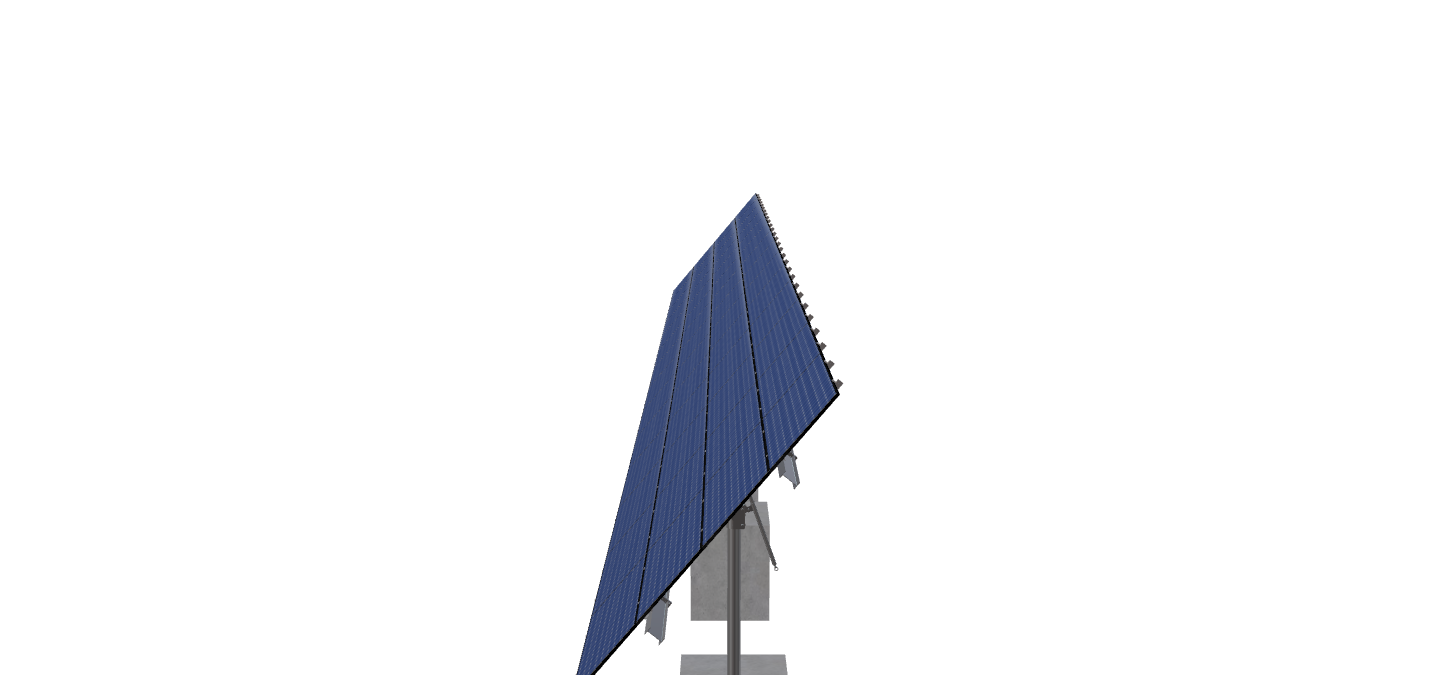

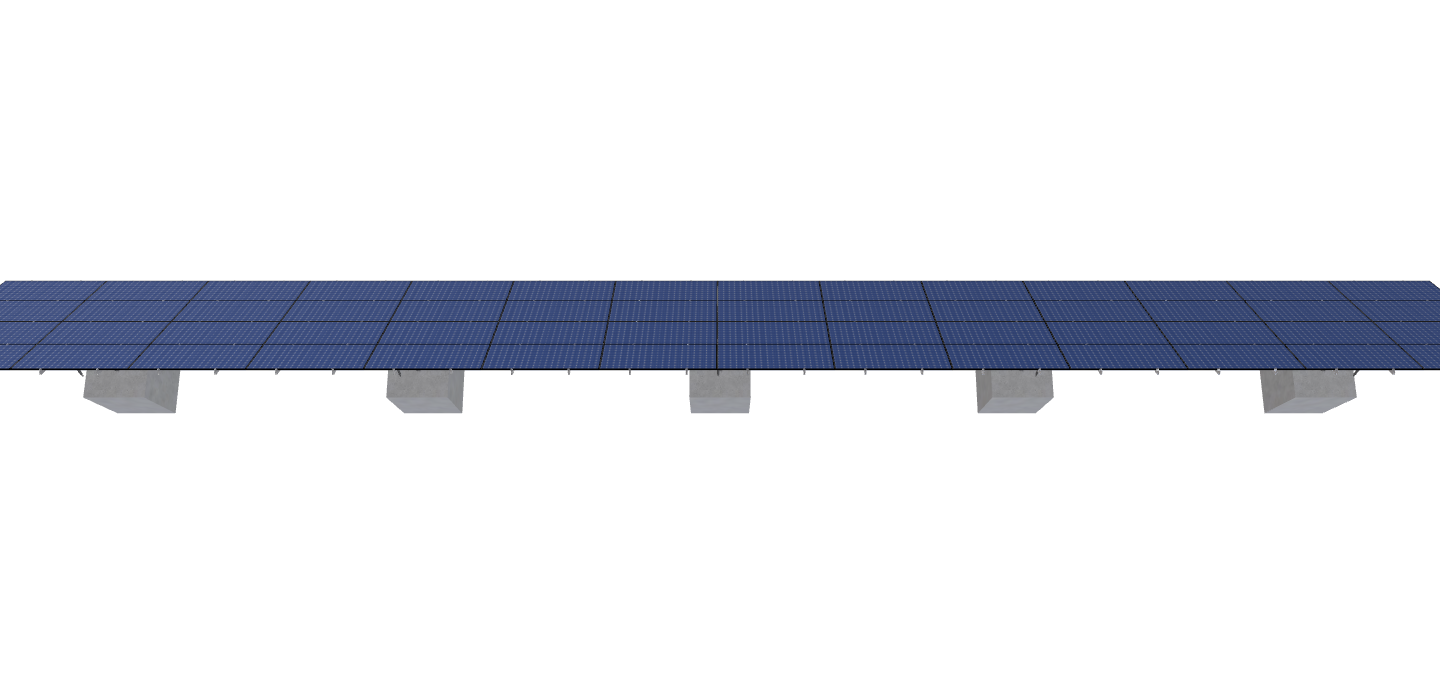

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_36ID5CHAEIHF 4×14 – V1Jb
$22,471.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4003.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-45-L-4HX14W-A4AG |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1592.89 |
| ARRAY WIDTH | 105.84 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 89.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 13.53 |
| PROJECTED PANEL HEIGHT | 11.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | MICHAEL, SERRE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 2184815400.00 |
| PROJECT ID | MTSOLAR, 36ID5CHAEIHF, 4X14, -, V1JB |
| SITE ADDRESS | 6848, LAKE, ELORA, DR, CANYON, MN, 55717, USA |
| MODULE INFO | HELIENE |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 22471.82 |
| TOTAL WEIGHT | 4003.32 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/18242bd9-01d2-4214-9f30-1c3fd95f5e73.pdf |
|
| ID | 12485.00 |
| 3D Solar link |
