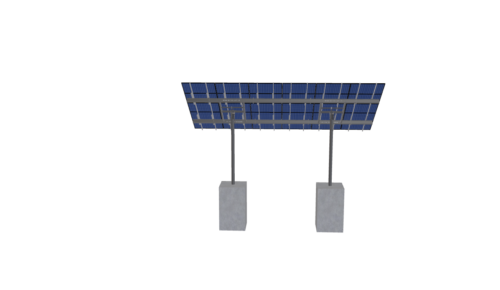

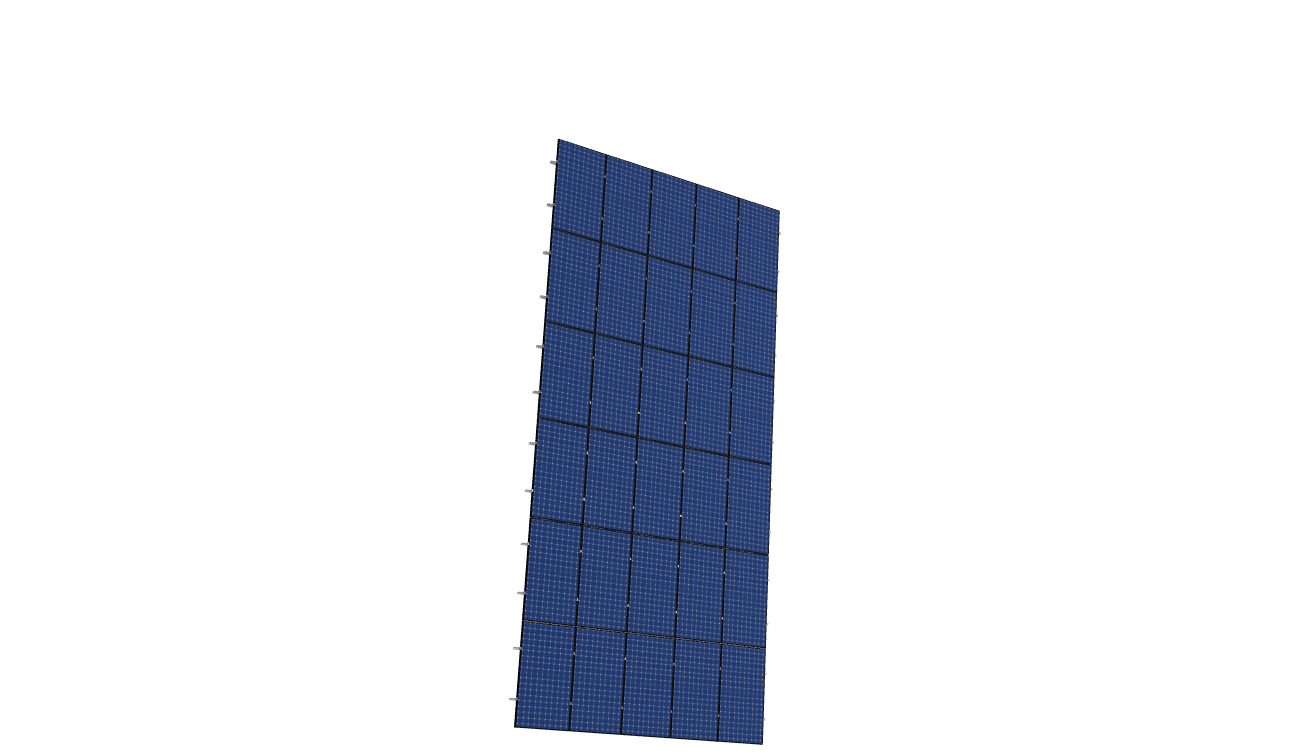

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-8TOP-HD-45-L-5Hx6W-EI7E Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2042.8600000000001 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-8TOP-HD-45-L-5HX6W-EI7E

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

12.84

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

35.00

CANTILEVER

384.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

556.88

ARRAY WIDTH

33.00

ARRAY HEIGHT

16.88

RAIL LENGTH

202.50

MODULE LENGTH

65.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

32.00

GROUND TO TOP

17.62

PROJECTED PANEL HEIGHT

9.56

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 5A08DLIA8A7DA

SITE ADDRESS

3750, CHRISTOPHER, BRIGHTON, MI, 48114, USA

MODULE WIDTH

40.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

D

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

10249.20

TOTAL WEIGHT

2042.86

TOTAL PALLETS

2.00
