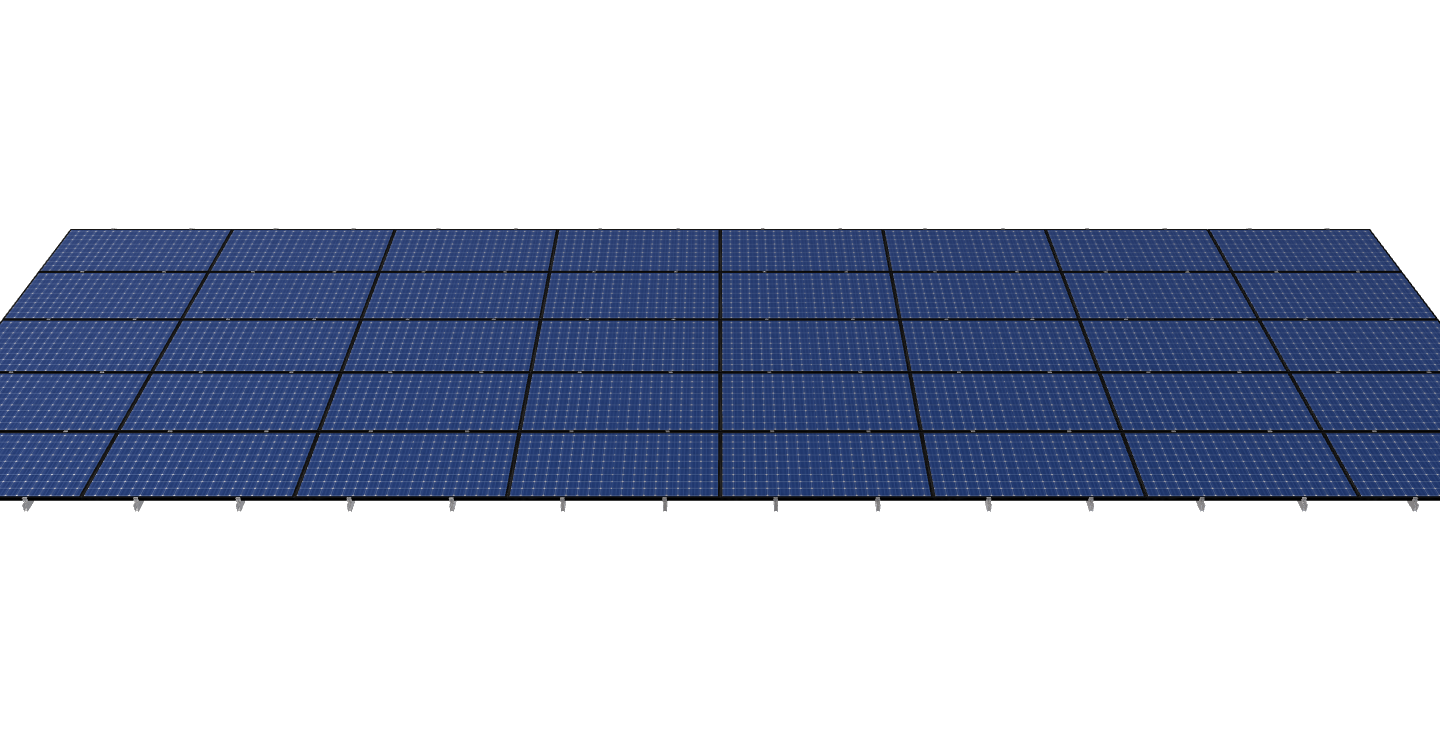

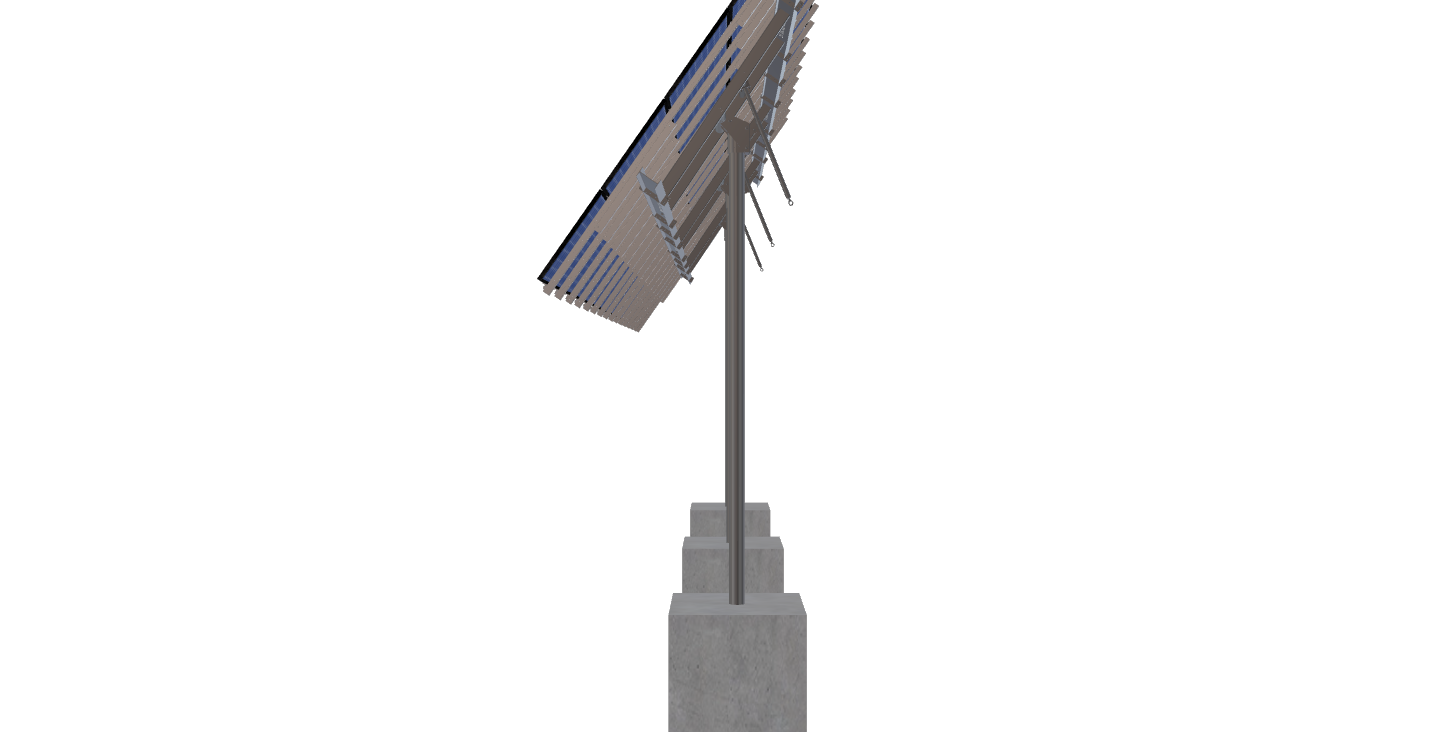

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 39 inches and an array layout of 8 wide by 5 high.

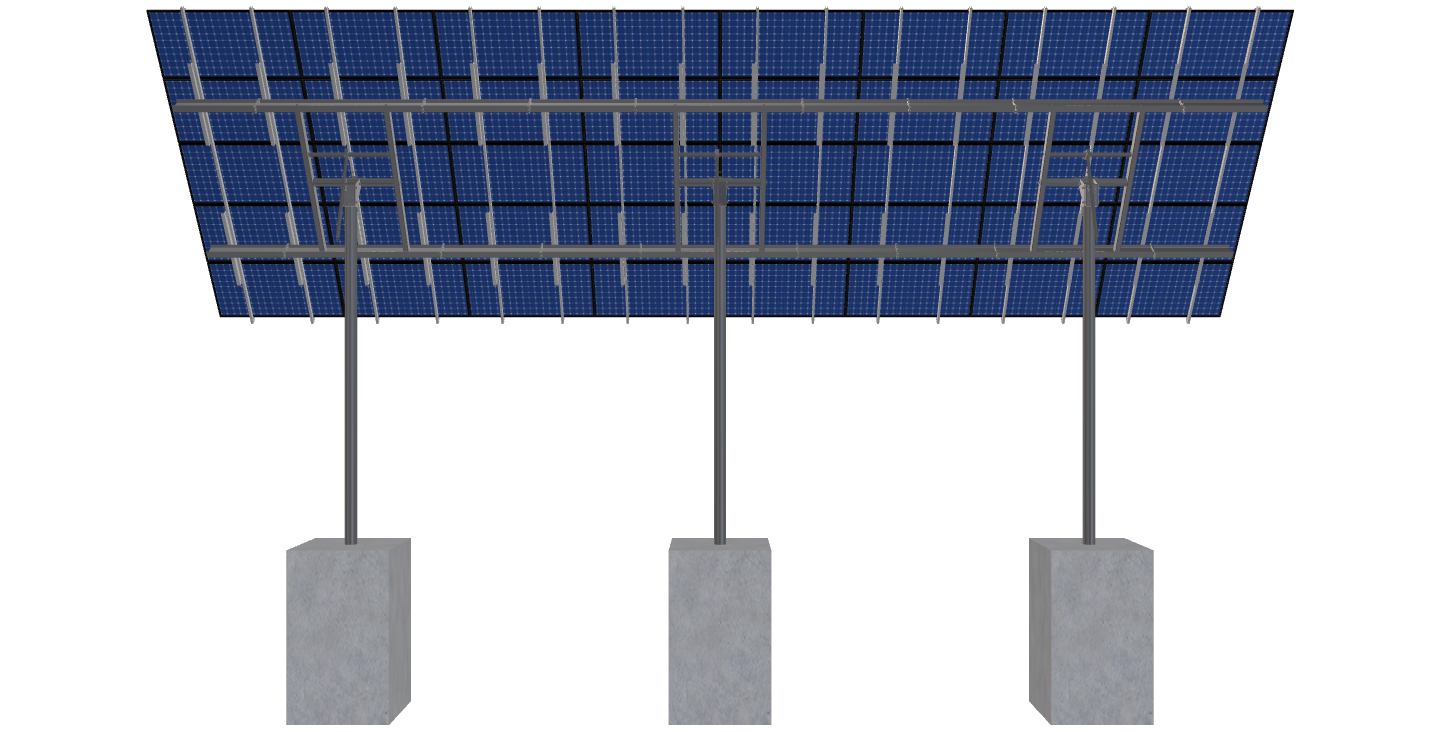

This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_6GEEK5LB82F5-RevA
$17,668.07
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75 inches by 39 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3364.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-XD-45-L-5HX8W-9J0E |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 16.74 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 833.89 |
| ARRAY WIDTH | 50.67 |
| ARRAY HEIGHT | 16.46 |
| RAIL LENGTH | 197.50 |
| MODULE LENGTH | 75.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 23.40 |
| PROJECTED PANEL HEIGHT | 13.31 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 243.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 6GEEK5LB82F5-REVA |
| SITE ADDRESS | 22222, NV-431, RENO, NV, 89511, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16826.73 |
| TOTAL WEIGHT | 3364.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d893b153-a043-4992-9e5a-638f11be0a96.pdf |
|
| ID | 1661.00 |
| CAD URL | |
| 3D Solar link |
