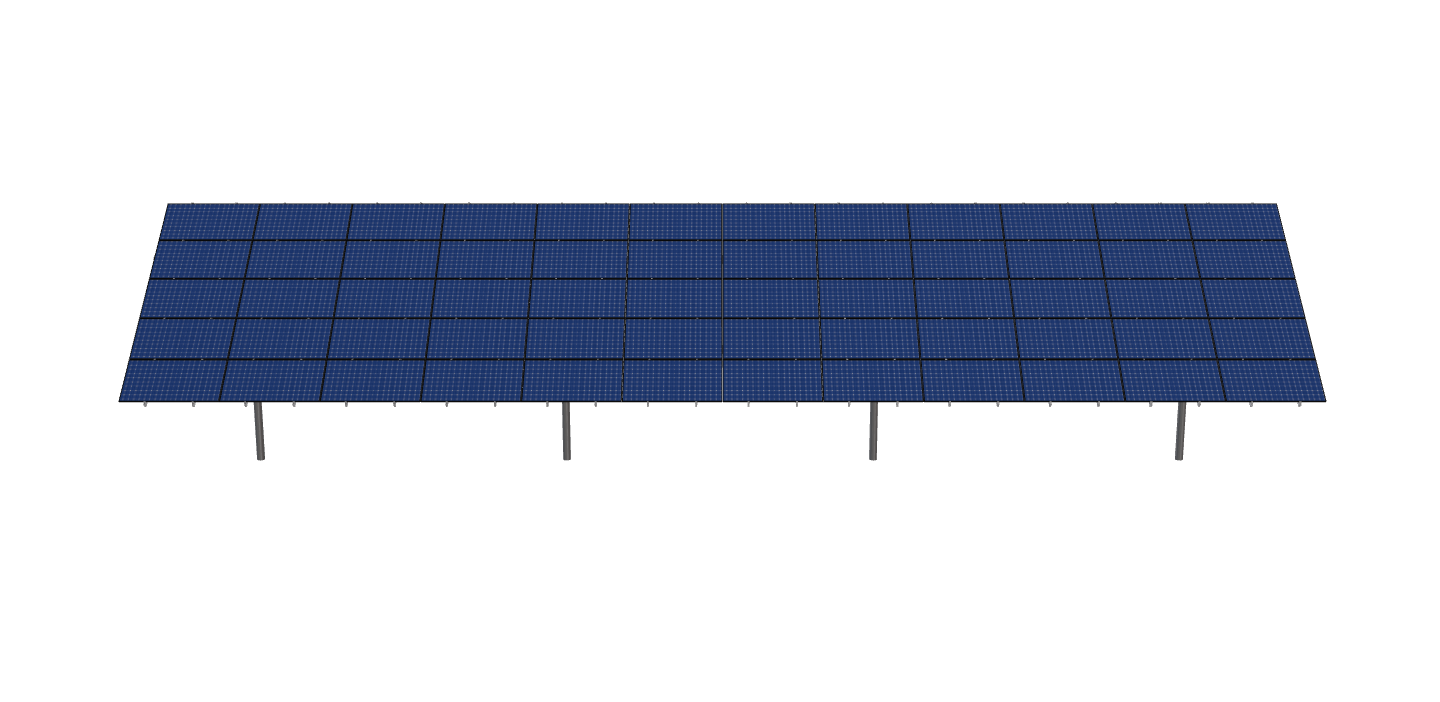

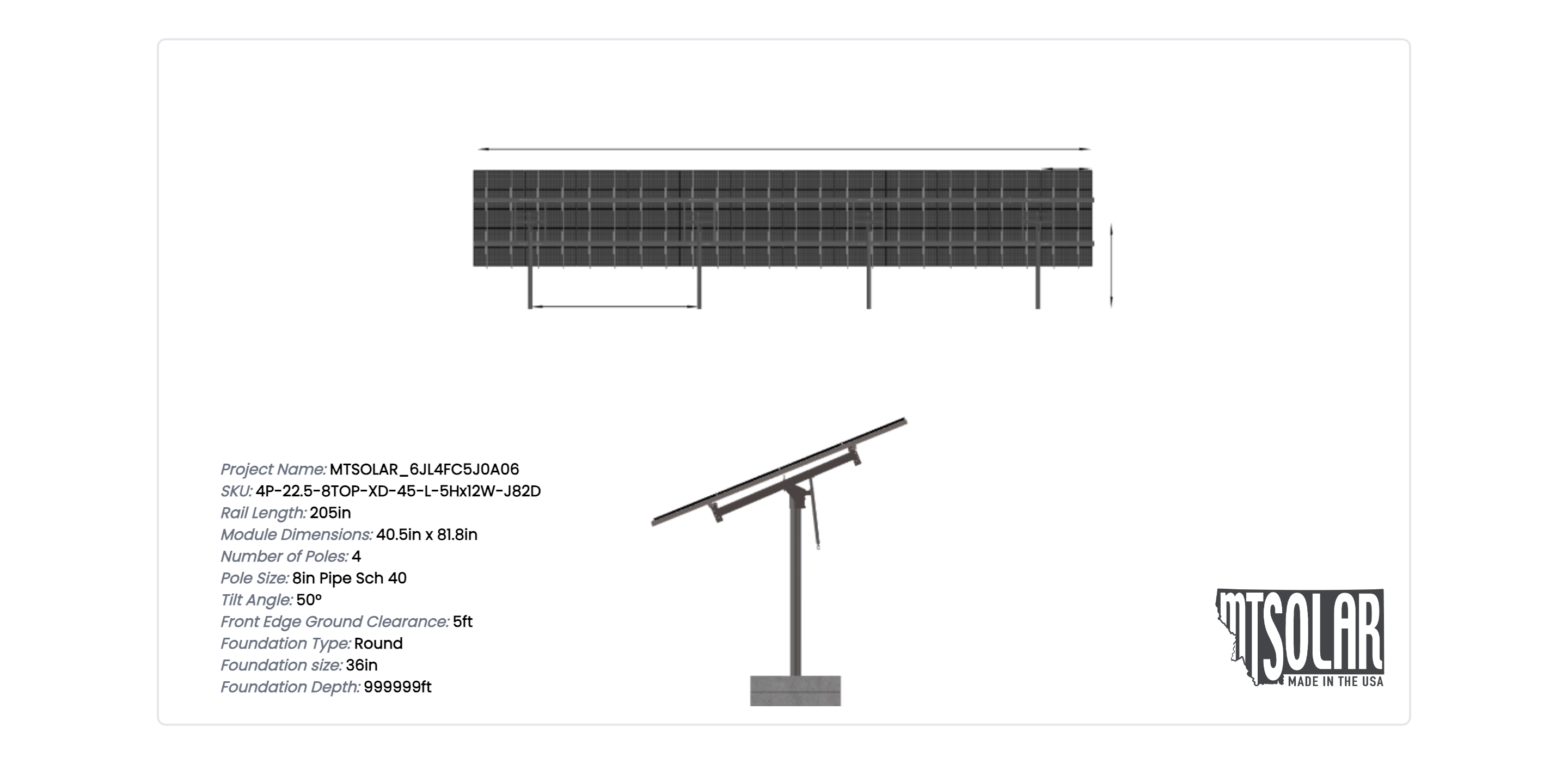

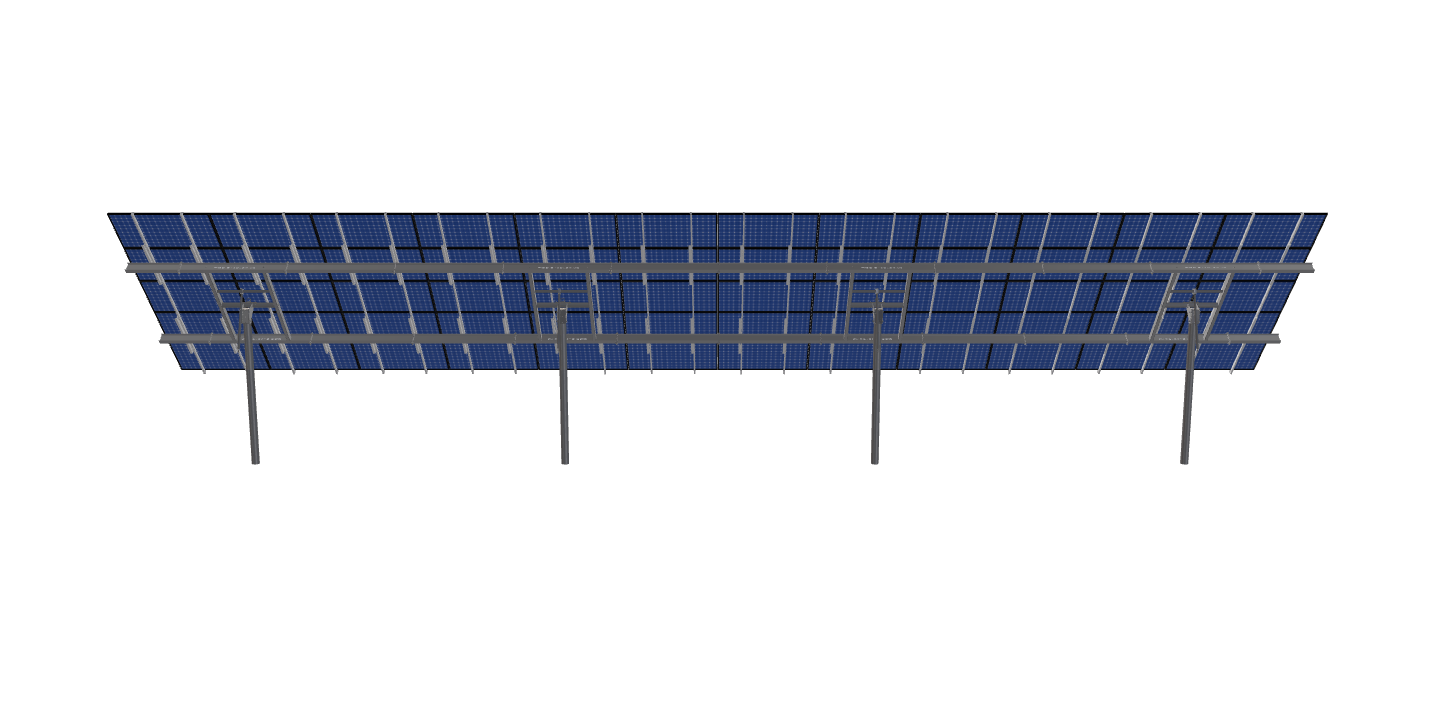

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.8 inches by 40.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_6JL4FC5J0A06
$25,665.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.8 inches by 40.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4984.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-XD-45-L-5HX12W-J82D |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.54 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1414.50 |
| ARRAY WIDTH | 82.80 |
| ARRAY HEIGHT | 17.08 |
| RAIL LENGTH | 205.00 |
| MODULE LENGTH | 81.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 18.01 |
| PROJECTED PANEL HEIGHT | 12.93 |
| PROJECT ID | MTSOLAR, 6JL4FC5J0A06 |
| SITE ADDRESS | DANIEL, WY, USA |
| MODULE WIDTH | 40.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 85.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 24443.12 |
| TOTAL WEIGHT | 4984.28 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/917d45ce-bef9-439a-82e3-f34a16ff3ea8.pdf |
|
| ID | 3040.00 |
| 3D Solar link |
