MTSOLAR_7LA8CDCGF456B

$24,637.07

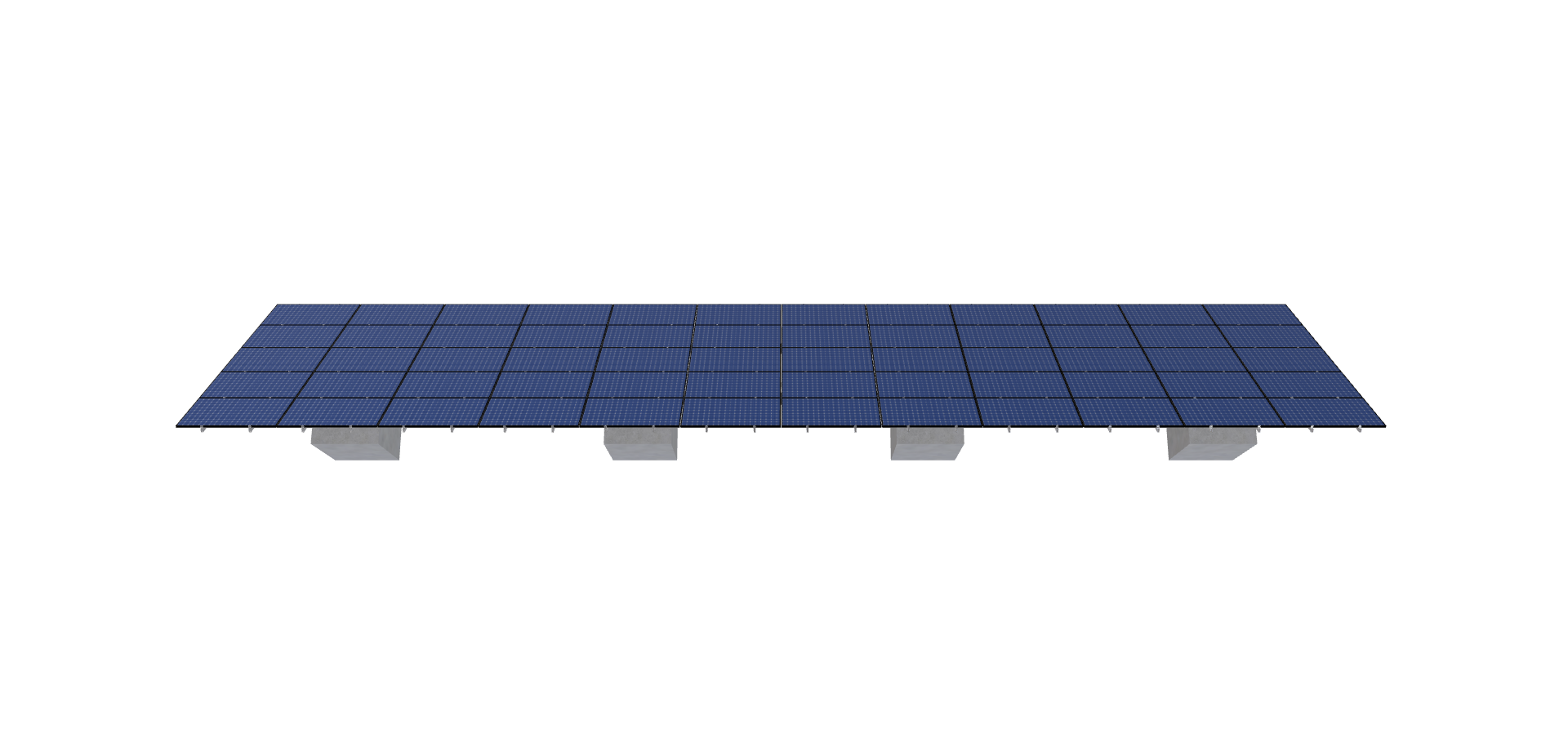

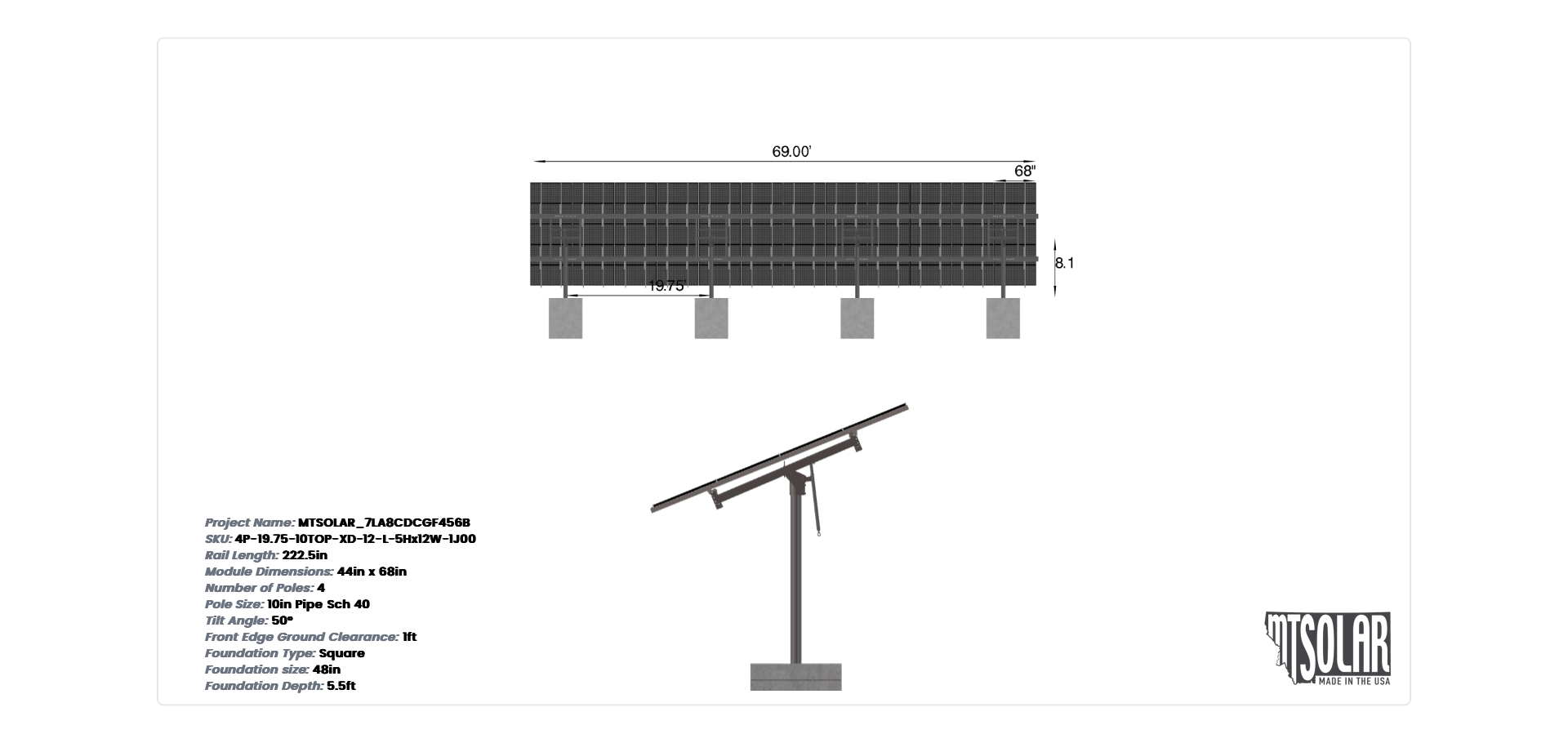

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 4P-19.75-10TOP-XD-12-L-5Hx12W-1J00 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4714.28 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-10TOP-XD-12-L-5HX12W-1J00

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

8.10

WING SPAN

12.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

50.00

CANTILEVER

825.00

GROUND CLEARANCE

1.00

NO POLES

4.00

MODULE AREA

1279.38

ARRAY WIDTH

69.00

ARRAY HEIGHT

18.54

RAIL LENGTH

222.50

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

68.75

GROUND TO TOP

15.20

PROJECTED PANEL HEIGHT

14.20

DESIGNER NAME

BRANDON

DESIGNER EMAIL

BRANDON@ELEVATEDSOLARENERGY.COM

DESIGNER PHONE

2623398293.00

PROJECT ID

MTSOLAR, 7LA8CDCGF456B

SITE ADDRESS

JACKSON, WI, 53037, USA

MODULE WIDTH

44.00

NUMBER ROWS

5.00

NUMBER COLUMNS

12.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

23463.88

TOTAL WEIGHT

4714.28

TOTAL PALLETS

4.00
