MTSOLAR_9J2C00BEF48G

$22,892.76

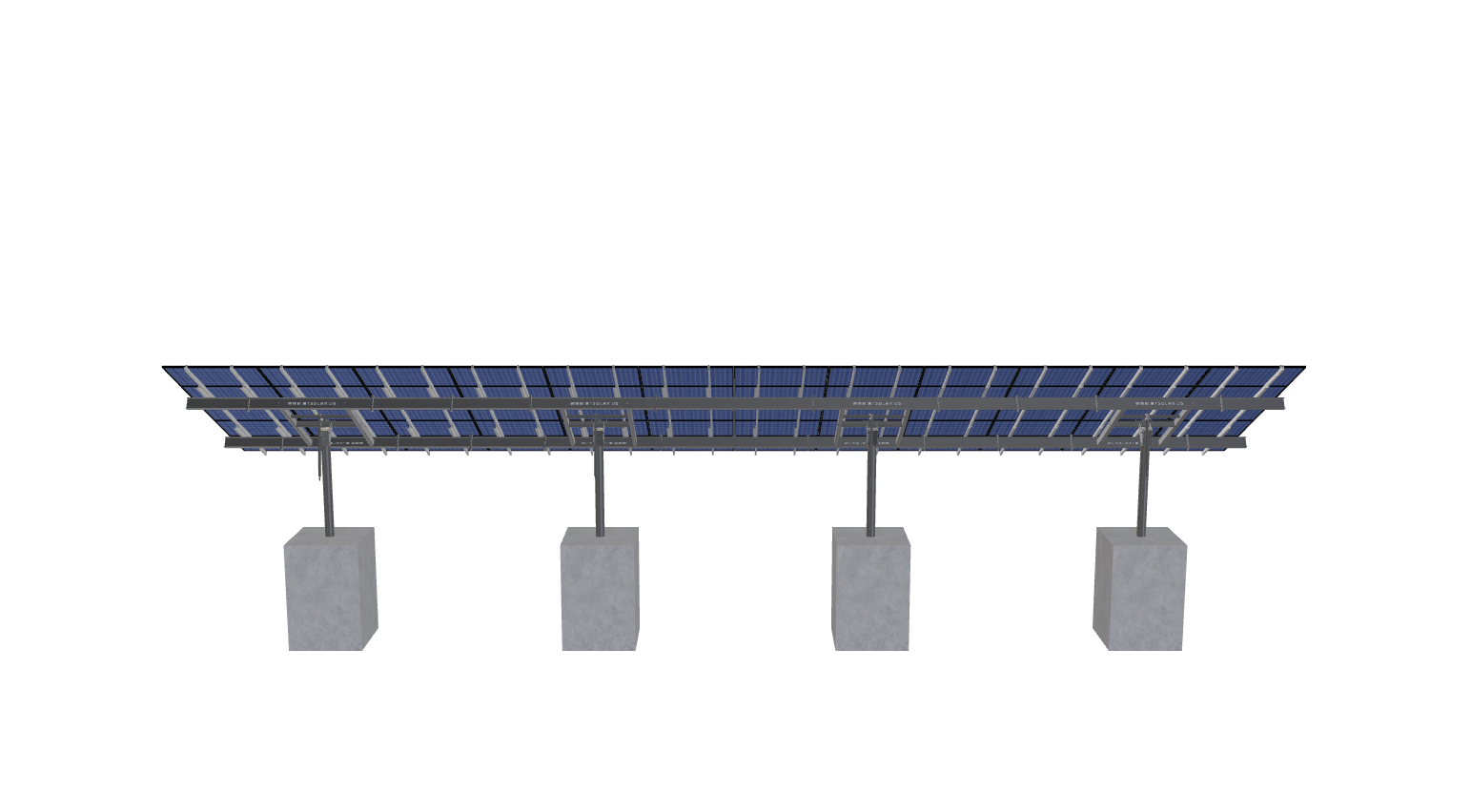

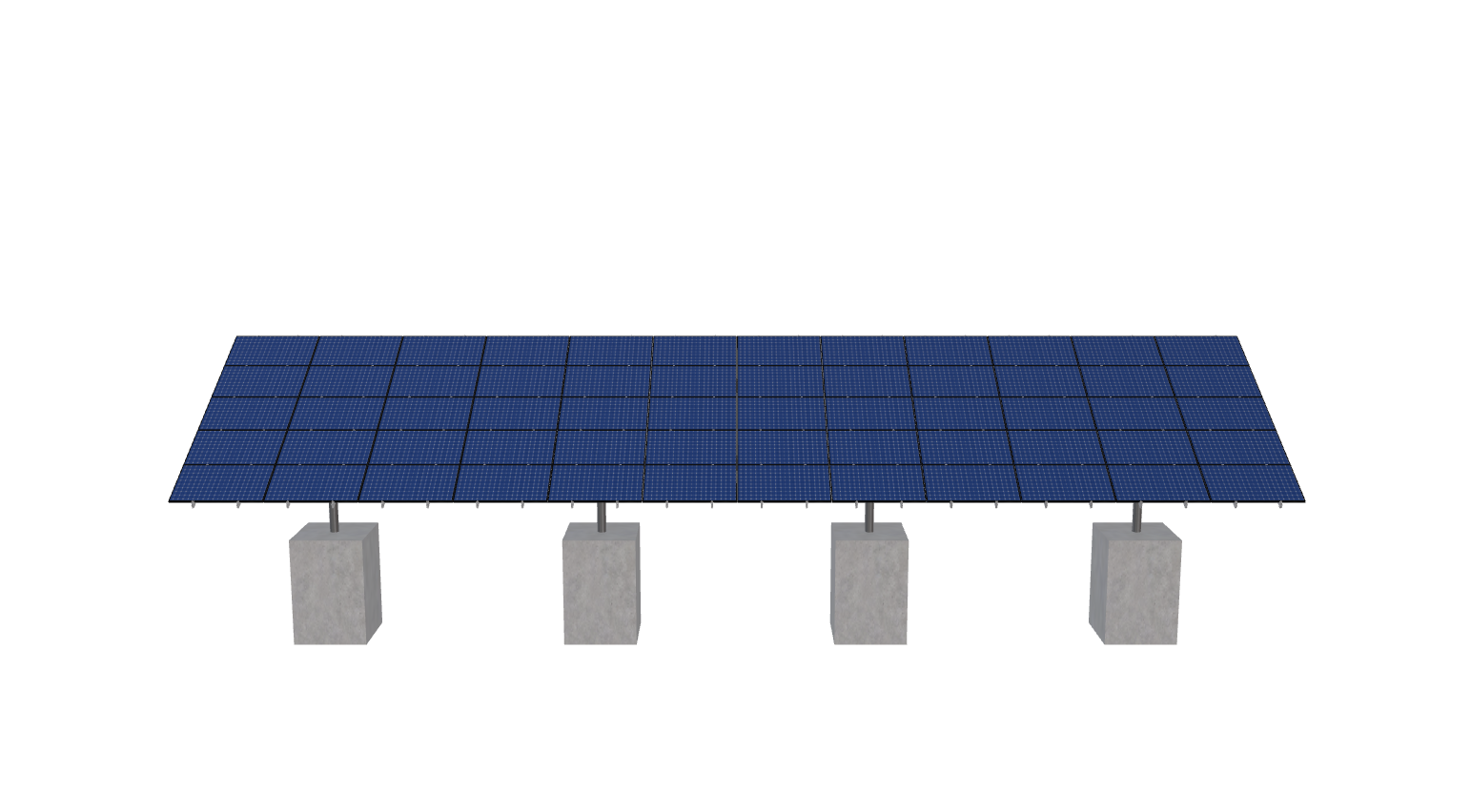

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.8 inches by 39.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-17-8TOP-XD-45-L-5Hx12W-JJ3L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.8 inches by 39.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4588.28 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-17-8TOP-XD-45-L-5HX12W-JJ3L

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

17.00

POLE HEIGHT

7.04

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

29.00

CANTILEVER

792.00

GROUND CLEARANCE

3.00

NO POLES

4.00

MODULE AREA

1113.33

ARRAY WIDTH

66.80

ARRAY HEIGHT

16.67

RAIL LENGTH

200.00

MODULE LENGTH

65.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

66.00

GROUND TO TOP

11.03

PROJECTED PANEL HEIGHT

7.98

PROJECT ID

MTSOLAR, 9J2C00BEF48G

SITE ADDRESS

ELIZABETHTOWN, NC, 28337, USA

MODULE WIDTH

39.50

NUMBER ROWS

5.00

NUMBER COLUMNS

12.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

130.00

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

22892.76

TOTAL WEIGHT

4588.28

TOTAL PALLETS

4.00
