MTSOLAR_Alex-3×3

$3,968.79

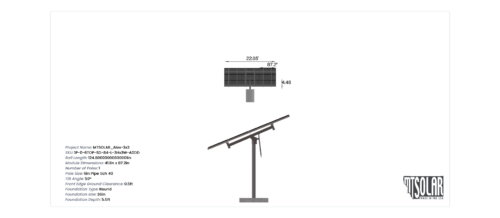

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

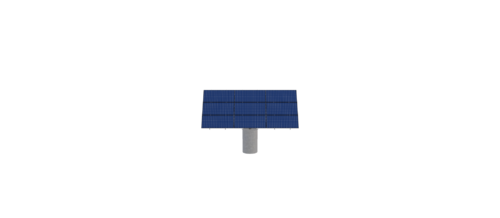

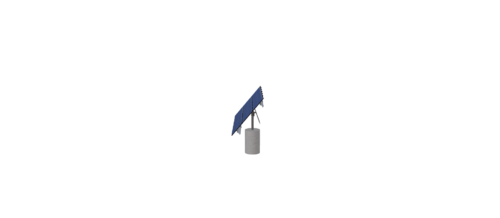

See 3D Model Here

SKU: 1P-0-6TOP-SD-84-L-3Hx3W-A0DD Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 733.88 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-84-L-3HX3W-A0DD

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

4.48

WING SPAN

84.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

50.00

CANTILEVER

258.00

GROUND CLEARANCE

0.50

NO POLES

1.00

MODULE AREA

229.32

ARRAY WIDTH

22.05

ARRAY HEIGHT

10.40

RAIL LENGTH

124.80

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

8.47

PROJECTED PANEL HEIGHT

7.97

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

41.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME
DESIGNER EMAIL

CONTACT@JEREMYCLEMONS.COM

DESIGNER PHONE
PROJECT ID

MTSOLAR, ALEX-3X3

SITE ADDRESS

1270, LOWER, SWEET, GRASS, RD, BIG, TIMBER, MT, 59011, USA

MODULE WIDTH

41.10

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

3968.79

TOTAL WEIGHT

733.88

TOTAL PALLETS

1.00
