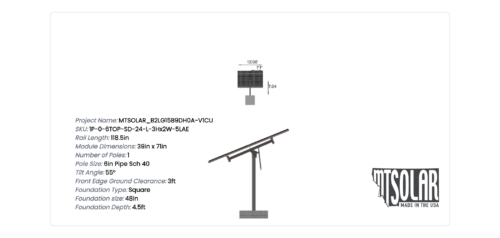

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 39 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

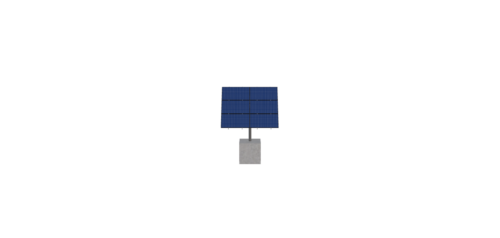

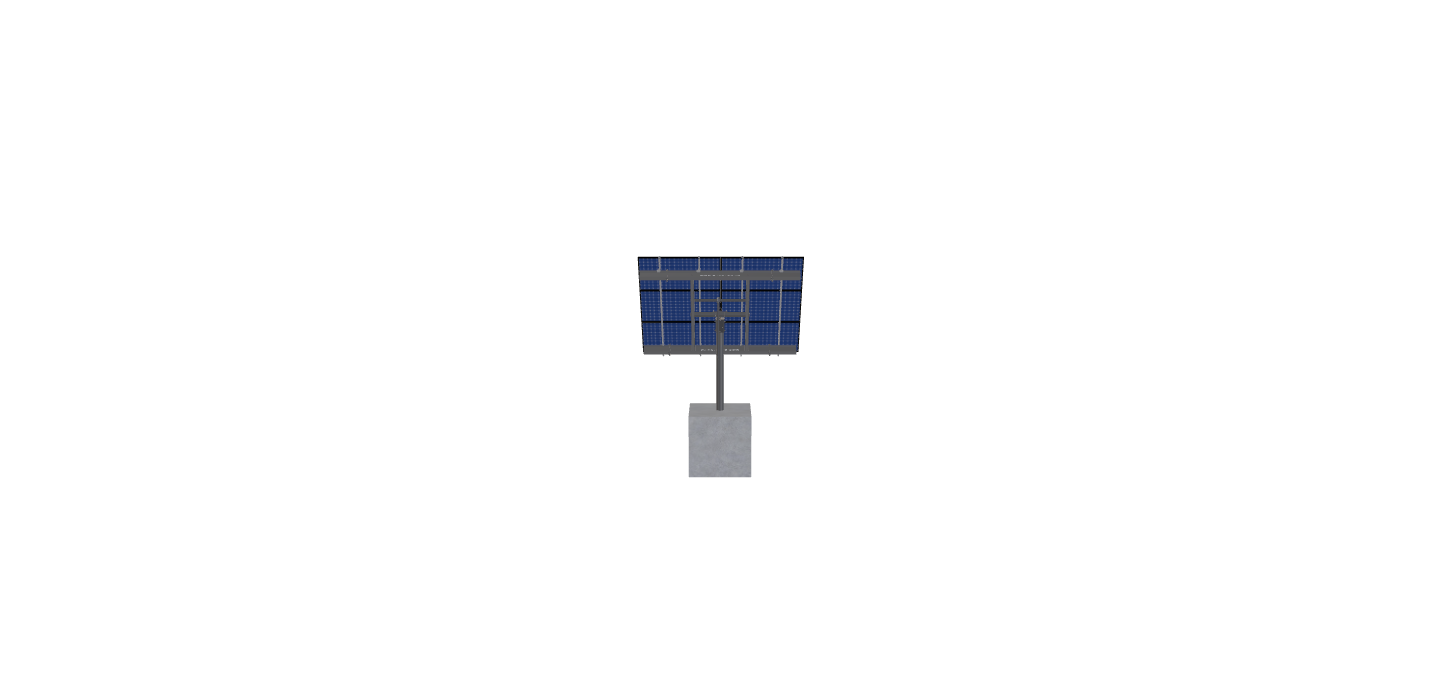

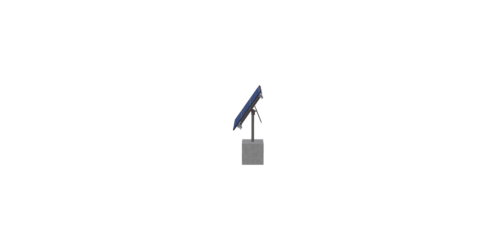

See 3D Model Here
MTSOLAR_B2LG15B9DH0A-V1CU
$3,360.58
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 39 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 548.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-3HX2W-5LAE |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.04 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 118.50 |
| ARRAY WIDTH | 12.00 |
| ARRAY HEIGHT | 9.88 |
| RAIL LENGTH | 118.50 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 11.09 |
| PROJECTED PANEL HEIGHT | 8.09 |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | DAIMON, VUKOOY |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 720-263-2324 |
| PROJECT ID | MTSOLAR, B2LG15B9DH0A-V1CU |
| SITE ADDRESS | 2719, WILD, WAGONER, TRAIL, DUMONT, CO, 80436, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3200.55 |
| TOTAL WEIGHT | 548.84 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/81cb6c2a-72bf-4758-aaca-ae4b505b7a4b.pdf |
|
| ID | 9255.00 |
| 3D Solar link |
