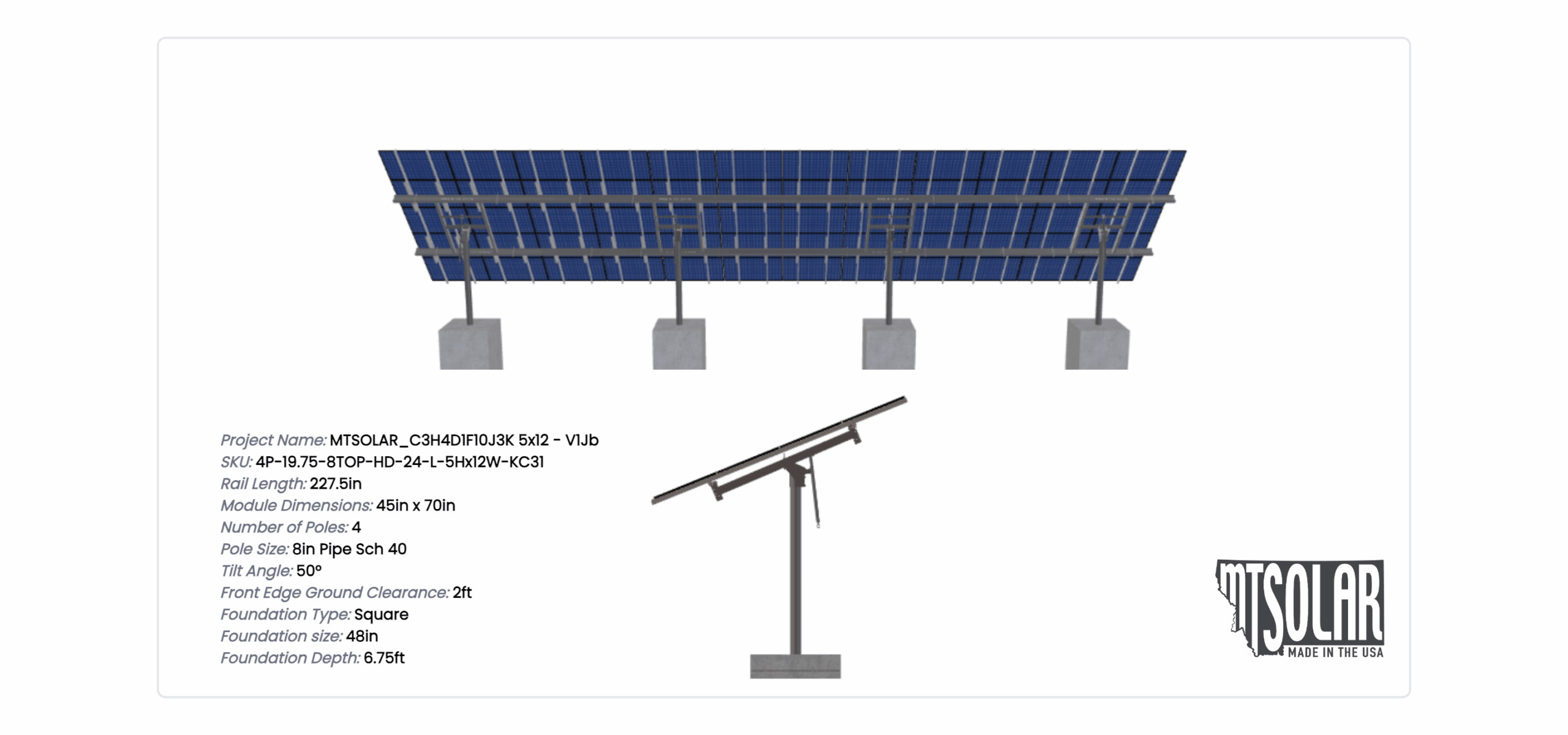

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 45 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

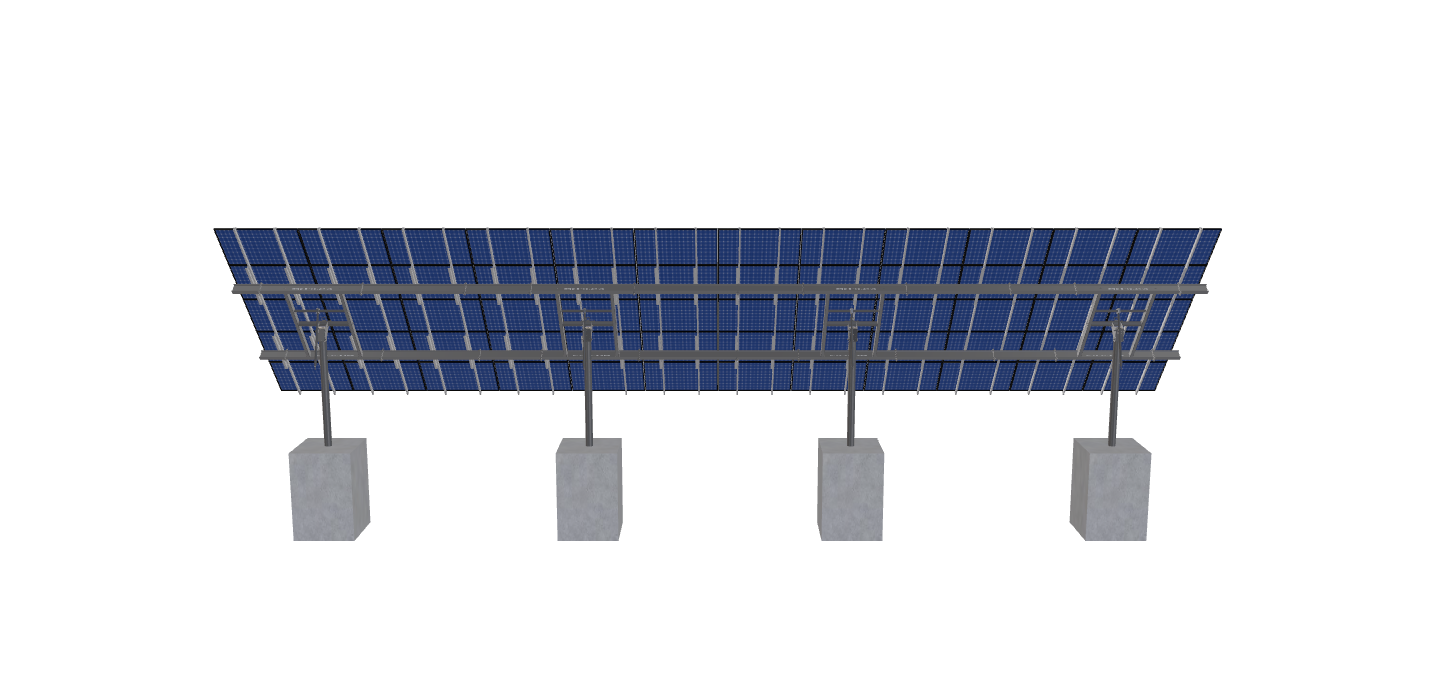

See 3D Model Here
MTSOLAR_C3H4D1F10J3K 5×12 – V1Jb
$22,036.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 45 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4249.5 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-24-L-5HX12W-KC31 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.26 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1346.04 |
| ARRAY WIDTH | 71.00 |
| ARRAY HEIGHT | 18.96 |
| RAIL LENGTH | 227.50 |
| MODULE LENGTH | 70.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 16.52 |
| PROJECTED PANEL HEIGHT | 14.52 |
| WIND SPEED OVERRIDE | 106.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | DARREN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 8025222381.00 |
| PROJECT ID | MTSOLAR, C3H4D1F10J3K, 5X12, -, V1JB |
| SITE ADDRESS | FRANCONIA, NH, USA |
| MODULE INFO | TRINA, 420 |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 22036.80 |
| TOTAL WEIGHT | 4249.50 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/6decc667-7f92-44e4-bf71-7394449fb4f4.pdf |
|
| ID | 12686.00 |
| 3D Solar link |
