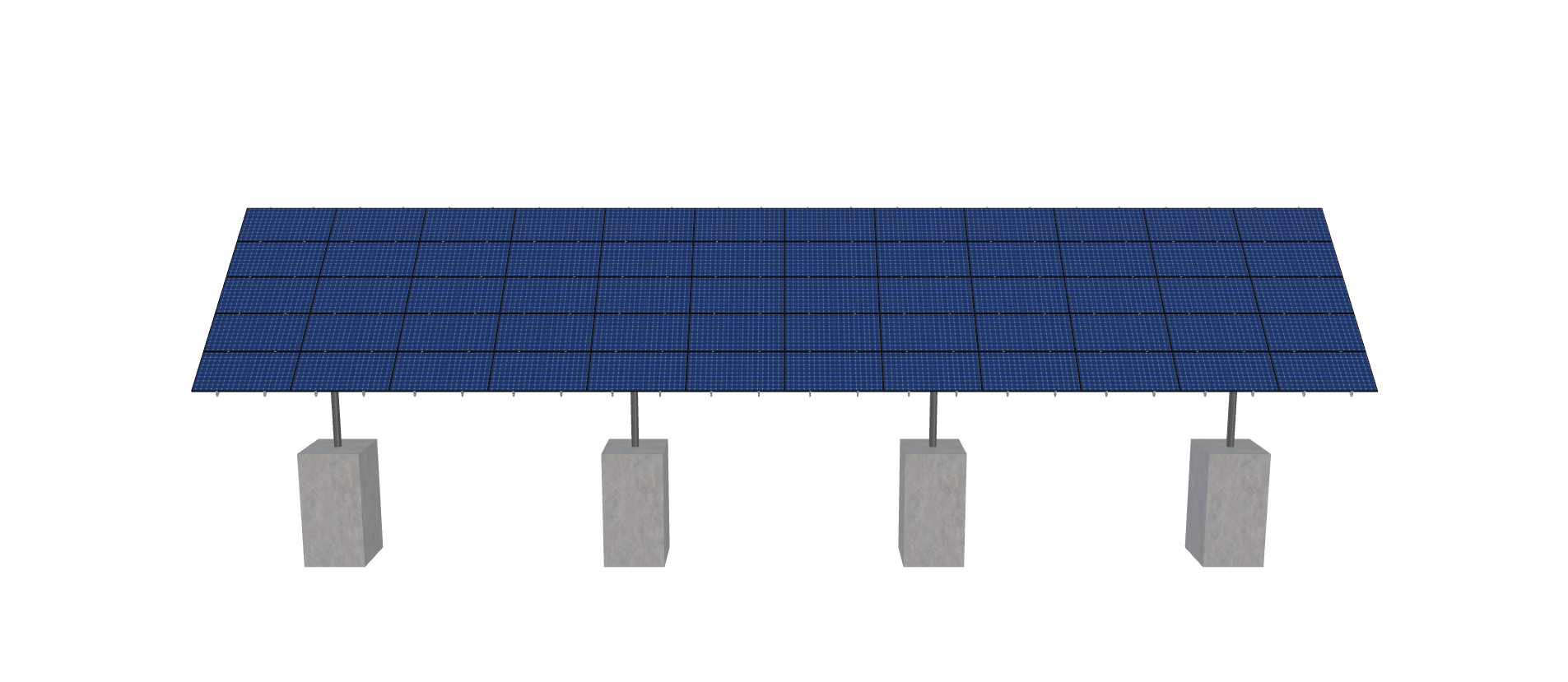

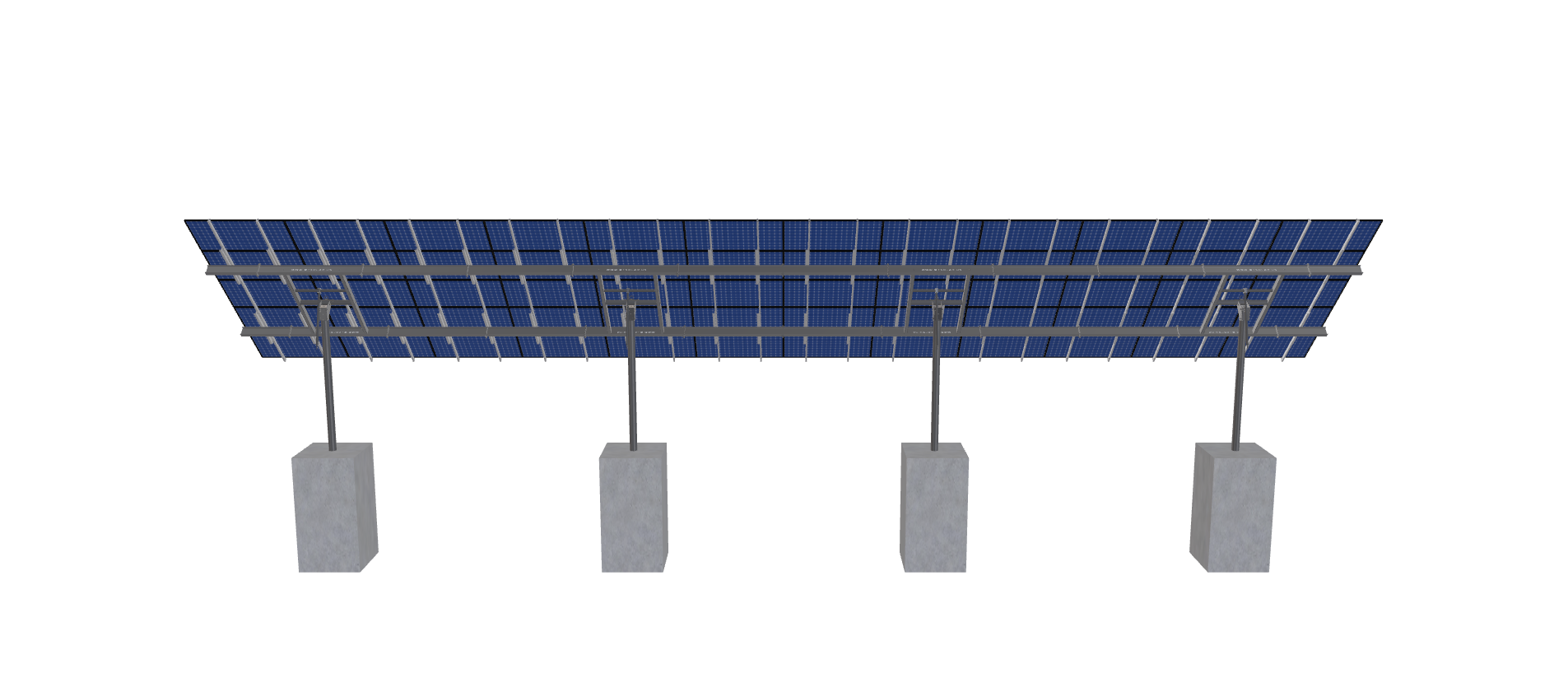

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_CD9K90IBAJBI-John 5 x 12 v2
$25,790.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5044.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-10TOP-XD-45-L-5HX12W-E5H5 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.09 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1438.30 |
| ARRAY WIDTH | 83.44 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.85 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 17.19 |
| PROJECTED PANEL HEIGHT | 12.19 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, CD9K90IBAJBI-JOHN, 5, X, 12, V2 |
| SITE ADDRESS | 55, CHAPMAN, LN, GALES, FERRY, CT, 06335, USA |
| MODULE INFO | SOLAREVER, USA:, SE-166*83-450M-144, (35MM) |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 126.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 25790.63 |
| TOTAL WEIGHT | 5044.28 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/ce82a8d4-f6db-4cfd-a307-f2d4aa539a9a.pdf |
|
| ID | 12469.00 |
| 3D Solar link |
